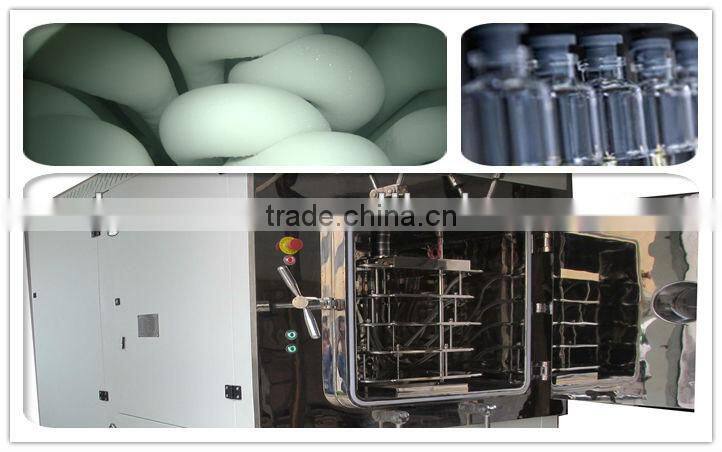

Laboratory Freeze Drying Machine-4KG Capacity for Pharmaceutical Lab Lyophilizer
US$ 600,000 - 900,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Freeze Drying Equipment
Place of Origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Laboratory Freeze Drying Machine-12KG Capacity for Pharmaceutical-lab LyophilizerUS$ 40,000 - 70,000MOQ: 1 Set -
500KG Freeze Dryer for Pharmaceutical & BiologicalUS$ 300,000 - 550,000MOQ: 1 Set
-
Freeze Drying Machine /Vacuum Freeze DryerNegotiableMOQ: 1 Set
-
Lyophilizer Freeze Dryer 400 Kg Capacity for PharmaceuticalUS$ 250,000 - 450,000MOQ: 1 Set
-
Lyophilizer -500KG Capacity for PharmaceuticalUS$ 300,000 - 550,000MOQ: 1 Set
Condition
New
Type
Freeze Drying Equipment
Place of Origin
Shanghai, China
Brand Name
LYOMAC
Model Number
lyopro-0.2
Voltage
380-460V
Power(W)
4
Dimension(L*W*H)
1000*850*1400
Weight
400kg
Certification
CE
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
Description
- Either for tray loading bulk material, and vial production;
- Drying capacity 4L;
- Shelf temperature and chamber vacuum are controllable
Features
- Shelf temperature range from -55 °C~80 °C, and regulatable for processoptimization or development before industrial production.
- Vacuum can be regulatable, by clean air injet, or chamber isolation valve operation, this can accelerate drying process.
- Vial rubber cap closing under vacuum by hydraulic stoppering mechanism.
- Fully stainless steel fabrication, easily clean.
- Both vial and trays can be loaded.
- All critical system backup design to avoid cycle collapsed during process

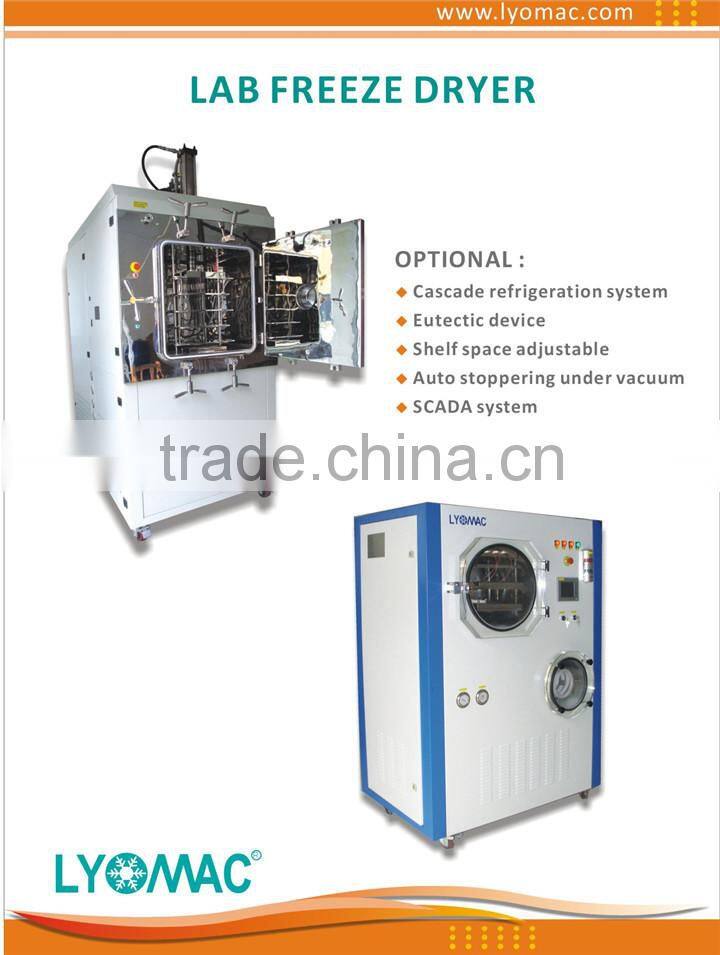

Optional System/Part
- CIP(cleaning in place) and SIP(Sterilization in place) system.
- Computer based SCADA system, all data can be recorded by table or curve type, easily print out for preservation.
- Adjustable shelf space mechanism.
- Vial stoppering system.
Specification List
Type |
LYOPRO-0.2 |
LYOPRO-0.4 |
LYOPRO-0.6 |
Shelf area (m2) |
0.24 |
0.40 |
0.60 |
Shelf size (L*W*T)(mm) |
400*300*13 |
450*300*13 |
500*300*13 |
Useable Shelf No. |
2 |
3 |
4 |
|
Vial loading quantity Φ16 Φ22 |
980 500 |
1660 875 |
2460 1300 |
Inter. Shelf distance (mm) * |
100 |
100 |
100 |
Ice capacity (KG) |
4 |
8 |
10 |
Shelf ultimate cooling temperature(°C)(air/water/cascade cooling system) |
-45/-50 /-60 |
-45/-50 /-60 |
-45/-50 /-60 |
Condenser ultimate cooling temperature(°C) (air/water/cascade cooling system) |
-60/-70 /-80 |
-60/-70 /-80 |
-60/-70 /-80 |
Ultimate vacuum(Pa) |
≤1.0 |
≤1.0 |
≤1.0 |
Installation dimension(L*W*H)(mm) |
100*950*1400 |
2000*1200*2400 |
2100*1200*2600 |
Weight(Kg) |
600 |
1000 |
1500 |
Power(KW) |
4 |
5 |
7 |
