BBZ WTZK-50-C Adjustable Setpoint Marine Pressure Type Temperature Controlled on off Switch

BBZ WTZK-50-C Adjustable Setpoint Marine Pressure Type Temperature Controlled on off Switch photo-1
BBZ WTZK-50-C Adjustable Setpoint Marine Pressure Type Temperature Controlled on off Switch photo-2
BBZ WTZK-50-C Adjustable Setpoint Marine Pressure Type Temperature Controlled on off Switch photo-3
BBZ WTZK-50-C Adjustable Setpoint Marine Pressure Type Temperature Controlled on off Switch photo-4
BBZ WTZK-50-C Adjustable Setpoint Marine Pressure Type Temperature Controlled on off Switch photo-5
BBZ WTZK-50-C Adjustable Setpoint Marine Pressure Type Temperature Controlled on off Switch photo-6
US$ 10 - 50 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
BBZ
Model Number:
BBZ WTZK-50-C
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai Ningbo Lianyungang
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name BBZ
Model Number BBZ WTZK-50-C
Product Description

BBZ WTZK-50-C Adjustable setpoint Marine pressure type temperature controlled on off switch


Product Application

BBZ WTZK-50-C  Adjustable setpoint Marine pressure type temperature controlled on off switch with capillary temperature packet sensor. It can be used for copper and copper alloy corrosion-free gas, steam and other gases media or liquid medium.

BBZ WTZK-50-C  Adjustable setpoint Marine pressure type temperature controlled on off switch setpoint is adjustable from -60 ~ 170 ℃.

BBZ WTZK-50-C  Adjustable setpoint Marine pressure type temperature controlled on off switchwith cast aluminum housing for waterproof.

BBZ WTZK-50-C  Adjustable setpoint Marine pressure type temperature controlled on off switchmeets the marine conditions.

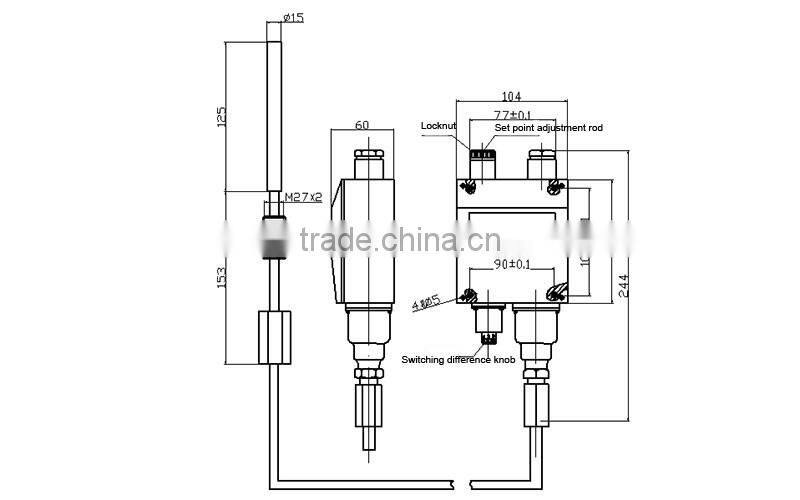

Dimension

Technical Parameters

Ambient temperature
see spec.
Housing protection grade
IP44


Vibration resistance
2~25Hz 1.6mm 25~100Hz 40m/s2


Contact capacity
AC 380V 3A (resistive)
DC 220V 2.5A (resistive)

Repeatability error
see spec.
Mounting position
inclined 22.5 ° in each direction to work properly.
Capillary length
1,3,5,8,10,12m (No. 5 specification in the table 8m) capillary length must be specified when ordering.

Specification

Switching difference adjustable

No.
setpoint adjustment ℃
switching difference range℃
ambient temperature ℃
setpoint error ±℃
repeatability error ℃
1
-60~- 30
3~5
-25~55
4
2
2
-40~- 10
higher than the controlled temperature 3 ℃, not less than the minimum -25 ℃, up to 55 ℃
2
3
-25~0
4
-15~15
5
10~40
-25~55
6
40~80
-25 to below the controlled temperature 3 ℃, highest to 55 ℃
7
60~100
-25~55
3
3
8
80~120
9
110~150
5~55
10
130~170
