BBZ TXK-103 Temperature Controlled on off Switch for Corrosive Media With Stainless Temperature Packet Protective Sheath

BBZ TXK-103 Temperature Controlled on off Switch for Corrosive Media With Stainless Temperature Packet Protective Sheath photo-1
BBZ TXK-103 Temperature Controlled on off Switch for Corrosive Media With Stainless Temperature Packet Protective Sheath photo-2
BBZ TXK-103 Temperature Controlled on off Switch for Corrosive Media With Stainless Temperature Packet Protective Sheath photo-3

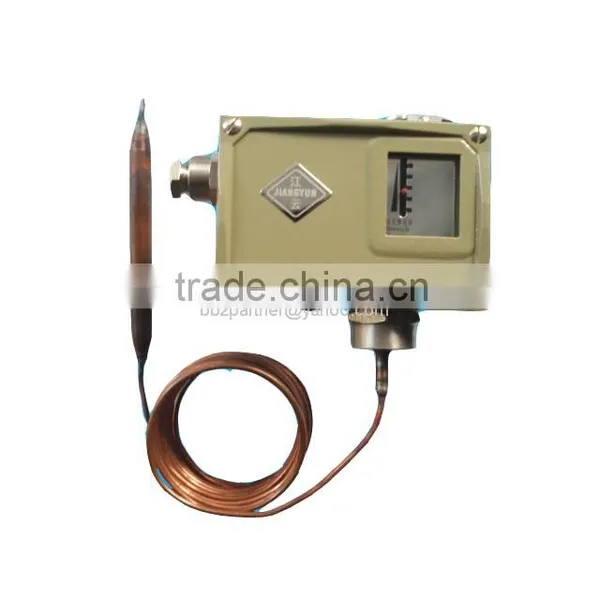

BBZ TXK-103 Temperature Controlled on off Switch for Corrosive Media With Stainless Temperature Packet Protective Sheath photo-4
BBZ TXK-103 Temperature Controlled on off Switch for Corrosive Media With Stainless Temperature Packet Protective Sheath photo-5
BBZ TXK-103 Temperature Controlled on off Switch for Corrosive Media With Stainless Temperature Packet Protective Sheath photo-6
US$ 50 - 249 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
BBZ
Model Number:
BBZ TXK-103
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai Ningbo Lianyungang
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name BBZ
Model Number BBZ TXK-103
Product Description

BBZ TXK-103 Temperature controlled on off switch for corrosive


media with stainless temperature packet protective sheath


Product Application

BBZ TXK-103 Temperature controlled on off switch  with straight top structure and capillary temperature packet sensor can be used for flowing neutral gas and medium, if the medium is corrosive, when stalling stainless temperature packet protective sheath is optional to cover outside the copper temperature packet.

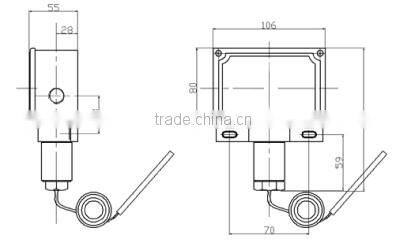

Dimension

Technical Parameters

Operating viscosity
1x10-3 m2 /s
Switching element
imported micro switch
Explosion-proof grade
Exd IIB T4~T6
Explosion-proof certificate number
GYB071331
Protection Class
IP65 (in line with DIN40050, and equivalent to IP65 in GB4208 )
Ambient temperature
-20 ℃ -100℃
Medium temperature
0℃-300℃
Vibration resistance
40m/s2
Repeatability error
≤1.5%
Contact capacity
Max480VAC, ≤20A
Max. 250V DC, ≤15A

Specification


Setpoint adjustment range (℃)
Switching difference (℃)
Maximum Operating Temperature (℃)
Number of switching cycles / min
Pressure sensor material
10~40
4
70
30
Housing
sensing element
30~70
4
95
Brass
Stainless

Steel

60~120
5
180
110~180
5
250
170~280
5
350
