Home > Electrical & Electronics > Transmitter > Pressure Transmitter > 4~20mA Output BBZ Gas Detector Pressure Transmitter

4~20mA Output BBZ Gas Detector Pressure Transmitter

4~20mA Output BBZ Gas Detector Pressure Transmitter thumbnail-3

4~20mA Output BBZ Gas Detector Pressure Transmitter thumbnail-4

4~20mA Output BBZ Gas Detector Pressure Transmitter thumbnail-5

4~20mA Output BBZ Gas Detector Pressure Transmitter thumbnail-6

4~20mA Output BBZ Gas Detector Pressure Transmitter photo-1

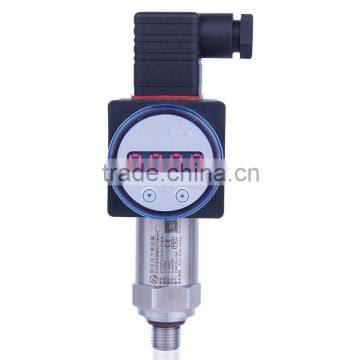

4~20mA Output BBZ Gas Detector Pressure Transmitter photo-2

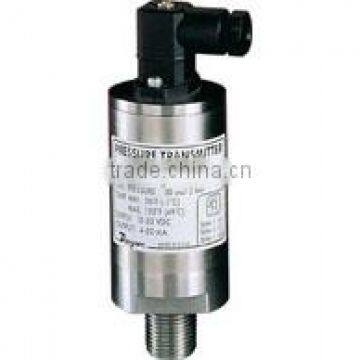

4~20mA Output BBZ Gas Detector Pressure Transmitter photo-3

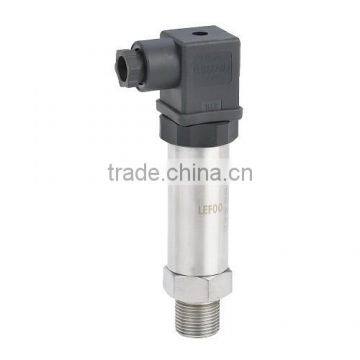

4~20mA Output BBZ Gas Detector Pressure Transmitter photo-4

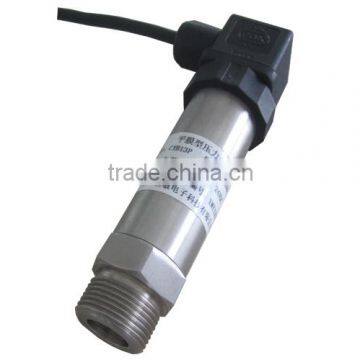

4~20mA Output BBZ Gas Detector Pressure Transmitter photo-5

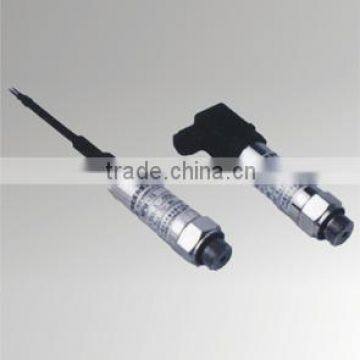

4~20mA Output BBZ Gas Detector Pressure Transmitter photo-6

US$ 45 - 306 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

BBZ

Model Number:

BBZ

Contact Supplier Request Quote Chat Now

Henan BBZ Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Lianyungang Tianjin Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name BBZ

Model Number BBZ

Brief Introduction

4~20mA output BBZ gas detector pressure transmitter is made integrated structure by using high quality thick-film ceramic sensors and special amplified circuits. The output of Integrated BBZ-B3 ceramic pressure transmitter is configured to 4~20mA current loop, or 0~5Vdc, or 0~10Vdc, or 1~5Vdc voltage signals. The pressure diaphragm of this transmitter is made from ceramic material, while its wetted parts is made from stainless steel.

Features

Many measuring pressure range

Wide application scope and long service life

Automatic testing and laser trimming compensating zero & sensitivity

High accuracy long-term stability

Good ability on anti corrosion & anti-impact.

Product Parameter

pressure medium	gas or liquid compatible with ceramic and stainless steel
pressure ranges	0~1bar...200bar
overload pressure	150%FS
output signal	4~20mA, 0~5V, 0~10V, 1~5V
accuracy	0.25%FS, 0.5%FS(standard)

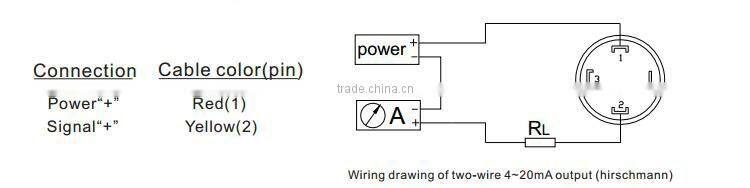

load resistance	R =(U-12V)/0.02A(4~20mA current output) U—loop voltage (V)
long-term stability	<0.2%FS/year
supply voltage	12~36VDC
compensated temperature range	0~70℃
operating temperature range	-30~95℃
storage temperature range	-40~100℃
temperature coefficient of zero	0.3%FS/10℃
temperature coefficient of span	0.3%FS/10℃
insulation resistance	100MΩ@50VDC
process connection	G1/4 or others
electrical connection	hirschmann connector or others
material of wetted part	1Cr18Ni9Ti
material of pressure membrane	ceramic
sealing	n-Butyronitrile or fluoro-rubber sealing ring
material of housing	1Cr18Ni9Ti
