Low Price BBZ - B2 Process Sanitary Pressure Transmitter

Henan BBZ Automation Equipment Co., Ltd.
Low Price BBZ - B2 Process Sanitary Pressure Transmitter thumbnail-1
Low Price BBZ - B2 Process Sanitary Pressure Transmitter thumbnail-2
Low Price BBZ - B2 Process Sanitary Pressure Transmitter thumbnail-3
Low Price BBZ - B2 Process Sanitary Pressure Transmitter thumbnail-4
Low Price BBZ - B2 Process Sanitary Pressure Transmitter thumbnail-5
Low Price BBZ - B2 Process Sanitary Pressure Transmitter thumbnail-6
Low Price BBZ - B2 Process Sanitary Pressure Transmitter photo-1

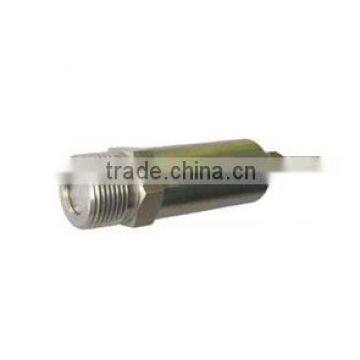

Low Price BBZ - B2 Process Sanitary Pressure Transmitter photo-2
Low Price BBZ - B2 Process Sanitary Pressure Transmitter photo-3
Low Price BBZ - B2 Process Sanitary Pressure Transmitter photo-4

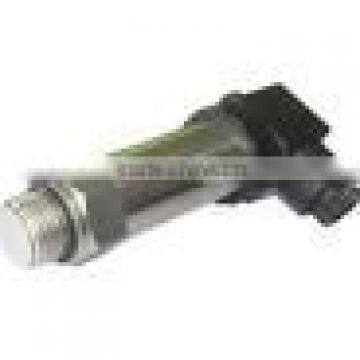

Low Price BBZ - B2 Process Sanitary Pressure Transmitter photo-5

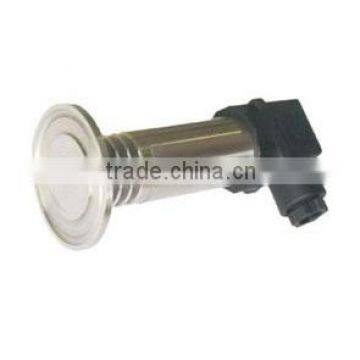

Low Price BBZ - B2 Process Sanitary Pressure Transmitter photo-6
US$ 9.9 - 192.6 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
BBZ
Model Number:
BBZ
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Lianyungang Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name BBZ
Model Number BBZ
Product Description

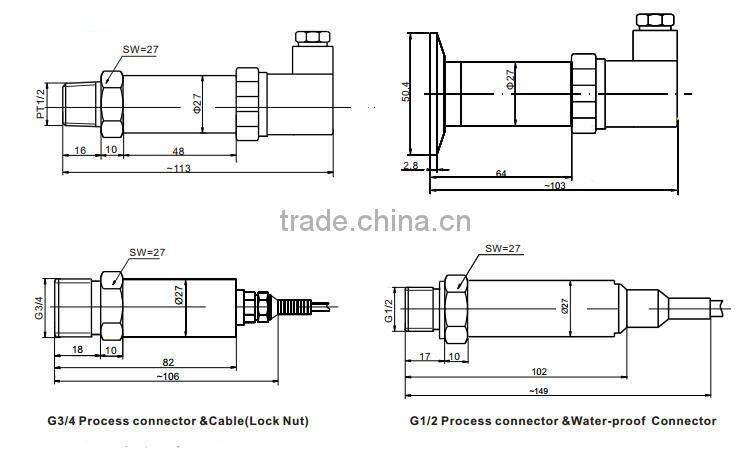

Low price BBZ - B2 process sanitary pressure transmitter uses piezoresistive silicon chip as sensing element. UPB2 has clamping type, M21×1.5 thread type, and flange type for options. Its output signal can be made standard voltage output signal, or, current output signal, or frequency output signal.



Features

Pressure ranges -1...0 0.4...600bar

Flush membrane structure without input pressure hole & cavity

Automatic testing and laser trimming compensating

High accuracy high strength, sanitary type, against fouling, dimensions can be customized

Has different output signals

Pressure type: gauge pressure, absolute pressure, sealed gauge pressure




Product Parameter
pressure medium
gas or liquid compatible with stainless steel
pressure ranges
-1...0 0.4...600bar
overload pressure
150%FS
output signal
4~20mA, 0~5V, 0~10V, 1~5V
accuracy
0.25%FS, 0.5%FS(standard)
load resistance
R =(U-12V)/0.02A(4~20mA current output) U—loop voltage( V )
long-term stability
<.2%FS/year
supply voltage
12~36VDC
compensated temperature range
-10~70℃
operating temperature range
-30~+85℃
storage temperature range
-40~+125℃
temperature coefficient of zero
0.3%FS/10℃
temperature coefficient of span
0.3%FS/10℃
insulation resistance
100MΩ@50VDC
process connection
G1/2 or others

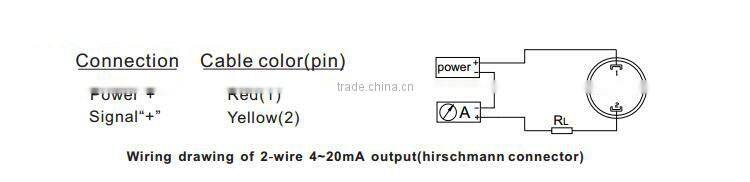

electrical connection
hirschmann connector or others
material of wetted part
316 stainless steel
material of pressure membrane
316L stainless steel
material of housing
1Cr18Ni9Ti stainless steel
sealing
n-Butyronitrile or fluoro-rubber sealing ring
Applications

This product isand is suitable for pressure measurement in general industry applications.
