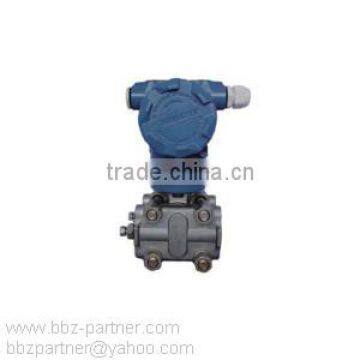

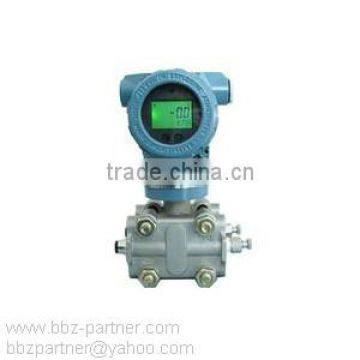

BBZ 1151 Solid sensor differential pressure level transmitter
Product Application
Excellent measurement performance for differential pressure, pressure, liquid level and flow measurement
Specification
Product features
1. Excellent measurement performance for differential pressure, pressure, liquid level and flow measurement;
2. High accuracy: digital accuracy±0.05%; simulation accuracy:±0.5%～±0.1%F•S;
3. Range and zero external continuously adjustable, Range ratio 100: 1
4. Positive transfer can reach 500%, negative transfer can reach 600%;
5. Good stability: 0.25% 60 months;
6. Overpressure resistant;
7. Solid sensor design;
8. Full series of unified structure and excellent interchangeability;
9. Diaphragm material contacting medium is optional;
10. Low pressure casting aluminum alloy housing;
11. Measurement speed: 0.2S
12. Compact, full stainless steel flange, easy for installation;
13. The process connection is compatible with other products to achieve optimum measurement;
14. with smart transmitters of 16 digit computers;
15. Standard 4-20mA with digital signal based on HART protocol, remote control;
16. Support upgrade of field bus and field control technology;
Description
BBZ 1151 Solid sensor differential pressure level transmitter adopts all key material, components and fittings from abroad or joint venture. The whole product is rigorously assembled and tested with features of advanced design, different specifications and easy installation.
The appearance of BBZ 1151 integrates structural advantages of two kinds of transmitters (Rosemount 3051 and Yokogawa EJA) the current most popular and widely used and has a strong versatility and replace capabilities. This series products deliver compact design and also HART field bus protocol intelligent feature.
