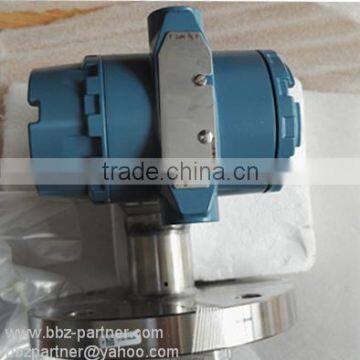

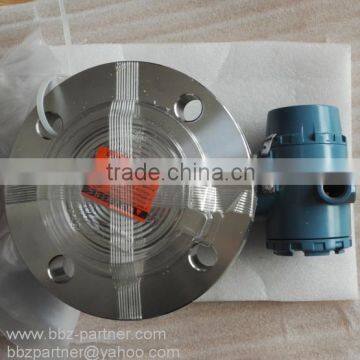

BBZ 1151 3351LT flange differential pressure liquid level transmitter

BBZ 1151 3351LT flange differential pressure liquid level transmitter

Product Application

1.BBZ 1151 3351 LT flange differential pressure liquid level transmitter is widely for level measurement of liquid, gas and steam in petroleum, chemical, sewage treatment, urban water supply, machinery, metallurgy, electric power and scientific research fields.

2.In addition, it is suitable for pressure measurement and control of various situations in all weather environment and various corrosion liquid, gas, vapor.

Features of analog type

1. High accuracy;

2. Adjustable flange and zero point;

3. Good stability;

4. Positive transfer up to 500%; negative transfer up to 600%;

5. Two-wire system;

6. Adjustable damping; overpressure resistant;

7. Solid sensor design;

8. No mechanical movable part and less maintenance;

9. Full series of unified structure and excellent interchangeability;

10. Contacting medium diaphragm material is optional;

11. High overpressure resistant of monolateral;

12. Low pressure casting aluminum alloy housing.

Features of intelligent type

1. Excellent measurement performance: for measurement of pressure, differential pressure, liquid level and flow;

2. Digital accuracy: ±0.05%

3. Simulation accuracy: ±0.75%～±0.1% F•S

4. Full performance: ±0.25 F• S;

5. Stability: 0.25% 60 months;

6. Range ratio: 100: 1

7. Measurement rate: 0.2S

8. Compact, full stainless steel flange, easy installation;

9. The process connection is compatible with other products to achieve optimum measurement

10. The only sensor with H alloy sheath in the world to achieve excellent cold, heat stability.

11. Standard 4-20mA with digital signal based on HART protocol, remote control.

Description

BBZ 1151 3351LT flange differential pressure liquid level transmitter adopts capacitive pressure sensor for accurate pressure measurement for various containers. And there is plat flange and inserted flange.

With all key material, components and fittings from abroad or joint venture, BBZ 1151 3351LT flange differential pressure liquid level transmitter is rigorously assembled and tested with features of advanced design, different specifications and easy installation. The appearance of BBZ 1151 3351LT integrate structural advantages of two kinds of transmitters (Rosemount 3051 and Yokogawa EJA) the current most popular and widely used and has a strong versatility and replace capabilities. This series products deliver compact design and also HART field bus protocol intelligent feature.
