BBZ MC20CD-B flanged pilot pressure liquid level transmitter
Application
BBZ MC20CD-B flanged pilot pressure liquid level transmitter is particularly suitable for measurement of high temperature, corrosive liquids and sewage.
Specifications
Features
1. without contacting with measured medium, the sensor is of high reliability
2. Unique conversion circuit, stable performance
3. Overvoltage reverse polarity protection
4. Zero and full-scale adjustable on site
5. Good stability, better than 0.2% FS/Year
Product details

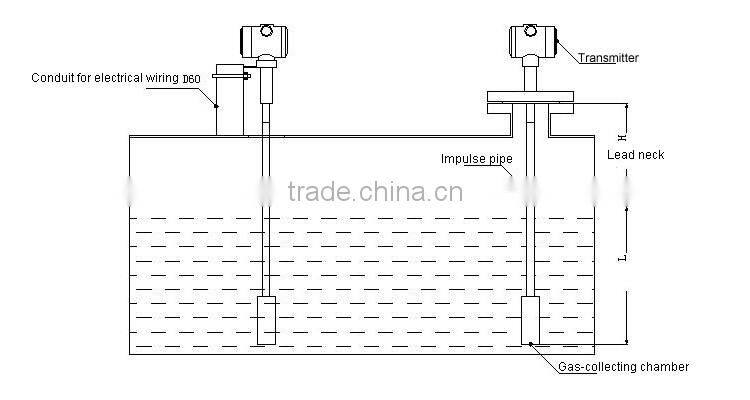

For BBZ MC20CD-B flanged pilot pressure liquid level transmitter, the sensor and the signal processing circuit inside the junction box, through the gas within the gas collector into the liquid in contact with the media, pressure passed on to the sensor by gas-guide tube, avoiding the sensor directly in contact with the measured medium, which is applicable for high temperature and strong corrosive condition and so on, effectively solve level measurement problems for high temperature and corrosive liquid and sewage.
BBZ MC20CD-B flanged pilot pressure liquid level transmitter select BBZ MC20B pressure transmitter as the pressure measurement, liquid level pressure signals collected by the gas cylinder, transmitting to pressure transmitter and pressure signal is converted to an output signal level.
