Home > Instruments & Meters > Meter for Liquid & Gas > Flow Meter > BBZ Threaded Digital Turbine Flow Meter

BBZ Threaded Digital Turbine Flow Meter

BBZ Threaded Digital Turbine Flow Meter thumbnail-3

BBZ Threaded Digital Turbine Flow Meter thumbnail-4

BBZ Threaded Digital Turbine Flow Meter photo-1

BBZ Threaded Digital Turbine Flow Meter photo-2

BBZ Threaded Digital Turbine Flow Meter photo-3

BBZ Threaded Digital Turbine Flow Meter photo-4

US$ 50 - 300 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

BBZ

Model Number:

BBZ

Contact Supplier Request Quote Chat Now

Henan BBZ Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Lianyungang Qingdao Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name BBZ

Model Number BBZ

Product Description

Introduction:

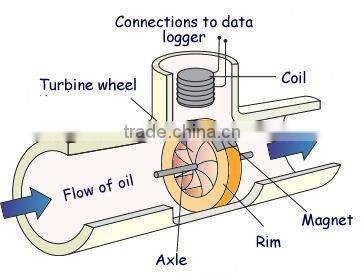

BBZ Threaded digital turbine flow meter is a precise flow measurement instrument and can be used to measure the flow and volume of liquid, supporting the corresponding flow totalizer instrument .. Explosion-proof design structure, this product can display the total flow, instantaneous flow and percentage of full scale flow.With long-lasting lithium battery, single-function table Totalizer battery life up to five years, multi-function display battery life up to 12 months. Threaded turbine flowmeter can display various units, like cubic meters, gallons, liters, standard cubic meters, the standard liter etc. Threaded turbine flowmeter can set a fixed pressure and temperature parameters to compensate for the gas. As for those occasions when pressure and temperature parameters change little , threaded turbine flow meter can be used to fix the compensation totalizer. If supporting the display instrument with a special function, It can used for quantitative control, excessive alarm and other functions as an ideal flow measurement and energy meter.

Specifications:

Nominal diameter(mm)	4、6、10、15、20、25、32、4
Range ratio	1:10; 1:15; 1:20
Joint structure and size	Threaded joint structure
Ambient temperature	－10～55℃
Relative temperature	5%～90%
Barometric pressure	86～106Kpa
Measured medium temperature	-20℃～120℃
Accuracy	±0.5%, ±1％
Signal Line Interface	Housman joints
Signal transmission distance	≤1000m
Signal transmission lines	STVPV3×0.3（three wire system）
Power supply	+12VDC 、+24VDC（optional）
Output signal	Pulse frequency output Low level≤0.8V High level ≥8V
Meter body	304 stainless steel
Protection grade	I P65
Explosion proof	Non-explosion-proof products

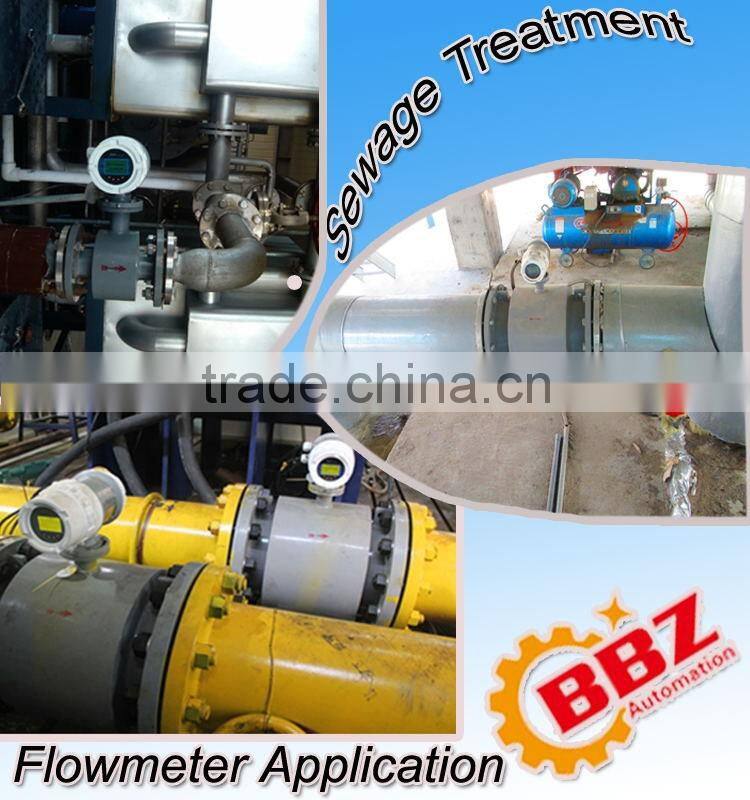

Application

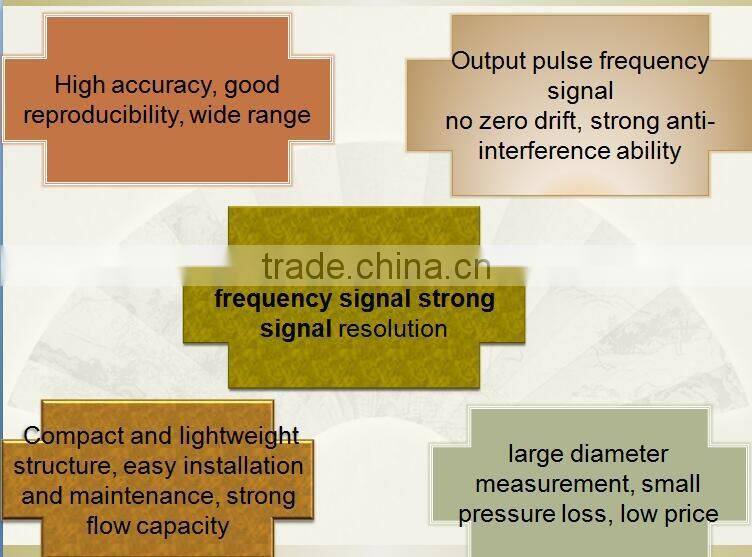

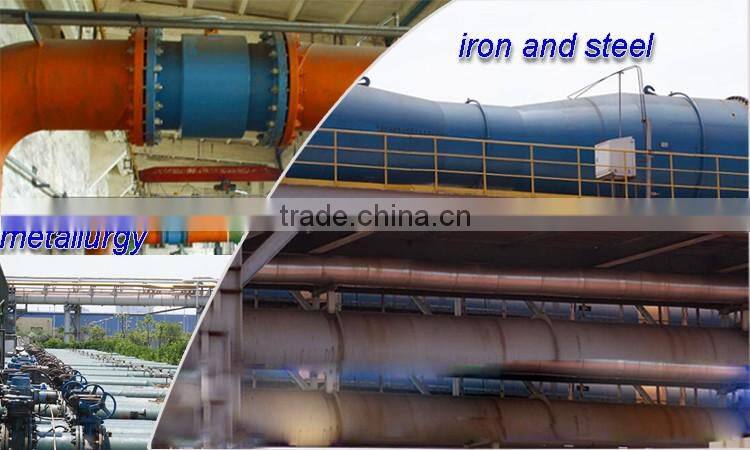

BBZ Threaded digital turbine flow meter Widely used in the measurement and control in petroleum, chemical, metallurgy, research and other fields. Equipped sanitary coupler with an clamp turbine flow meter, it can be used in the pharmaceutical industry. Simple structure, light weight, high precision, good reproducibility, responsive, easy installation and maintenance etc, the product also mainly used to measure the liquid medium whose kinematic viscosity less than 5 × 10-6m2 / s at the operation temperature, no fiber, particles and other impurities, no corrosion with the stainless steel 1Cr18Ni9Ti, 2Cr13 and corundum Al2O3 in closed conduits . As for the liquid whose kinematic viscosity greater than 5 × 10-6m2 / s , the smart turbine flowmeter can be used after real calibration.
