BBZ Intelligent Water Flow Faucet Meter Turbine With High Precision

BBZ Intelligent Water Flow Faucet Meter Turbine With High Precision thumbnail-1
BBZ Intelligent Water Flow Faucet Meter Turbine With High Precision thumbnail-2
BBZ Intelligent Water Flow Faucet Meter Turbine With High Precision thumbnail-3
BBZ Intelligent Water Flow Faucet Meter Turbine With High Precision photo-1
BBZ Intelligent Water Flow Faucet Meter Turbine With High Precision photo-2
BBZ Intelligent Water Flow Faucet Meter Turbine With High Precision photo-3
US$ 59 - 2,599 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
BBZ
Model Number:
BBZ
Contact Supplier Request Quote Chat Now
Henan BBZ Automation Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Lianyungang Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name BBZ
Model Number BBZ
Product Description

Introduction:

BBZ intelligent water flow faucet meter turbine with high precision can set a fixed pressure and temperature parameters to compensate for the gas. As for those occasions when pressure and temperature parameters change little , insertion turbine flow meter can be used to fix the compensation totalizer. If supporting the display instrument with a special function, It can used for quantitative control, excessive alarm and other functions as an ideal flow measurement and energy meter.

Features:

High accuracy, good reproducibility, wide range ;

Output pulse frequency signal, suitable for the connection between measurement of total volume and computer, no zero drift, strong anti-interference ability;

Available to high frequency signal (3-4kHz), strong signal resolution ;

Compact and lightweight structure, easy installation and maintenance, strong flow capacity;

Suitable for high pressure measurements, no holes on the meter body , easily made into high pressure type instrument;

Various special sensor types;

Suitable for large diameter measurement, small pressure loss, low price, taking it out from continuous flow, easy installation and maintenance

Specifications:

Nominal diameter(mm)
4、6、10、15、20、25、32、4 (Threaded)
Range ratio
1:10; 1:15; 1:20
Joint structure and size
Threaded joint structure
Ambient temperature
－10～55℃
Relative temperature　
5%～90%
Barometric pressure
86～106Kpa
Measured medium temperature　
-20℃～120℃
Accuracy
±0.5%, ±1％
Signal Line Interface
Housman joints
Signal transmission distance
≤1000m
Signal transmission lines
STVPV3×0.3（three wire system）
Power supply
+12VDC 、+24VDC（optional）
Output signal
Pulse frequency output
Low level≤0.8V
High level ≥8V
Meter body
304 stainless steel
Protection grade
I P65
Explosion proof
Non-explosion-proof products

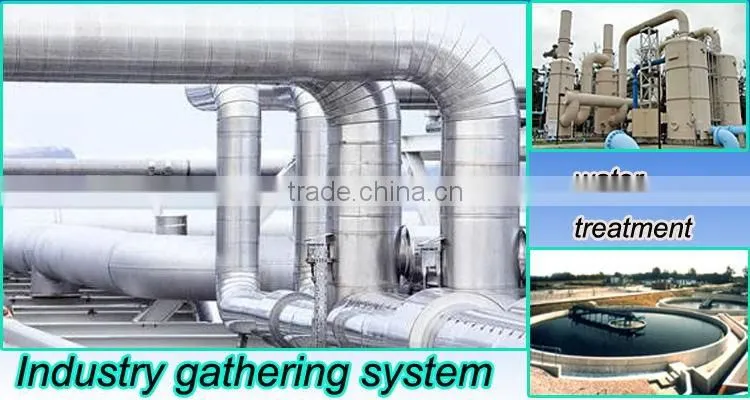

Application
Widely used in the measurement and control in petroleum, chemical, metallurgy, research and other fields.

Equipped with an clamp turbine flow meter with sanitary coupler , can be used in the pharmaceutical industry.

Related product

Portable VA 420 BBZ flange CO2 flowmeter with backlight display


BBZ-HHLWGY pulse output liquid turbine flow meter


BBZ thread type flowmeter edible oil turbine flow meter


Various gas flow meter bbz VA400 with 4~20 mA analog output

BBZ- MFC 300 Coriolis Mass Flowmeters


China made BBZ-SITRANS FX300 medical vortex flowmeter

FAQ
Packing & Delivery

Packing Details  :Wooden case or carton box with poly foam inside

Delivery Details : 2~3 weeks  after receiving your payment
