Various Gas Flow Meter Bbz VA400 With 4~20 mA Analog Output

Various Gas Flow Meter Bbz VA400 With 4~20 mA Analog Output thumbnail-1
Various Gas Flow Meter Bbz VA400 With 4~20 mA Analog Output thumbnail-2
Various Gas Flow Meter Bbz VA400 With 4~20 mA Analog Output thumbnail-3
Various Gas Flow Meter Bbz VA400 With 4~20 mA Analog Output thumbnail-4
Various Gas Flow Meter Bbz VA400 With 4~20 mA Analog Output thumbnail-5
Various Gas Flow Meter Bbz VA400 With 4~20 mA Analog Output thumbnail-6
Various Gas Flow Meter Bbz VA400 With 4~20 mA Analog Output photo-1
Various Gas Flow Meter Bbz VA400 With 4~20 mA Analog Output photo-2
Various Gas Flow Meter Bbz VA400 With 4~20 mA Analog Output photo-3
Various Gas Flow Meter Bbz VA400 With 4~20 mA Analog Output photo-4
Various Gas Flow Meter Bbz VA400 With 4~20 mA Analog Output photo-5
Various Gas Flow Meter Bbz VA400 With 4~20 mA Analog Output photo-6
US$ 100 - 3,105 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
BBZ
Model Number:
BBZ - VA400
Contact Supplier Request Quote Chat Now
Henan BBZ Automation Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjin Lianyungang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name BBZ
Model Number BBZ - VA400
Product Introduction

Various gas flow meter bbz VA400 with 4~20mA analog output can be easily detached from the compressed air / gas pipelines to be corrected or replaced, The opening may be temporarily closed with a lid

Product features

Easy installation

Optional measurement unit such as m³ / h, m³ / min,l / min, l / s, kg / h, kg / min, kg / s, cfm and so on through the small button on the sensor head.

Compressed air counter up to 1,999,999,999 m³, a small button can clear the setting.

4 ~20 mA analog output, pulse output (electrically isolated)

High measurement accuracy even in the lower measuring range (the best choice for leak detection)

Minimal pressure loss

Thermal mass flow principle, no additional pressure and temperature

Product Parameters
Measurement Units
m³/h, m³/min, l/min, cfm, m/s, kg/min, kg/h, kg/s (Reference standards can be set)
Default:
Air: Ps = 1000 hPa, Ts = 20 ° C
Other gases: Ps = 1013 hPa, Ts = 0 ° C
Measuring principle
Thermal Mass Flow
Accuracy
± 2% 0.3% of full scale)
Temperature drift
0.05% / K
Pressure drift
0.5% / MPa
Environmental/ Process Temperature
23 ° C ± 3 ° C
Environmental / Process humidity
<90%, non-condensing
Process pressure
0.6 MPa

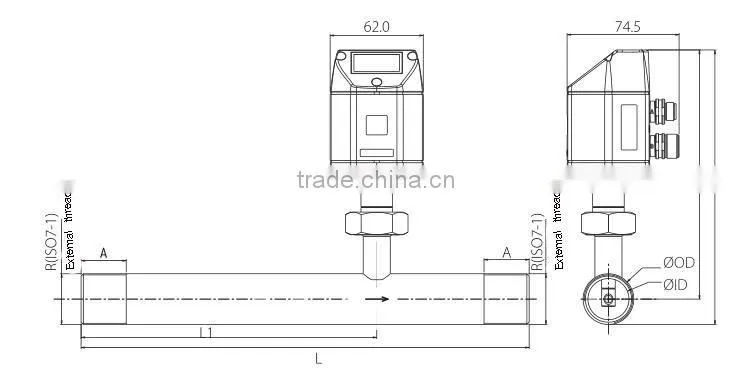

Connection
R type thread (ISO 7-1)
Sensor
esistive sensor with glass coated
Measuring medium
Air, N2, O2, Ar, N2O, CO2
Operating temperature
-30 ~50 ° C
-10~50 ° C (with display)
Working pressure
1.6 MPa 4.0 MPa (optional)
Analog output
Signal: 4 to 20 mA
Correspondence: 0 to the maximum range
Accuracy: 0.06 mA
Pulse output
Unit consumption corresponds to a pulse, electrically isolated switching output, high maximum 30 VDC, 20 mA
Power supply
12-30 VDC, 100 mA
Display
128 x 64 pixels, with backlight
Material
Stainless steel 1.4404 (SUS 316L)

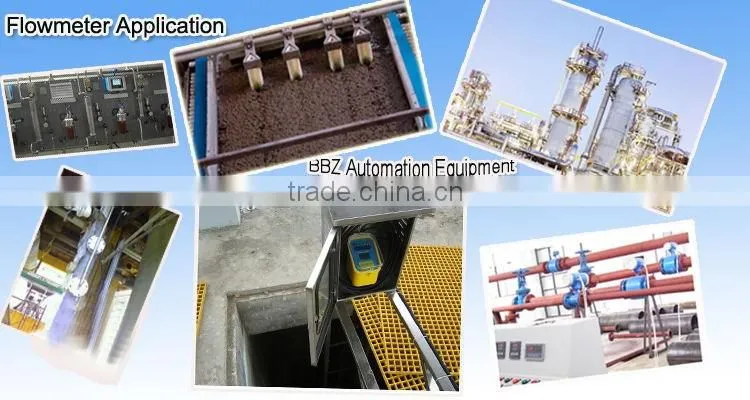

Application

Compressed air consumption measurement and costing

Gas leakage detection

Portable measurement on compressed air of a single machine or workshop

Flow measurement of various process gases, such as N 2, CO 2, O 2, Ar, N 2 O

Nitrogen Flow Measurement
