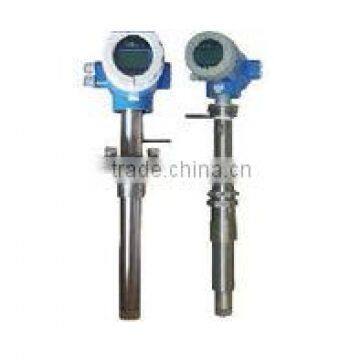

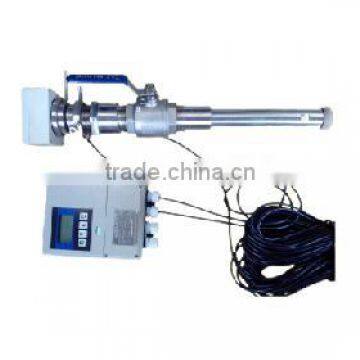

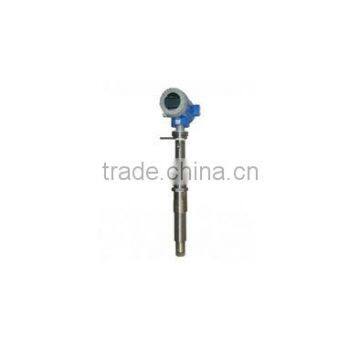

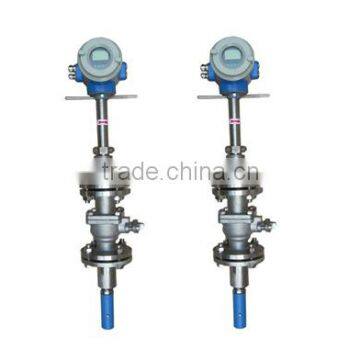

Help CenterBBZ-LD-C Insertion Type Electromagnetic Flowmeter
Related Products
-
BBZ -LD Series Electromagnetic FlowmeterUS$ 150 - 3,000MOQ: 1 Piece -
China Made BBZ- Proline Promag W 800 Electromagnetic FlowmeterUS$ 150 - 2,568MOQ: 1 Piece
-
BBZ-MFP Plug-in Electromagnetic FlowmeterUS$ 100 - 2,500MOQ: 1 Piece
-
Electromagnetic Flowmeter Farmland FlowmeterUS$ 500.00 - 500.00MOQ: 1 Piece
-
BBZ-Proline Promag 50E Energy Saving Electromagnetic Flowmeter Made in ChinaUS$ 124 - 1,500MOQ: 1 Piece

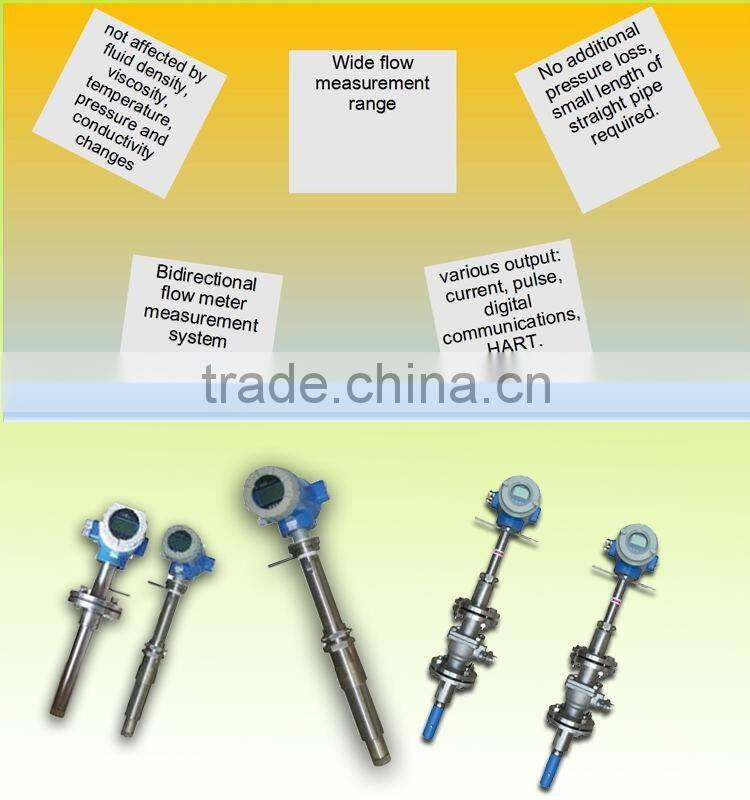

Features:
Measurement not affected by fluid density, viscosity, temperature, pressure and conductivity changes.
The use of advanced excitation technology, low power consumption, zero stability, anti-interference ability, good reliability.
No additional pressure loss, small length of straight pipe required.
Wide flow measurement range , full scale flow rate can be set continuously in 0.1m / s-15m / s, the output signal and flow (velocity) to be completely linear relationship
Convert display with 16-bit high-performance microprocessors, 2 ×16LCD display, convenient parameter setting,reliable programming.
Bidirectional flow meter measurement system, built-in three totalizer can show: forward flow, reverse flow, the total flow of the difference between forward flow and reverse flow.
Variety of output: current, pulse, digital communications, HART.
For large diameter pipes: DN150-DN3000mm.
Sensor body and the electrode has a variety of materials available.
Small size, light weight and easy transportation and installation, enabling continuous flow maintenance and disassembly.
Competitive price, the larger the diameter size, the greater the cost-effective.
Compact type and remote type can be optional.

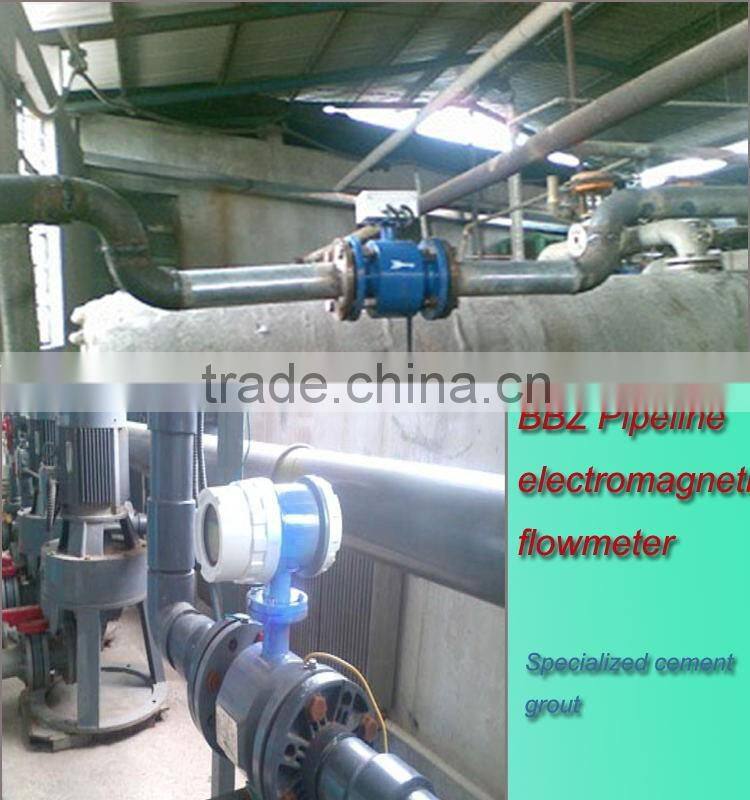

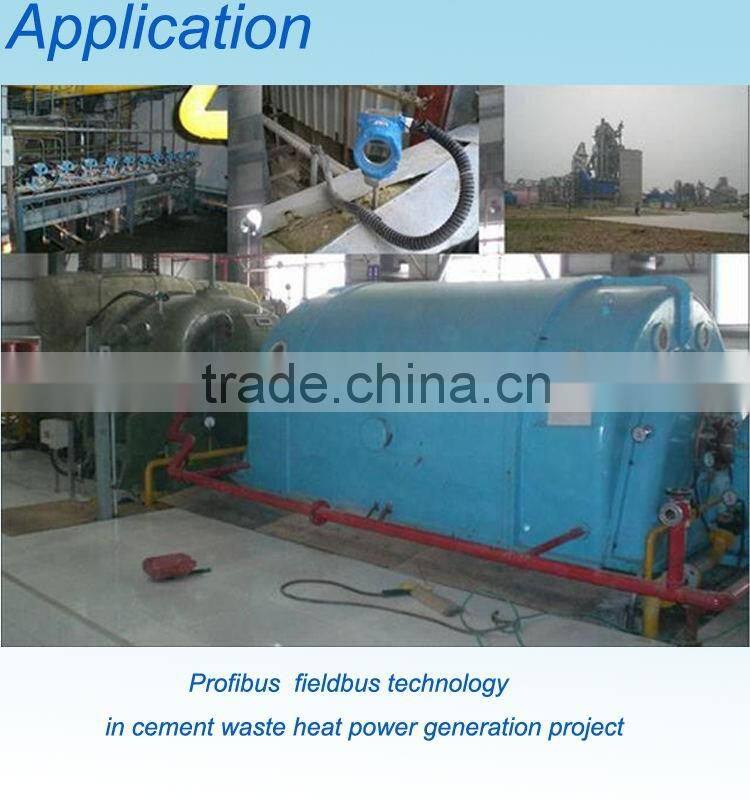

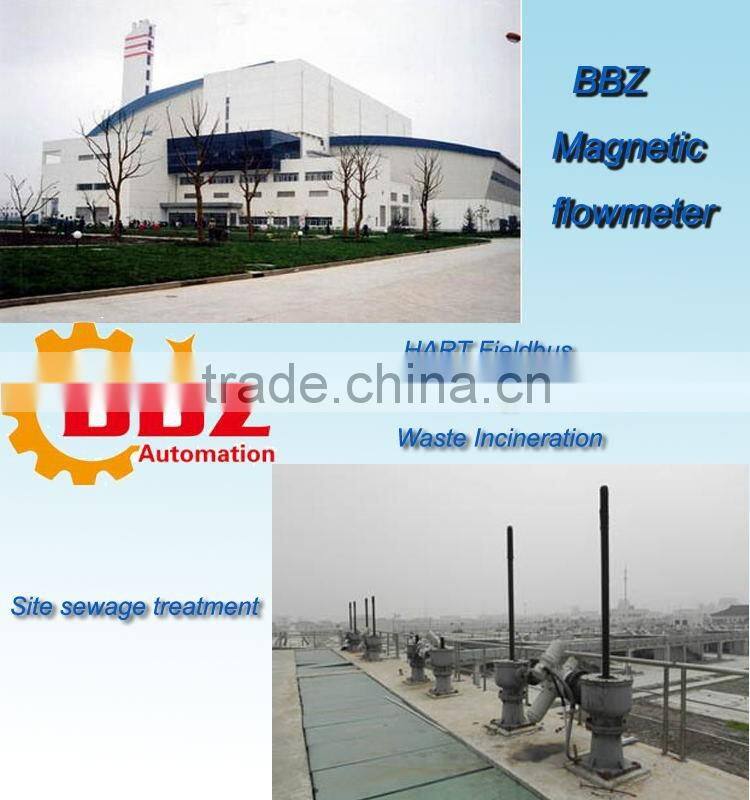

Application:

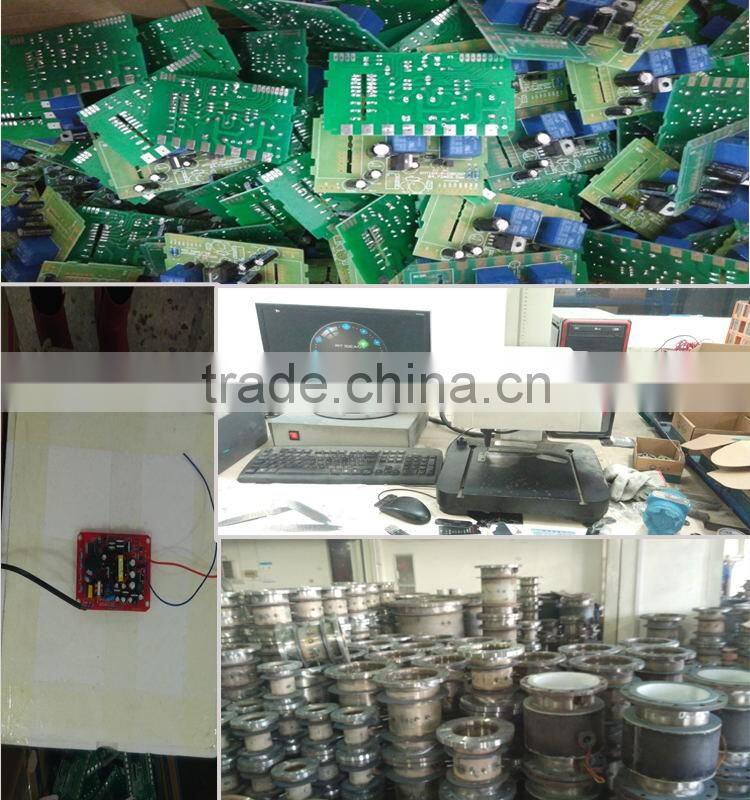

Working factory :
Specifications:
Nominal diameter |
DN150-DN3000mm |
Nominal pressure |
≤1.6MPa |
Working temperature |
≤120 ℃ |
Upper limit of the flow rate range |
continuously adjustable within0.1-15m / s |
Accuracy |
±2.0%, ±2.5% |
Measured medium conductivity |
≥50μs / cm |
Electrode material |
316L, Hastelloy (HB / HC), Titanium (Ti), Tantalum (Ta), etc |
Maximum distance |
≤100m |
Cable |
RVVP type double-core shielded cable STT3200 type four-core tri-shield cable |
