Clipsal Style SAA 413QC Surface Socket Quick Connect/413QC Outlet Socket

Clipsal Style SAA 413QC Surface Socket Quick Connect/413QC Outlet Socket thumbnail-1
Clipsal Style SAA 413QC Surface Socket Quick Connect/413QC Outlet Socket thumbnail-2
Clipsal Style SAA 413QC Surface Socket Quick Connect/413QC Outlet Socket thumbnail-3
Clipsal Style SAA 413QC Surface Socket Quick Connect/413QC Outlet Socket thumbnail-4
Clipsal Style SAA 413QC Surface Socket Quick Connect/413QC Outlet Socket thumbnail-5
Clipsal Style SAA 413QC Surface Socket Quick Connect/413QC Outlet Socket thumbnail-6
Clipsal Style SAA 413QC Surface Socket Quick Connect/413QC Outlet Socket photo-1
Clipsal Style SAA 413QC Surface Socket Quick Connect/413QC Outlet Socket photo-2
Clipsal Style SAA 413QC Surface Socket Quick Connect/413QC Outlet Socket photo-3
Clipsal Style SAA 413QC Surface Socket Quick Connect/413QC Outlet Socket photo-4
Clipsal Style SAA 413QC Surface Socket Quick Connect/413QC Outlet Socket photo-5
Clipsal Style SAA 413QC Surface Socket Quick Connect/413QC Outlet Socket photo-6
US$ 1 - 1.5 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
NADWAY
Model Number:
413QC
Contact Supplier Request Quote Chat Now
Ningbo Dutian Industry Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name NADWAY
Model Number 413QC
Type Other, Extension Socket, Wall Socket,Surface socket quick connect
Grounding Standard Grounding
Rated Voltage 250V
Rated Current 10A
Application Other, Industrial, Industrial

Specifications

Specifications
Australian clipsal style 413QC surface socket
waterproof IP66, fireproof
waterproof switch AS/NZS





Product Description

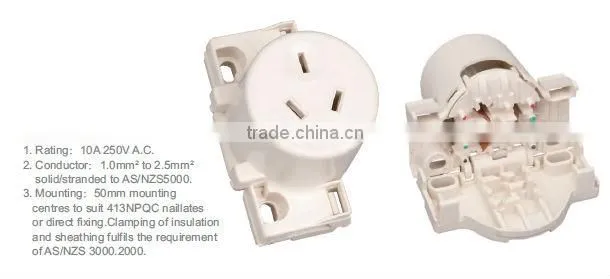

 413QC quick connect surface socket passed SAA for 1.0~2.5mm2 cable

Specifications OF 413QC:



1,  Rating :   10A,250V



2, Conductor Range:     1.00mm2 to 2.5mm2 solid/stranded to AS/NZS5000. DO NOT use for conductors outside this range



3, Mounting :   50mm mounting centres to suit nail plates or fixed fixing. Clamping of insulation and sheathing fulfils the requirements of AS/NZS3000.2000



Detailed Images









clipsal style SAA 413QC surface socket quick connect/413QC outlet socketclipsal style SAA 413QC surface socket quick connect/413QC outlet socketclipsal style SAA 413QC surface socket quick connect/413QC outlet socketclipsal style SAA 413QC surface socket quick connect/413QC outlet socketclipsal style SAA 413QC surface socket quick connect/413QC outlet socket







  1 2 3 4
Mid Cable Connection End Cable Connection
clipsal style SAA 413QC surface socket quick connect/413QC outlet socket clipsal style SAA 413QC surface socket quick connect/413QC outlet socket clipsal style SAA 413QC surface socket quick connect/413QC outlet socket clipsal style SAA 413QC surface socket quick connect/413QC outlet socket clipsal style SAA 413QC surface socket quick connect/413QC outlet socket
Remove outer sheathing ONLY to required length of 46mm (mid section) using stripping template. For end connection remove 70mm. Lay cable into terminal paths. Ensure correct polarity by following colourcoding NOTE: When connecting at cable end, place tails into individual cavities Close lid and squeeze with pliers until both clips latch. To re-open insert screwdriver and twist to release clips on both ends





Payment &Transport

Payment

v Pay by T/T, LC



v Customers can choose which payment ways that you accept

Shipping terms

v Loading Port: ShangHai or NingBo, China

v Sample Delivery: 7-10days.

v Mass Production Delivery: 20 -50days after sample confirmation

v Samples are available within 7-10 working days.

clipsal style SAA 413QC surface socket quick connect/413QC outlet socket

clipsal style SAA 413QC surface socket quick connect/413QC outlet socket



Our Services & FAQ

OUR SERVICES

Products sales:

We supply distribution boards, 56 series, wall switches, PVC conduits and its fitting, PV Power System, which produced by our factory.

Products customize and process:

If we don’t have the products you need currently, as soon as it is similar to our products and our factory is able to produce it, you can provide us the detailed specification and let’s customize it for you.

Business assistant:

We help our customer do the factory checking,productive process checking and products shipment checking. We also provide inspection report and the spot photos for record,which help to save purchase cost and reduce trade risk for buyers.

FAQ

1 How to get quotation from us?

   If you are interested in any item in our website, please just feel free to send us an inquiry by e-mail. Our salesman will reply you as soon as possible.

2 How long will it take to receive my goods?

  We begin to process your order as soon as we receive your payment. Usually, it needs 4-5 days by air; 9-15 or 30-33days by shipping.



3 Do you accept customized order?

  Yes, we do.

4 Do you offer OEM & ODM?

  Yes. OEM & ODM are available.

clipsal style SAA 413QC surface socket quick connect/413QC outlet socket
