Help CenterChip Sealer (Seal Truck) Slurry Sealer
US$ 90000.00 - 90000.00
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Transmission Type:
Manual
Emission Standard:
Euro 2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or others
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Asphalt Distributor (bitumen Sprayer)US$ 60000.00 - 60000.00MOQ: 1 Unit -
Vacuum Jetting Truck (Vacuum Sewage Suction)US$ 130,000 - 145,000MOQ: 1 Unit
-
Pulling and Pumping Tanker (Powder Material Suction)US$ 60,000 - 120,000MOQ: 1 Unit
-
Aerial Work Platform (Lift Truck)US$ 24,000 - 80,000MOQ: 1 Unit
-
Industrial Vacuum Truck (Super Sucker Truck)US$ 90000.00 - 90000.00MOQ: 1 Unit
Condition
New
Transmission Type
Manual
Emission Standard
Euro 2
Fuel Type
Diesel
Dimensions (L x W x H) (mm)
9695X2500X3800
Gross Vehicle Weight
48000
Place of Origin
Zhejiang, China
Brand Name
CIMC
Model Number
CIMC5316TFC

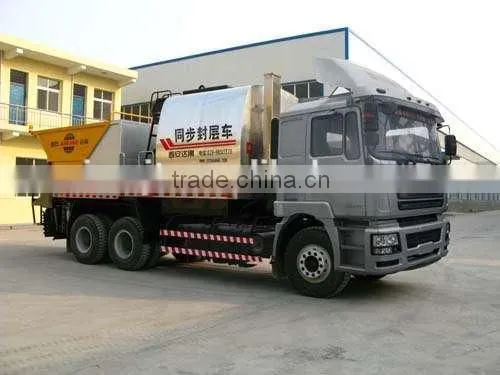

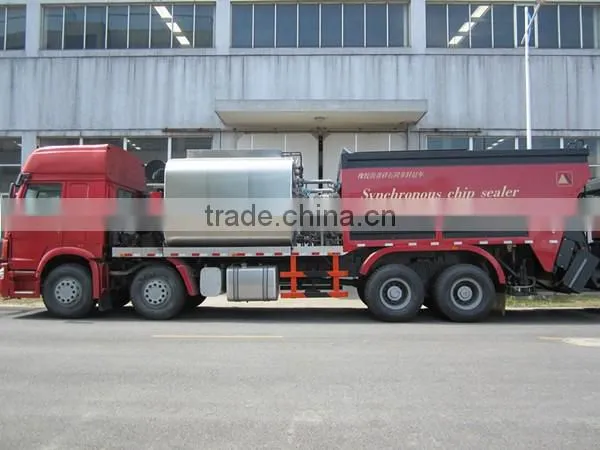

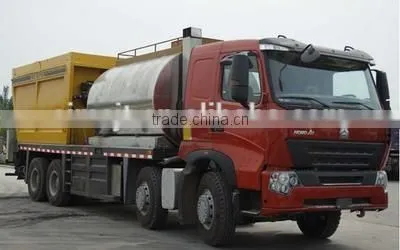

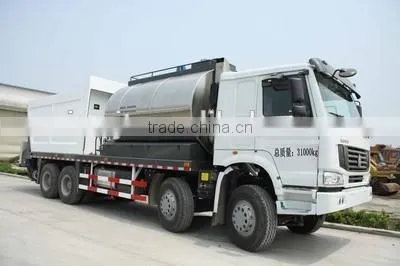

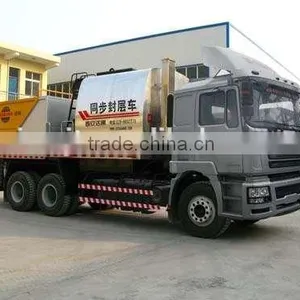

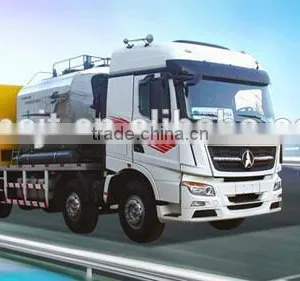

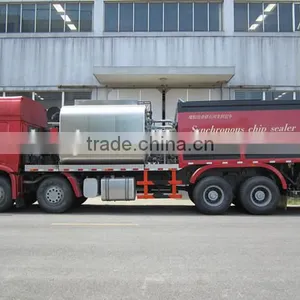

Synchronous Chip Sealer, which is a type of special-purpose machinery jointly developed and manufactured for construction of bitumen pavement by USA Phoenix, is widely applicable to new highway construction and old road maintenance, and it can spray/distribute bitumen and spread aggregates synchronous or separately. It is provided with the advantages of costing saving, surface wear resistance, slip resistance, water resistance, and quick traffic recovery when construction is completed. It is applicable to the construction of highways and urban of different grades.
Chassis could be any FAW, DFAC-DONG FENG, SHACMAN, SINOTRUK, FOTON, JAC, CAMC, SAIC-Iveco, NORTH Benz(BEI BEN), HYUNDAI China, Nissan UD China, HINO China, ISUZU China
| TRUCK NO. | Intellgentized Synchronous Chip sealer |
| MODEL | CIMC5316TFC |
| DIMENSION(L/W/H mm) | 12000×2490×3630 |
| BITUMEN TANK CAMPACITY(M3) | 8 |
| AGGREGATES BIN CAPACITY(M3) | 12 |
| CHASIS | ANY BRAND TRUCK CHASSIS |
| SUPPLIER | ANY CHASSIS PRODUCER |
| TRUCK TYPE | FLAT 8×4 rear drive |
| TYRE | 12.00-20 |
| APPROACHING/DEPARTURE | 16°/14° |
| ENGINE RATED POWER /REV(KW/R/MIN) | 247/2200 |
| FUEL TYPE | DIESEL |
| ENGINE TYPE | CUMMINS, HINO, ISUZU, CHINA, HYUNDAI |
| EMISSION STANDARD |
ORTHOSTICHOUS 6 CYLINDER 4 STROKS |
| Euro II,III, IV, V | |
| PASSENGER CAMPACITY(INCL.DRIVER) | 2 |
| MAX.SPEED (KM/H) | 90 |
| KERB MASS(KG) | 3100 |
| RATED LOAD MASS(KG) | 11470 |
| WORKING SPEED(KM/H) | 3.0~6.5 |
| MAX.BITUMEN PUMP FLOW(L/MIN) | 700 |
| MAX SPRAYING WIDTH(M) | 4 |
| BITUMEN SPREADING VOLUME(L/m2) | 0.5~3.0 |
| NOZZLE(PCS) | (SECTOR SHAPE)34 |
| CHIPPING DIM. |
