Specifications
Specifications1.Applicable circuit: AC 50Hz/60Hz
2.Rated insulation voltage: 600V
3.OEM welcomed
4. IEC standard
Moulded Case Circuit Breaker

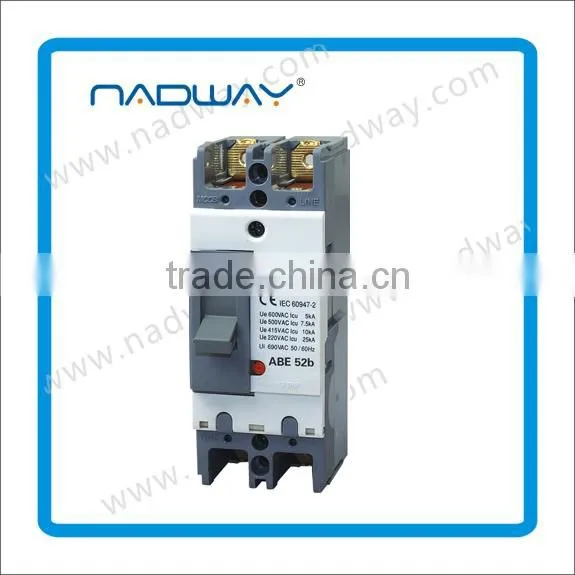

Model NO: ABE 52 ABE54 ABE33 ABE63 ABE103 ABE203 ABE403 ABE603 ABE803
ABE Series moulded case circuit breaker (mccb) is one of new type breakers which our company adopts
international advanced design, manufacture technology to develop. The rated insulating voltage is 950V.
Suitable for AC 50Hz (60Hz). Rated working voltage 690V or below, rated working current is 12.5A to
630A of circuit and used in distributing electric energy. Non-frequent making and breaking in the normal
conditions and protecting when circuit and installation are overload, short circuit and lacking voltage. Rated
shell-rack and the breaker whose current is under 400A, take protection effect when mouse cage motor's
non-frequent start, breaking off working and protecting form overload, short circuit and lacking voltage. The
product conforms to GB14048.2, IEC 60947-2 standards.
Item Name |
circuit breaker |
Standard |
IEC60898/GB10963 |
Product Certifications |
CE,ISO9001,SGS |
Product Function |
Short circuit protection, Over current protection |
Number of Poles |
1P,2P,3P,4P,1P+N,3P+N |
Rated Current(A) |
1,2,3,4,6,10,13,16,20,25,32,40,50,63 |
Breaking Capacity(A) |
6000 |
Rated Voltage(V) |
230/400 AC |
Rated Frequency |
50/60HZ |
Electro-mechanical Endurance |
4000 |
Circumstance Temperature |
-5°C~+40°C |
Connection Terminal |
Screw terminal Pillar terminal with clamp |
Energy Limiting Class |
3 |
Rated Impulse Withstand Voltage |
6.2KV |
Connection Capacity |
Rigid conductor up to 25mm² |
Tripping Curve |
B,C,D |
Fastening Torque |
2.0Nm |
Installation |
On symmetrical DIN rail 35mm Panel mounting |
Terminal Connection Height |
19mm |
Ultimate-mechanical Endurance |
4000 |
Electrical Life |
No less than 8000 operations |
Mechanical Life |
(o-c)No less than 20000 operations |
Protection Degree |
IP20 |
v Pay by T/T, LC
v Customers can choose which payment ways that you accept
Products sales:
We supply distribution boards, 56 series, wall switches, PVC conduits and its fitting, PV Power System, which produced by our factory.
Products customize and process:
If we don’t have the products you need currently, as soon as it is similar to our products and our factory is able to produce it, you can provide us the detailed specification and let’s customize it for you.
Business assistant:
We help our customer do the factory checking,productive process checking and products shipment checking. We also provide inspection report and the spot photos for record,which help to save purchase cost and reduce trade risk for buyers.
1 How to get quotation from us?
If you are interested in any item in our website, please just feel free to send us an inquiry by e-mail. Our salesman will reply you as soon as possible.
2 How long will it take to receive my goods?
We begin to process your order as soon as we receive your payment. Usually, it needs 4-5 days by air; 9-15 or 30-33days by shipping.
3 Do you accept customized order?
Yes, we do.
4 Do you offer OEM & ODM?
Yes. OEM & ODM are available.
