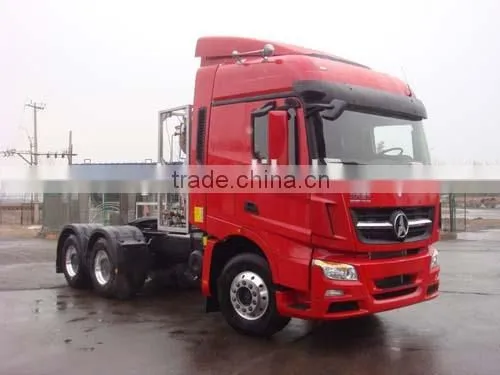

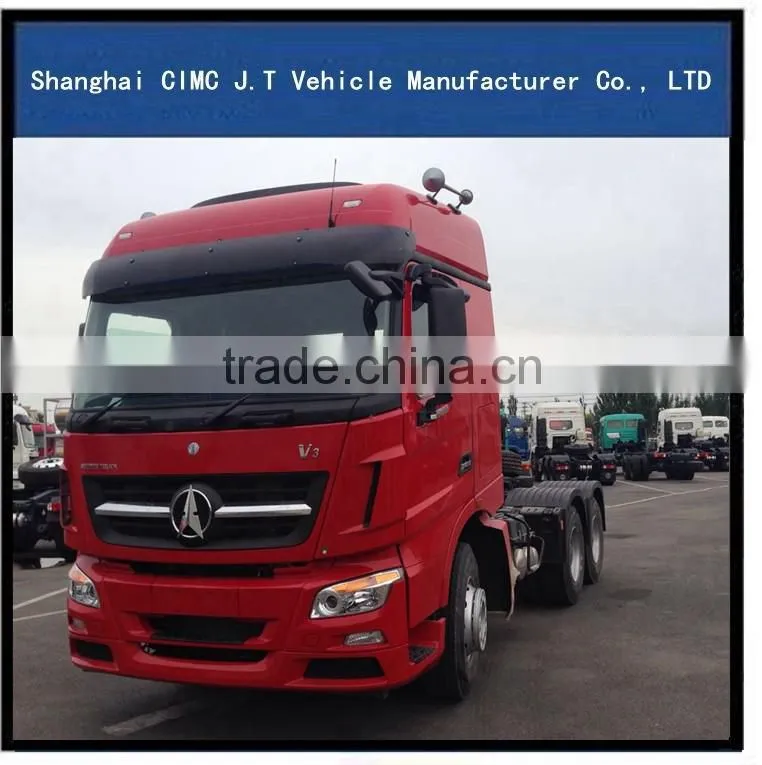

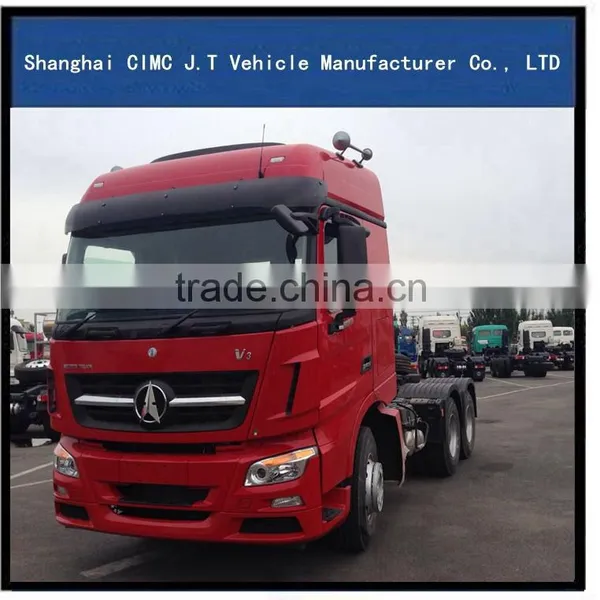

Help CenterBei Ben North Benz Tractor Truck 6X4 V3
US$ 40,000 - 50,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Horsepower:
251 - 350hp
Drive Wheel:
6x4
Payment & Shipping
Payment Methods:
Port of Shipment:
MAIN CHINA PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bei Ben North Benz 6X4 Dump Truck/TipperUS$ 51,000 - 56,000MOQ: 1 Unit -
Bei Ben North Benz Dump Truck With VOLVO Cargo BoxUS$ 51,000 - 56,000MOQ: 1 Unit
-
Bei Ben North Benz 4X2 Tractor Truck/Tractor HeadUS$ 39,000 - 42,000MOQ: 1 Unit
-
North Benz 8X4 Dump TruckUS$ 60,000 - 62,000MOQ: 1 Unit
-
North Benz 6X4 Tractor HeadUS$ 40,000 - 50,000MOQ: 1 Unit
Condition
New
Horsepower
251 - 350hp
Drive Wheel
6x4
Transmission Type
Manual
Emission Standard
Euro 4
Fuel Type
Diesel
Brand Name
NORTH BENZ
Size
6800x2500x3050 MM
Gross Vehicle Weight
25000
Engine Make: WEICHAI DEUTZ
LNG (Liquid Natural Gas) engine, electronic control
Engine model: WP10NG336E40, Euro IV emission standard
6-cylinder in-line, turbo-charging and intercooling
Maximum output: 336 hp (247 Kw) at 2200 rpm
Maximum torque: 1350 Nm at 1400-1600r/min
Number of cylinder: 6
Displacement: 9.726 L
Bore: 126 mm
Stroke: 155 mm
Specific fuel consumption: 185 g/kWh
Engine oil filling quantity: 19 l
Cooling system filling quantity (long-term filling): 40 l
Thermostat with 71ºC opening begin
Single cylinder air compressor
Rigid fan
Transmission FULLER 12JS160TA, With overdrive, 12 forwards and 2 reverse, 1600N.m, 2600rpm
Ratio: 15.53 12.08 9.39 7.33 5.73 4.46 3.48 2.71 2.1 1.64 1.28 1 14.86(R1) 3.33(R2)
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Rear Axle NORTH BENZ 457 Pressed axle housing, Pressed axle housing, hub reduction
Loading Capacity Rear Axle (Kg.) 2*13000 kgs, Ratio:4.11
Front Axle Steering with doubleT-cross section beam, Loading Capacity: 6,500 kgs
Chassis Frame: U-profile parallel ladder frame with section of 300×80×8 mm and reinforced subframe, all cold riveted cross members
Front suspension: 3 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 4 leaf semi-elliptic springs with bogie springs
LNG tank: 500 L
Fifth wheel size: 3.5 inch'
Steering BENZ D50 power steering, hydraulic steering with power assitance
Brakes Service brake: dual circuit compressed air brake
Parking brake(emergency brake) , spring energy,compressed air operating on rear wheels
Auxiliary brake : engine exhaust brake
Fifth wheel Rated loading capacity at fifth wheel: 40,000kg
Wheels & Tyres 315/80R22.5, tubeless, 10 holes, 11 pcs
Driver's Cab V3 cab(two seats, 2 beds),all steel forward control,2-arm windscreen wiper system with three speed,laminated windscreen with casted-in radio aerial,hydraulically damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts,adjustable steering wheel, air horn, air conditioner , with transverse stabilizer
Electrics Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Instrument Panel Active check central controllor with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators
of compressed air pressure, coolant temperature, engine oil pressure and battery charging
Dimensions mm Wheel base 3850+1350
Front wheel track 1995
Rear wheel track 1800
Approach angle (0) 17
Departure angle (0) 52
Overall length 7600
Overall width 2500
Overall height with roof air spoiler 3800
Height of fifth wheel above road 1360
Weight kg Dead weight 8800
Maximum Carry Capacity (kgs) 40000
Gross combination weight 49000
Performance Maximum driving speed (km/h) 110
Maximum gradeability (%) 35
Minimum ground clearance (mm) 298
Minimum turning circle (m) 9.25
LNG consumption (l/100 km) 29
LNG (Liquid Natural Gas) engine, electronic control
Engine model: WP10NG336E40, Euro IV emission standard
6-cylinder in-line, turbo-charging and intercooling
Maximum output: 336 hp (247 Kw) at 2200 rpm
Maximum torque: 1350 Nm at 1400-1600r/min
Number of cylinder: 6
Displacement: 9.726 L
Bore: 126 mm
Stroke: 155 mm
Specific fuel consumption: 185 g/kWh
Engine oil filling quantity: 19 l
Cooling system filling quantity (long-term filling): 40 l
Thermostat with 71ºC opening begin
Single cylinder air compressor
Rigid fan
Transmission FULLER 12JS160TA, With overdrive, 12 forwards and 2 reverse, 1600N.m, 2600rpm
Ratio: 15.53 12.08 9.39 7.33 5.73 4.46 3.48 2.71 2.1 1.64 1.28 1 14.86(R1) 3.33(R2)
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Rear Axle NORTH BENZ 457 Pressed axle housing, Pressed axle housing, hub reduction
Loading Capacity Rear Axle (Kg.) 2*13000 kgs, Ratio:4.11
Front Axle Steering with doubleT-cross section beam, Loading Capacity: 6,500 kgs
Chassis Frame: U-profile parallel ladder frame with section of 300×80×8 mm and reinforced subframe, all cold riveted cross members
Front suspension: 3 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 4 leaf semi-elliptic springs with bogie springs
LNG tank: 500 L
Fifth wheel size: 3.5 inch'
Steering BENZ D50 power steering, hydraulic steering with power assitance
Brakes Service brake: dual circuit compressed air brake
Parking brake(emergency brake) , spring energy,compressed air operating on rear wheels
Auxiliary brake : engine exhaust brake
Fifth wheel Rated loading capacity at fifth wheel: 40,000kg
Wheels & Tyres 315/80R22.5, tubeless, 10 holes, 11 pcs
Driver's Cab V3 cab(two seats, 2 beds),all steel forward control,2-arm windscreen wiper system with three speed,laminated windscreen with casted-in radio aerial,hydraulically damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts,adjustable steering wheel, air horn, air conditioner , with transverse stabilizer
Electrics Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Instrument Panel Active check central controllor with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators
of compressed air pressure, coolant temperature, engine oil pressure and battery charging
Dimensions mm Wheel base 3850+1350
Front wheel track 1995
Rear wheel track 1800
Approach angle (0) 17
Departure angle (0) 52
Overall length 7600
Overall width 2500
Overall height with roof air spoiler 3800
Height of fifth wheel above road 1360
Weight kg Dead weight 8800
Maximum Carry Capacity (kgs) 40000
Gross combination weight 49000
Performance Maximum driving speed (km/h) 110
Maximum gradeability (%) 35
Minimum ground clearance (mm) 298
Minimum turning circle (m) 9.25
LNG consumption (l/100 km) 29
