5mw Red Laser Module With Line Switch

5mw Red Laser Module With Line Switch photo-1
US$ 5 - 8 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Color:
Green
USB Interface:
No
Remote Control:
No
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen shekou port
Delivery Detail:
Delivery time depends on order quantity.
Color Green
USB Interface No
Remote Control No
Place of Origin Guangdong, China
Brand Name LM
Model Number LM-101-2
Size 55mm*9mm
Function industrial semi-finished products
Control Distance 500m
Battery no battery,3.0V DC

Specifications

1.real power by laser meter
2.many power to choose: 5mw,100mw,200mw
3.add line or switch free,as your demand

5mw to 200mw red laser module

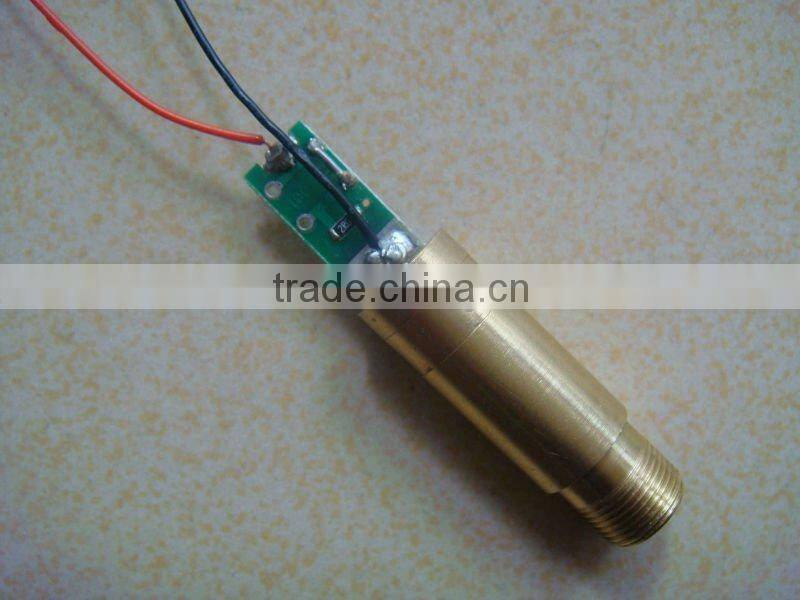

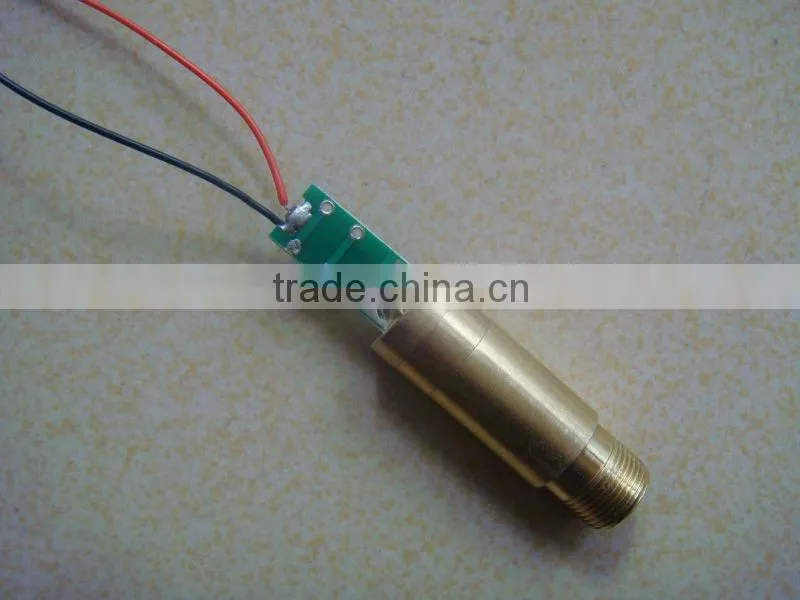

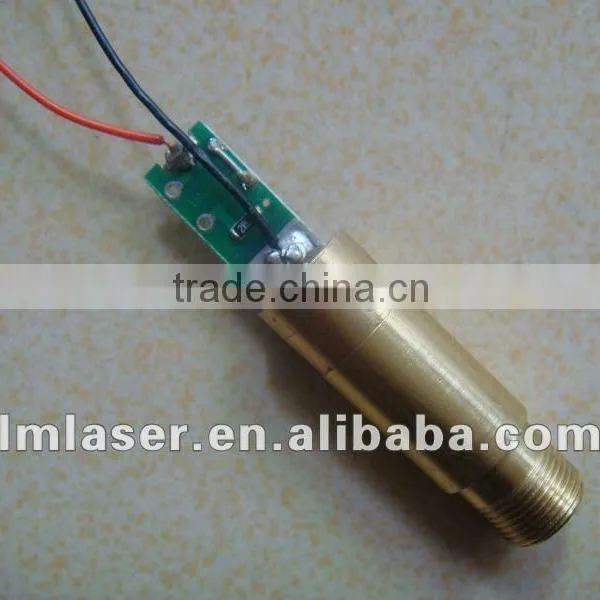

The red(650nm) laser module is a kind of industrial semi-finished products,can be apply to many areas.The light is straight,long distance and thin.For customes’convinence,we usually connect two lines outside.The black line is design to connect with the negative electrode “-”,the red line is design to connect with the anode “+”.There is a press key on the board,if you do not need to control on the board,we will short circuit it,so you can add another key outside.

Working details:

5mw     2.5V---3.0V   current is limited to 100mA---140mA

30mw     2.5V---3.0V   current is limited to 220mA----250mA

50mw     2.5V---3.0V,   current is limited to 280mA---320mA

100mw   2.5V---3.0V   current is limited to 300mA----350mA

200mw   2.5V---3.0V   current is limited to 320mA----400mA

Warning: do not put too high voltage on it,otherwise the module will be burn and fail working.

       And do not try to adjust the adjustable resistance on the board to change the current.







5mw red laser module with line switch5mw red laser module with line switch
