6000L large fermenter in China
The large fermenter produced by us is a set of technological equipment for
the production of "live" and filtered beer. Brew master make their beer attractive to consumers
by unique brewing process and distinctive beer taste. If desired, these beer brewing plant can
be placed directly in places of consumption of beer: restaurants,brewpub, bars, hotels, tourist
and shopping centers. Interpreter may be faced with polished brass, copper besides stainless steel.
A:6000L large fermenter | |
Function |
Wort Fermentation or maturation |
Tank Capacity |
6000L (+25% Headspace minimum) |
Interior Shell |
SUS304 full welded; TH=3mm |
Exterior Shell |
SUS304 full welded; TH=2mm |
Insulation |
Polyurethane; TH=80mm |
Glycol Jacket |
Dimpled plate on cone and side |
Head and Bottom |
Dished head and 60 degree cone bottom |
Sampling valve |
Full sanitary perlick style sampling valve |
Safe valve |
Mechanical relief valve 2 bar on CIP arm |
Pressure gauge |
Shockproof pressure gauge with two gauges on CIP arm |
Beer outlet |
Rotating racking arm and port on cone with butterfly valve |
Hopping port |
Dry hopping port with solid end cap |
Leg |
4pcs completely SUS304 heavy duty legs with leveling pad and legs support |

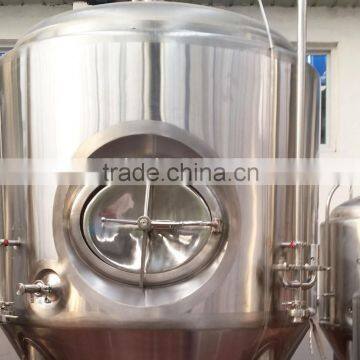

&The side manway&
The side manhole door is dent which can stand better pressure.
&The acid washing passivation&
Now we do the acid wash passivation to the interiorof the tanks so that it can form a protect
layer which can protect stainless steel from being corroded easily. For all the welding, we will
also do the Acid Wash.
&The bowl type port&
For the sample port, carbonation port, glycol outlet etc, we design bowl type, which is more sanitary.
B. Large Fermenter Control panel | |
Function |
Fermenter |
Assembling Style |
Floor Type/Wall hanging |
Electrical Parts |
World wide brand CE certificated |
Exterior Shell |
SUS304 full welded; TH=2mm |
Category |
Instrument Panel; PLC Panel with Touch Screen |
The comparison of instrument and PLC control panel
Instrument panel: the program is very stable. Although one module is broken, it would not affect other modules.
The PLC panel: Modern and beautiful. And it has high visual degree.
a.) Free consultation service before, during, and after sales;
Your questions would be replied within 24 hours by our sales team.
b.) Project planning and design services;
There are professional engineers and technicians in our company, so we can customize the equipment
according to your requirements. What is more, both 2D and 3D drawings can be supplied for your reference.
c.) Free debugging instruction of equipment Training of equipment maintenance and operating;
We would send profession engineers to help you assemble all of the tank and train the operator free of charge.
d.) Warranty;
Provide 36 months complete warranty for tanks body and lifetime maintenance service;
All of the accessories and auxuliaries facilities are guaranteed for one year.
e.) all of electric parts are certificated with CE/UL/CSA/RU/ISO.
