Black PE Jacket End Glow PMMA Fiber Optic Lights

Name: Black PE Jacket End Glow PMMA Fiber Optic Lights
Brand: Biwin
SKU: 113991461

US$ 95 - 105 MOQ: 1 Roll

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

Biwin

Model Number:

LC-2000

Sichuan Biwin Imp-Exp Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu Shenzhen Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name Biwin

Model Number LC-2000

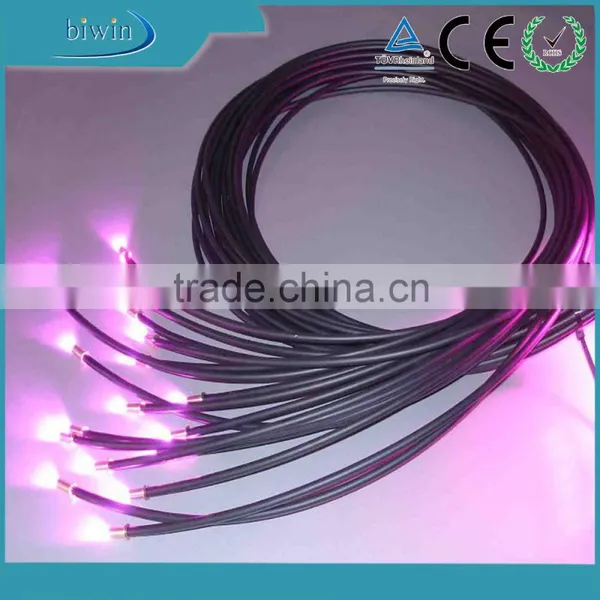

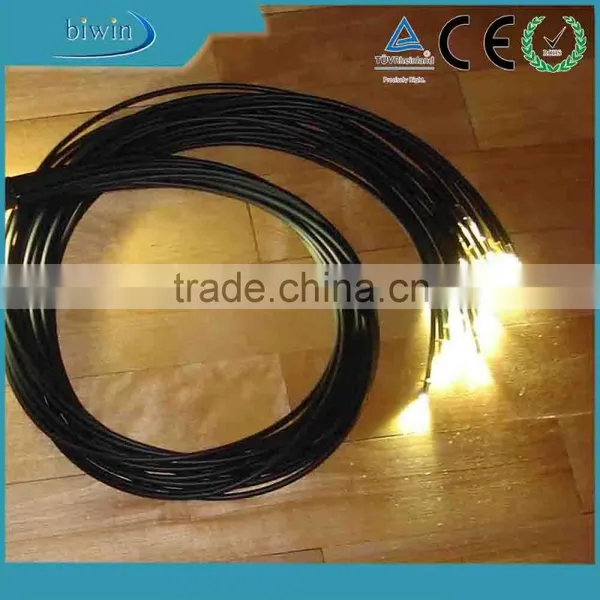

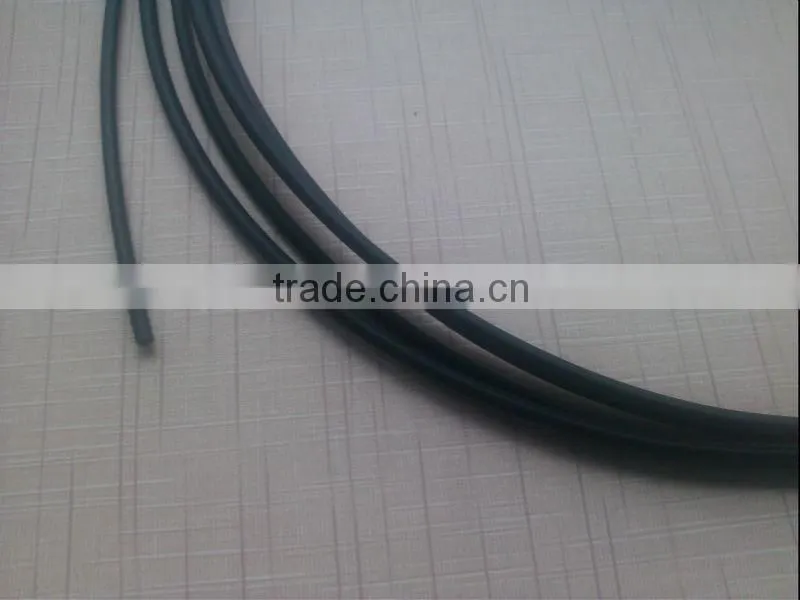

black PE jacket end glow PMMA fiber optic lights

A. Features:

1. Low attenuation;

2. Smooth surface;

3. Transmit visible light;

4. No ultraviolet or infrared transmission;

5. No heat or electricity transfer;

6. Good flexibility;

7. Durability;

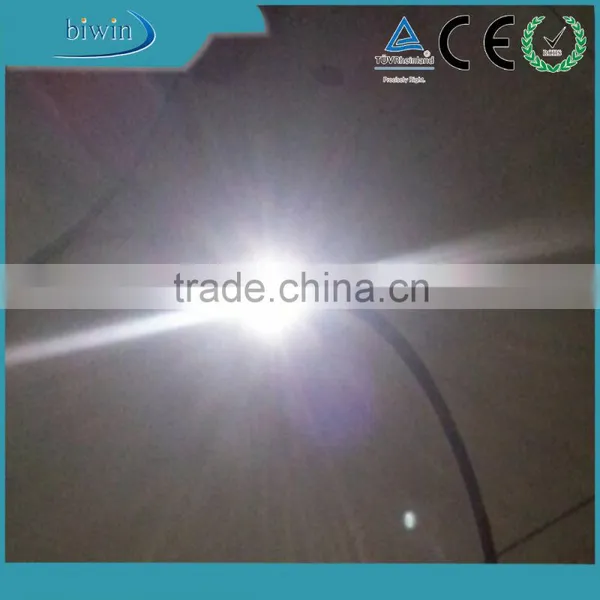

8. Strongest light effect at the end of the fiber optic lights.

B. Fiber Optic Lights Applications:

1. Star effect for both ceiling and swimming pool bottom;

2. Artistic adornment in graphical and 3D artistic design;

3. Widely used in museum showcases and jewellery display;

4. Lighting in some dangerous place like oil depot;

5. Interior fiber optic light decoration of KTV, pubs, coffee houses, hotels and restaurants;

6. Decorative lighting in the park and fairground;

7. Underground lighting;

8. Medical light.

We have wide range of plastic fiber optic lights and Free Samples for customer to choose from. Please feel free to contact us.

C. Fiber Optic Lights Specifications:

Basic Properties
Fiber core/clad material		Polymethylmethacrylate(PMMA)/Fluororesin
Numerical aperture		0.5
Cable appearance		Smooth surface, no visible crackles, defects or mechanical damage
Cable diameter fluctuation		± 5%
Using temperature range of the cable		-20~+70 centigrade
Parameters

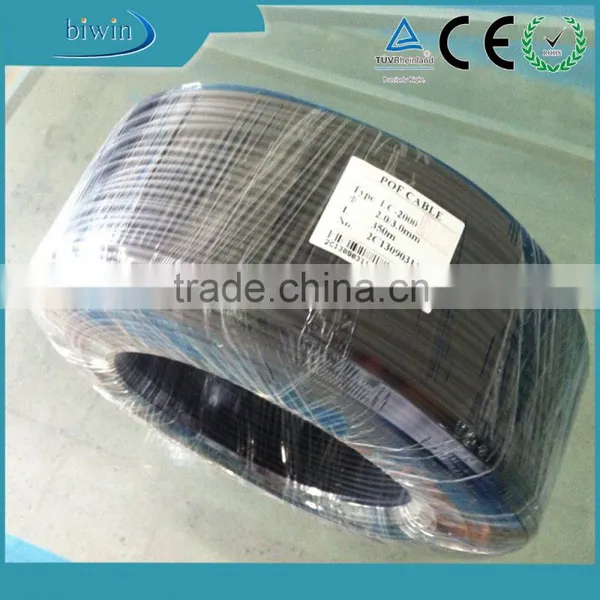

Model	Optical fiber diameter	Optical fiber cable diameter	Roll length	Sheath material
LC-500	0.5mm	1.0mm	3000m	black PE
LC-750	0.75mm	2.2mm	2700m
LC-750A	0.75mm	1.6mm	2700m
LC-1000	1.0mm	2.2mm	1500m
LC-1000A	1.0mm	1.8mm	1500m
LC-1500	1.5mm	2.5mm	700m
LC-2000	2.0mm	3.0mm	350m
LC-2500	2.5mm	3.5mm	250m
LC-3000	3.0mm	4.0mm	150m
