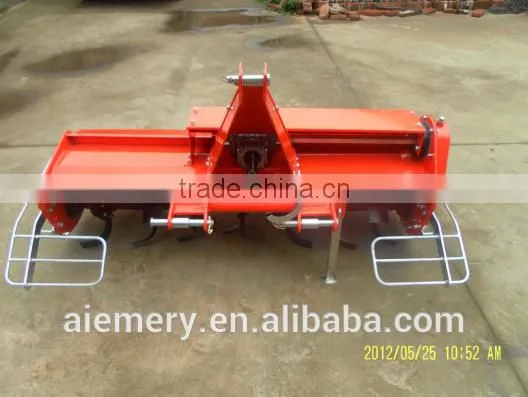

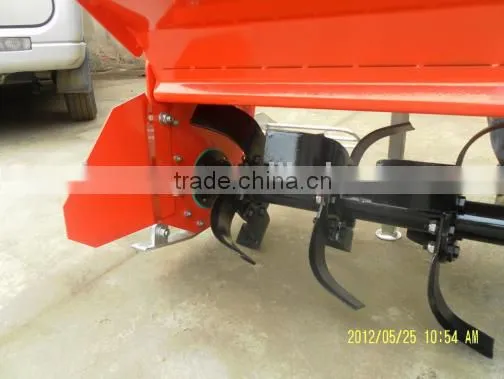

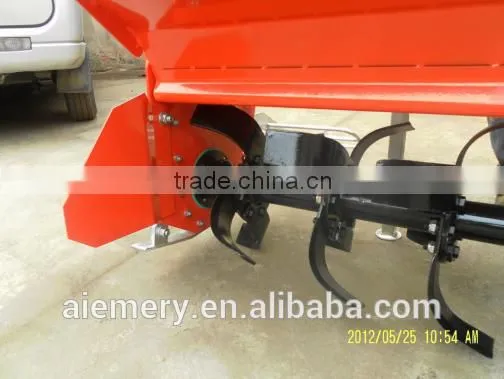

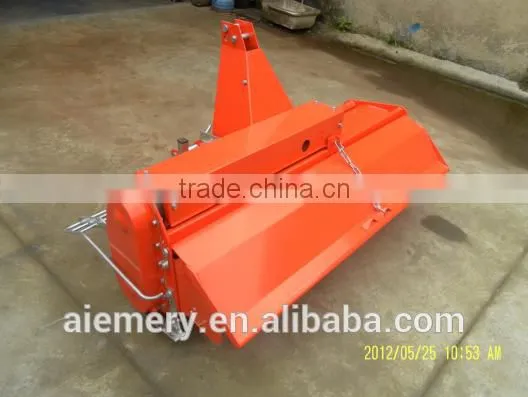

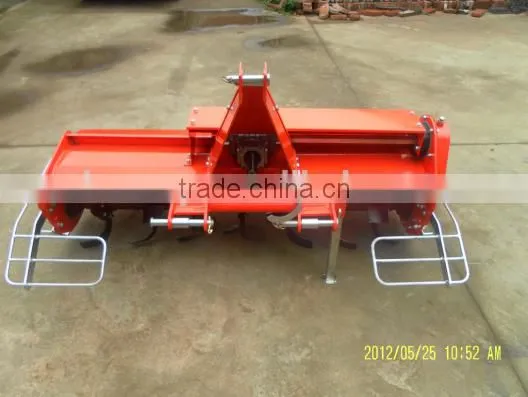

small agriculture farming machinery TL rotary tiller
Specifications
1.Hign effeicent
2.CE approved
TL series rotary tiller:
Main Specification on TL series rotary tiller:
MODEL |
TL-85 |
TL-95 |
TL-105 |
DIMENSIONS(L*W*H) |
950*800*750mm |
1150*800*750mm |
1250*800*750mm |
STRUCTURE WEIGHT |
155Kg |
170Kg |
185Kg |
TILLING WIDTH |
0.8m |
0.9m |
1.0m |
TILLING DEPTH |
90mm |
90mm |
90mm |
WORKING EFFICIENCY |
1300-2100m2/h |
1500-2200m2/h |
1700-2300m2/h |
PTO TURNNING SPEED |
540r/min |
540r/min |
540r/min |
PTO SPLINE |
6*8*700mm |
6*8*700mm |
6*8*700mm |
POWER REQUIRED |
12-20HP |
12-20HP |
15-22HP |
| |||
MODEL |
TL-115 |
TL-125 |
TL-135 |
DIMENSIONS(L*W*H) |
1350*800*750mm |
1450*800*750mm |
1550*800*750mm |
STRUCTURE WEIGHT |
200Kg |
240Kg |
240Kg |
TILLING WIDTH |
1.1m |
1.2m |
1.3m |
TILLING DEPTH |
90mm |
90mm |
90mm |
WORKING EFFICIENCY |
1900-2400m2/h |
2100-2500m2/h |
2300-2600m2/h |
PTO TURNNING SPEED |
540r/min |
540r/min |
540r/min |
PTO SPLINE |
6*8*700mm |
6*8*700mm |
6*8*700mm |
POWER REQUIRED |
15-22HP |
18-22HP |
18-22HP |
Packaging Details: one set packaged in steel frame OR WOOD PACKAGE;
Delivery Detail: Shipped in 35 days after payment
Aiemery Agri-machinery
Located in Changzhou City, 2 hours reach to Shanghai by car. We are a professional manufacturer of a variety range of agricultural implements, such as all kinds of Mowers, Rotary tiller, Wood chipper, Post hole digger and so on.
Our company is established in 2010, since then we have passed CE test. We have our own brand, also OEM accepted. In the past few years, we have established a good work team. We have several engineers and quality inspectors with more than 10 years’ experience in this area. We will strictly abide by the principle of "client interests above all else". We are strict with our quality, we will inspect material, productive process and product carefully. Now our products are exported to global markets such as the North American, Europe, Australian, and South American etc. Consequently, we have built long term business relationships with customers from all over the world.
Providing 'Quality Products, Excellent Service, Competitive Prices and Prompt Delivery', we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more information.
