Aluminum Alloy Flammable Liquid Tank Semi-trailer Transport

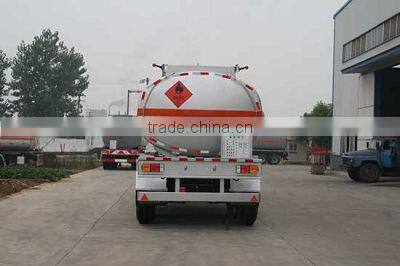

Aluminum Alloy Flammable Liquid Tank Semi-trailer Transport photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Storage:
Oil
Horsepower:
351 - 450hp
Payment & Shipping
Payment Methods:
Port of Shipment:
WUHAN SHANGHAI CHINA ANY PORT
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Storage Oil
Horsepower 351 - 450hp
Transmission Type Manual
Fuel Type Diesel
Dimensions (L x W x H) (mm) 9900*2500*3750
Brand Name QIXING
Place of Origin Hubei, China
Model Number QXAL003
Gross Vehicle Weight 35000

Aluminum alloy flammable liquid tank semi-trailer transport









Product brand:QIXING



Product name:Aluminum alloy flammable liquid tank semi-trailer transport



Product model:QXAL003



Total mass(kg):35000



Rated load(kg):29500



Curb weight(kg):5500



Cubage(m3):35.6



Dimension(mm) :9900×2500×3750



Approach/Departure Degree:-/18



number of axles:2



wheelbase (mm):5300+1320



Axle weight (Kg):-/9000/9000



suspension (mm):-/1680,-/1880



Max speed(km/h):











Note: Effective volume of tank: 35.6 m3, medium: ethanol, isopropyl alcohol, isobutyl aldehyde, acetone, acetaldehyde, formaldehyde and triethylamine, toluene, butyl alcohol, methylal, class item number: 3, density were 0.8, 0.79, 0.78, 0.78, 0.79, 0.78, 0.73, 0.87, 0.71, 0.85 t/m3, tank size: 9400 mm long, 2490 mm long axis and short axis of 1950 mm. The model of supply air suspension and gym.Protective material adopt Q235, lateral protection and protection adopts bolt connection, after the rear protection device section size (width x height) 60 * 100 (mm), and the back of the protective ground height: 540 mm. Use is suitable for the traction of dangerous goods transport semi-trailer tractor.





Aluminum alloy flammable liquid tank semi-trailer transportAluminum alloy flammable liquid tank semi-trailer transportAluminum alloy flammable liquid tank semi-trailer transportAluminum alloy flammable liquid tank semi-trailer transport

Welcome to our factory !



If have interest, please contact me!!!

Aluminum alloy flammable liquid tank semi-trailer transport






Aluminum alloy flammable liquid tank semi-trailer transport
