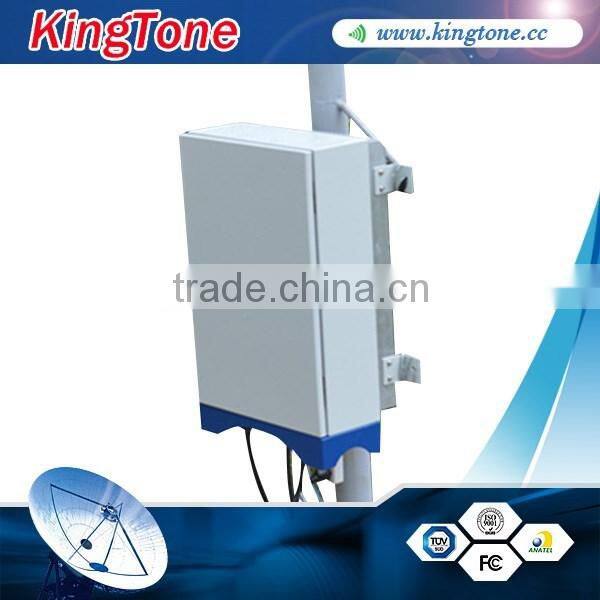

Outdoor Kingtone Mobile Booster GSM900 mhz Cell Phone Repeaters
Signal System |
Frequency Range |
Output Power |
GSM900MHz Repeater |
Uplink:890-915MHz Downlink:935-960MHz |
Indoor:15dBm, 17dBm, 20dBm,23dBm Outdoor:33dBm,37dBm,40dBm,43dBm |
DCS1800MHz Repeater |
Uplink:1710-1785MHz Downlink:1805-1880MHz |
Indoor:15dBm, 17dBm, 20dBm,23dBm Outdoor:33dBm,37dBm,40dBm,43dBm |
GSM850MHz Repeater |
Uplink:824-849MHz Downlink: 869-894MHz |
Indoor:15dBm, 17dBm, 20dBm,23dBm Outdoor:33dBm,37dBm,40dBm,43dBm |
CDMA450MHz Repeater |
Uplink:450-457.5MHz Downlink:460-467.5MHz |
Indoor:15dBm, 17dBm, 20dBm,23dBm Outdoor:33dBm,37dBm,40dBm,43dBm |
CDMA800MHz Repeater |
Uplink:824-849MHz Downlink:869-894MHz |
Indoor:15dBm, 17dBm, 20dBm,23dBm Outdoor:33dBm,37dBm,40dBm,43dBm |
PCS1900MHz Repeater |
Uplink:1880-1890MHz Downlink:1960-1970MHz |
Indoor:15dBm, 17dBm, 20dBm,23dBm Outdoor:33dBm,37dBm,40dBm,43dBm |
3G 850MHz Repeater |
Uplink: 824-849MHz Downlink:869-894MHz |
Indoor:15dBm, 17dBm, 20dBm,23dBm Outdoor:33dBm,37dBm,40dBm,43dBm |
UMTS2100MHz |
Uplink:1920-1980MHz Downlink:2110-2170MHz |
Indoor:15dBm, 17dBm, 20dBm,23dBm Outdoor:33dBm,37dBm,40dBm,43dBm |
GSM900/1800MHZ |
890-915MHz/935-960MHz |
Indoor:15dBm, 17dBm, 20dBm,23dBm Outdoor:33dBm,37dBm,40dBm,43dBm |
Kingtone Repeater GSM/UMTS900 Band Selective Repeaters are typically used by network operators to
amplify a predefined customizable frequency band or where dynamic frequency
allocation and frequency hopping are used.
Kingtone Band Selective Repeaters can boost RF signal for one or two frequency
segments, making it a perfect solution for carriers whose spectrum allocations
are not continuous.
Different units of Kingtone Band Selective Repeaters varying in output power,
gain and application are available.
Since the advent of mobile phone networks in the 2006's, Kingtone assists operators
in their deployment.
Kingtone Repeater Service
Kingtone offers a complete range of repeaters (bidirectional amplifiers or BDA)
able to cover all needs :
- GSM 2G 3G Repeater
- UMTS 3G 4G Repeater
- LTE 4G Repeater
- DAS (Distribution Antenna System) 2G, 3G, 4G
- 350MHz 400MHz 700MHz 800 MHz, 900 MHz, 1800 MHz, 1900MHz 2100 MHz, 2600 MHz Repeater
- Power : Micro, Medium and High Power
- Technology : Repeaters RF/RF, repeaters RF/FO
- Local or Remote Monitoring

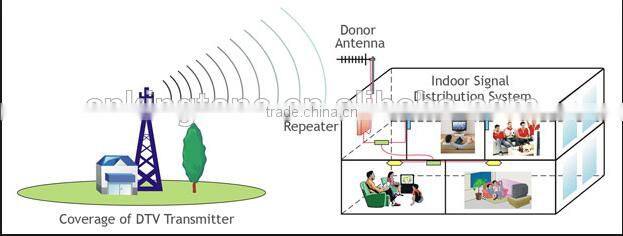

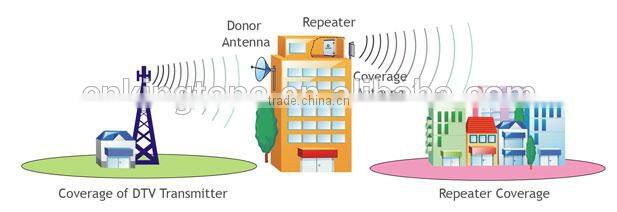

Kingtone Repeater Solutions:
The Kingtone Repeater solution also allows :
- to extend the signal coverage of a BTS in urban and rural
- to fill the white areas in rural and mountainous areas
- to insure coverage of infrastructure such as tunnels, shopping malls,
- parking garages, office buildings, hangars companies, factories, etc ...
The advantages of the repeater are :
- Low cost compared to a BTS
- Easy installation and use
- High reliability
Kingtone Repeater Features:
*Receiving and sending separation,low require for Ant isolation,making it
convenient for installation.
*Mini design with metal cavity filter technology inside.
*Full-duplex&dual-port design,and built-in power supply,making it convenient for installation.
*Allowing for continuous gain adjustment 31dB by 1dB step.
*ALC technology used to provide auto amplitude fixing.
*Modules structures,making it convenient for installation,debugging and maintenance.
Kingtone Repeater Technical Specification:
Type |
KT- High Quality 30W GSM Repeater 900MHz |
|||
GSM 850MHz |
UL: 824~849MHz DL: 869~894MHz |
|||
GSM 900MHz |
UL: 890~915MHz DL: 935~960MHz |
|||
GSM1800MHz |
UL:1710~1735MHz DL:1805~1830MHz |
|||
Output Power |
33dBm~46dBm |
|
|
|
Gain |
80~95dBm |
|||
Gain Adjust Range |
≥30dB;1dB/step |
|||
AGC Range |
≥25dB |
|||
IMD3 |
≤-50dBc |
≤-45dBc |
||
Noise Figure |
≤5dB |
|||
Ripple in Band |
≤3dB |
|||
Time Delay |
≤10μs |
|||
Spectrum mask |
Meet ETSI specification |
|||
Spurious Emission |
9KHz-1GHz:≤-36dBm/30KHz;1GHz-12.75GHz:≤-30dBm/30KHz |
|||
Port Impedance |
50Ω |
|||
VSWR |
≤1.5 |
|||
Monitoring Mode |
Local;Remote(Optional) |
|||
Power Supply |
AC220V(Normal); AC110V or DC48V or Solar Powered(Optional) |
|||
Dimensions |
61*41*29cm |
61*41*29cm |
67*47*32cm |
67*47*32cm |
Weight |
9~48kg |
|
|
|
Kingtone Repeater Application:
