GSM850MHz PCS1900MHz dual band signal repeater for cell phone
GSM cell phone repeater 850 1900 dual band repeater wireless system is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low-power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.
Main Features
- High linearity PA; High system gain;
- Intelligent ALC technology;
- Full duplex and high isolation from uplink to downlink;
- Automatic Operation convenient operation;
- Integrated technique with reliable performance;
- Local and remote monitoring (optional) with automatic fault alarm &remote control;
- Weatherproof design for all-weather installation;
Features:
1,Output Power +30dBm - +43dBm for large coverage application;
2, High working gain as Min. 95dB;
3, Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink;

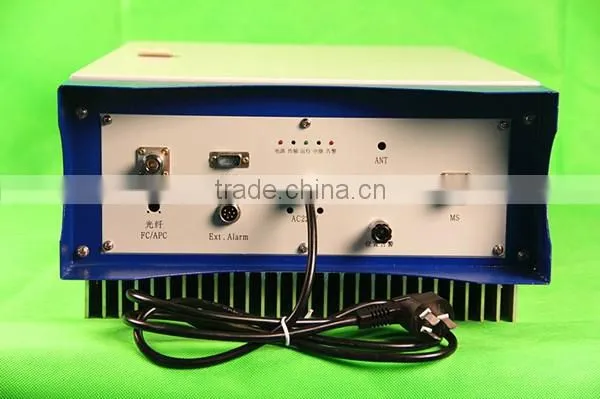

4, RS232 ports provide links to laptop for local setting and monitoring by built-in web interface;
5, Built-in wireless modem (Option) for remote monitoring by SMS or GPRS;
6, Details repeater parameters and status can be monitoring by Control Panel, such as temperature, output power level, gain, ATT, return loss, VSWR etc;
7,Support upgrading firmware remotely by GPRS;
8,High gain linear power amplifier technique with reliable performance;

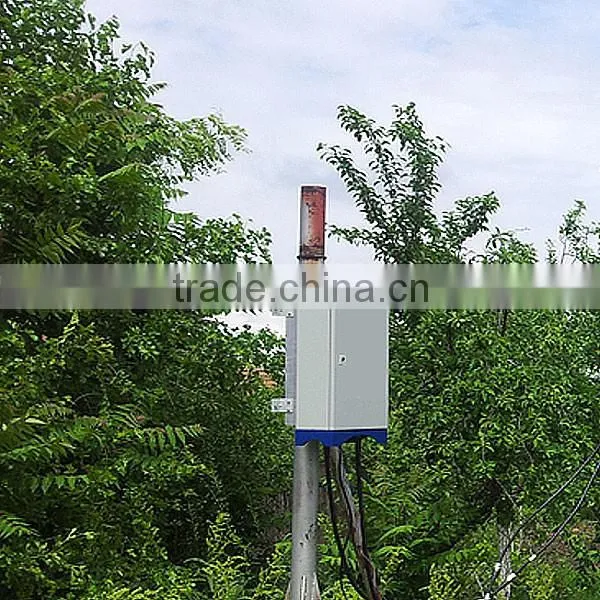

9,Compact size and light weight, easy to install on wall or pole;
GSM850MHz PCS1900MHz dual band signal repeater for cell phone
Items |
Testing Condition |
Specification |
||
Uplink |
Downlink |
|||
Working Frequency(MHz) |
GSM900 |
Nominal Frequency |
890 –915MHz |
935 -960MHz |
WCDMA2100 |
Nominal Frequency |
1920-1980MHz |
2110-2170MHz |
|
Bandwidth |
GSM900 |
Nominal Frequency |
25MHz |
|
WCDMA2100 |
Nominal Frequency |
60 MHz |
||
LTE2600 |
Nominal Frequency |
70 MHz |
||
Gain(dB) |
Nominal Output Power-5dB |
85±3 |
||
Gain flatness |
Nominal Output Power-5dB |
± 2 dB |
||
Max. Input Powers |
|
-10 dB |
||
Output Power (dBm) |
GSM900 |
modulating signal |
30 |
33 |
WCDMA2100 |
modulating signal |
37 |
40 |
|
Spectral mask |
GSM900 |
modulating signal |
ETSI EN 300 609-4 |
|
LTE2600 |
modulating signal |
3GPP TS 25.143 |
||
ALC (dBm) |
Input Signal add 20dB |
Po≤±1 |
Noise Figure (dB) |
Working in-band(Max. Gain) |
≤5 |
Ripple in-band (dB) |
Nominal Output Power -5dB |
≤3 |
Frequency Tolerance (ppm) |
Nominal Output Power |
≤0.05 |
Time Delay (us) |
Working in-band |

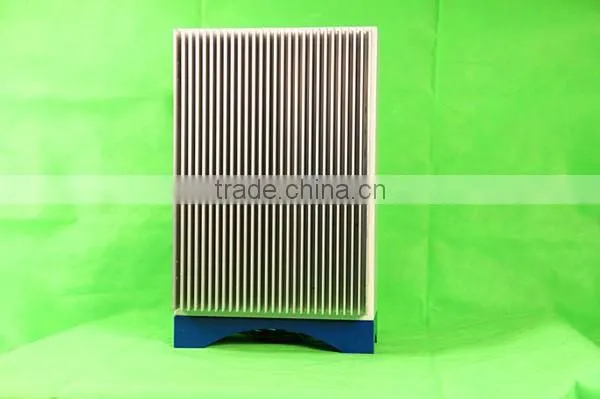

GSM850MHz PCS1900MHz dual band signal repeater for cell phone
GSM cell phone repeater 850 1900 dual band repeater wireless
GSM cell phone repeater 850 1900 dual band repeater wireless
GSM cell phone repeater 850 1900 dual band repeater wireless
GSM cell phone repeater 850 1900 dual band repeater wireless
GSM cell phone repeater 850 1900 dual band repeater wireless
To expand signal coverage of fill signal blind area where signal is weak or unavailable.
Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.
Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Packing Lots, hospital etc.
It is mainly applicable to such case:

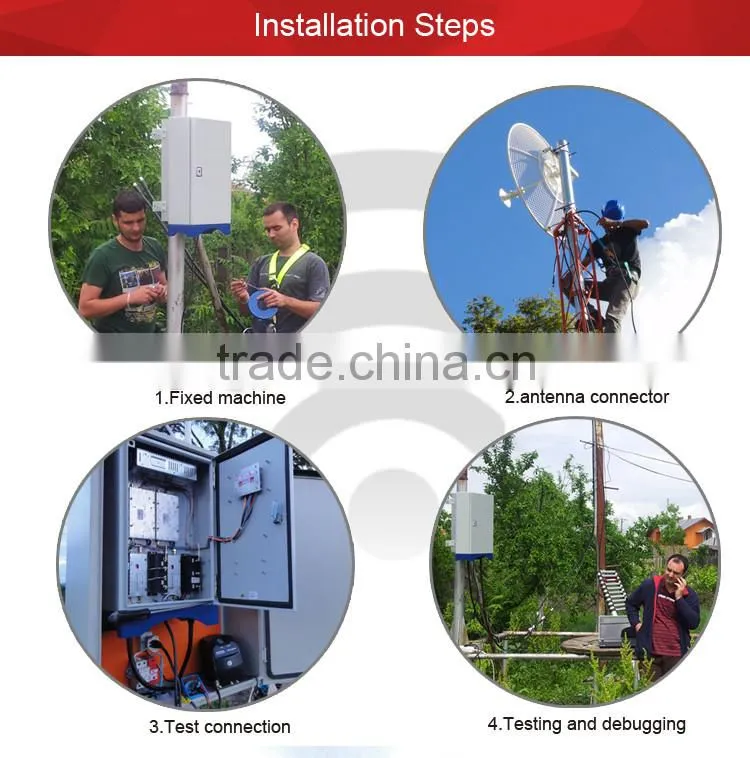

The repeater can find an installation place which can receive pure BTS signal at strong enough level as the Rx Level in repeater site should be more than -70dBm;
And can meet the requirement of antenna isolation to avoid self-oscillation.
Wa are repeater manufacturer in China for more than 10 years experience. We can do as below for your best reference:
1, According to different operators's system / frequency,, the repeater can be customized:
2g 3g 4g GSM900 Repeater,
2g 3g 4g CDMA800 Repeater
2g 4g DCS/LTE1800 Repeater,
2g PCS1900 Repeater
UMTS/WCDMA2100 Repeater ,
4G LTE700 2300 2600 repeater
iDEN Repeater / Tetra Repeater / ICS Repeater / UHF Repeater / FM Radio Repeater
2. According to different project, applications, the repeater can be:
Wireless Band Selective Repeater,
Channel Selective Repeater, Digital channel selective repeater
Frequency Shifting Repeater
Fiber Optical Repeater, Digital Fiber Optical Repeater
Trunk Amplifier
Indoor Signal Booster (DAS BDA)
3,According to different clients's request, the repeater can be:
Single Band Repeater,
Dual Band Repeater,
Tri-band Repeater;
Quad band Repeater
4, According to different coverage areas, the repeater can be:
Low power repeater: 15dBm, 17dBm, 20dBm, 23dBm etc.
Medium Power repeater: 2W(33dBm) . 5W (37dBm),
High Power repeater: 10W (40dBm), 20W(43dBm) 30W (46dBm)
Due to the requirement from different countries and different telecom operators, we advise you discuss with us first before placing orders, We would like to provide our best solutions for you!
OEM &ODM are accepted! Welcome to further discuss~
