Multi-band Industrial Wireless GSM 900 1800 2100 Triband Repeater
This Multi-band Industrial Wireless GSM 900 1800 2100 Triband Repeater works with 900/1800MHz and UMTS 2100MHz WCDMA 3G network at same time.
Enhance GSM DCS 3G Multi-band Cell Phone Signals 900 1800 2100 Wireless Cellular Signal Tri Band Repeater is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.
Features:
1, Output Power +30dBm - +43dBm for large coverage application;
2, High working gain as Min. 95dB;
3, Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink;
4, RS232 ports provide links to laptop for local setting and monitoring by built-in web interface;
5, Built-in wireless modem (Option) for remote monitoring by SMS or GPRS;
6, Details repeater parameters and status can be monitoring by Control Panel, such as temperature, output power level, gain, ATT, return loss, VSWR etc;
7, Support upgrading firmware remotely by GPRS;
8, High gain linear power amplifier technique with reliable performance;
9, Compact size and light weight, easy to install on wall or pole;
Detailed Images:
| --Multi-band Industrial Wireless GSM 900 1800 2100 Triband Repeater from Kingtone -- |
| --Multi-band Industrial Wireless GSM 900 1800 2100 Triband Repeater from Kingtone -- |
| --Multi-band Industrial Wireless GSM 900 1800 2100 Triband Repeater from Kingtone-- |
-- Multi-band Industrial Wireless GSM 900 1800 2100 Triband Repeater from Kingtone --
Specification:
Type |
Multi-band Industrial Wireless GSM 900 1800 2100 Triband Repeater |
|||
GSM 900MHz |
UL: 890-915MHz DL: 935-960MHz |
|||
DCS 1800MHz |
UL: 1710-1785MHz DL: 1805-1880MHz |
|||
| WCDMA 2100MHz | UL:1920-1980MHz DL:2110-2170MHz |
|||
Output Power |
33dBm |
37dBm |
40dBm |
43dBm |
Gain |
50-65dB |
|||
Gain Adjust Range |
≥30dB;1dB/step |
|||
AGC Range |
≥25dB |
|||
IMD3 |
≤-50dBc |
≤-45dBc |
||
Noise Figure |
≤5dB |
|||
Ripple in Band |
≤3dB |
|||
Time Delay |
≤10μs |
|||
Spectrum mask |
Meet ETSI specification |
|||
Spurious Emission |
9KHz-1GHz:≤-36dBm/30KHz;1GHz-12.75GHz:≤-30dBm/30KHz |
|||
Port Impedance |
50Ω |
|||
VSWR |
≤1.5 |
|||
Monitoring Mode |
Local;Remote(Optional) |
|||
Power Supply |
AC220V(Normal); AC110V or DC48V or Solar Powered(Optional) |
|||
Dimensions |
61*41*29cm |
61*41*29cm |
67*47*32cm |
67*47*32cm |
Weight |
22kgs |
22kgs |
26kgs |
26kgs |

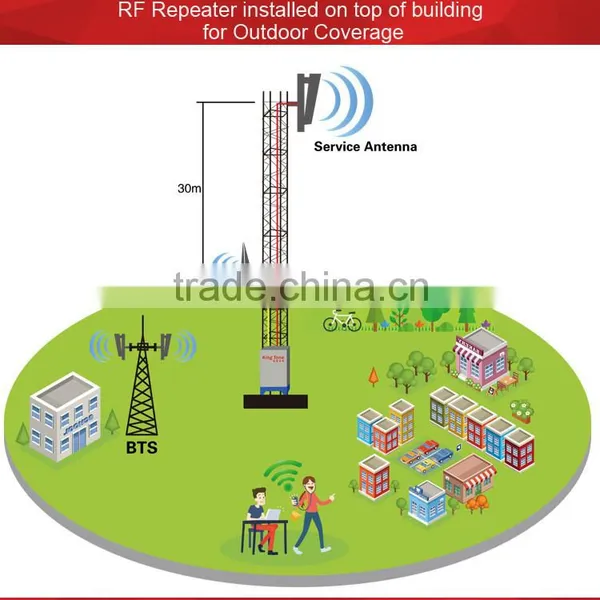

Kingtone Multi-band Industrial Wireless GSM 900 1800 2100 Triband Repeater to expand signal coverage of fill signal blind area where signal is weak or unavailable.
1, Outdoor : Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.
2, Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Packing Lots etc.
Standard Package
2) Installation kit 1PC
3) User manual 1PC

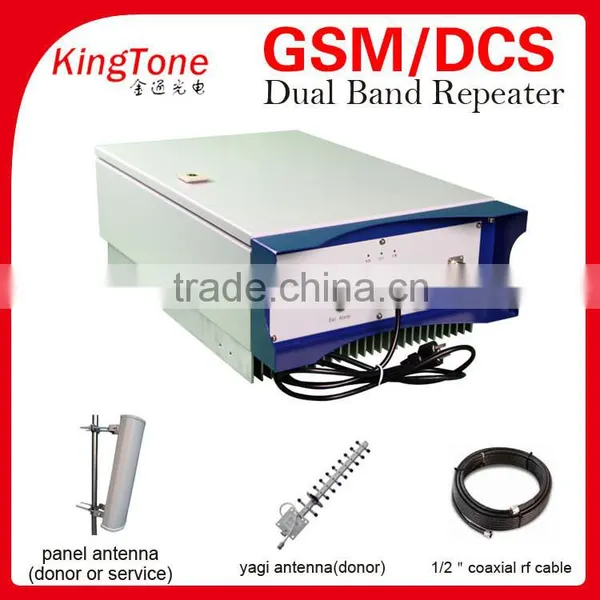

Recommended Accessories
1) Donor antenna: Outdoor Panel Antenna ( 12dBi, 824-960Mhz )
2) Service antenna: Omni Ceiling Antenna ( 3dBi,824-960MHz)
3) 1/2" RF cable with connecter ( Cable length optional)
4) Splitter, coupler
| MOQ: | 1 unit |
| Loading Port: | Xiamen, Shanghai, Guangzhou, Shenzhen |
Delivery Date |
within 10-15 days |
| Payment Method | T/T, L/C, PayPal, Western Union, Cash, Escrow |
| OEM & ODM | Customized service available |
| Packaging | Each one in box / carton packaging |
| Delivery Method | By Air, Land, Sea or By Expression Courier, such as DHL, FEDEX, TNT, UPS, EMS etc. |
Product range: GSM / CDMA / DCS / WCDMA / TETRA / LTE Wireless Full Band Repeater, Fiber Optic Repeater, Frequency Shifting Repeater, Digital / Analog Repeater, Trunk Amplifier
Support System |
Frequency Range |
Output Power |
GSM900MHZ |
890-915MHz/935-960MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
DCS1800MHz |
1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
PCS1900MHz |
1895-1910MHz/1975-1990MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA450MHz |
450-457.5MHz/460-467.5MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA800MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA1900MHz |
1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS2100MHz |
1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM900/1800MHZ |
890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/ |
GSM850/1900MHZ |
824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W |
GSM900/UMTS2100 |
890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/ |
About Kingtone:
Since 2006, Kingtone has been developing and manufacturing Repeaters included CDMA Repeater, GSM Repeater,DCS Repeater, PCS Repeater, UMTS(W-CDMA) Repeater, Tetra Repeater, iDEN Repeater, Wimax Repeater and 4G LTE Repeater etc.
Moreover, Kingtone Repeater have different types included Full Band-selective Repeater, Channel-selective Repeater, Frequency-shifting Repeater, Fiber-optical Repeater, Trunk-amplifier etc.
The repeaters can be Single-band Repeater, Dual-band Repeater and Tri-band Repeater etc. The Multiple Bands for different Mobile Operators.
As well as the repeater, the passive circuits such as Power Splitters, Directinal Couplers, POI, Connectors, Antennas etc. are in operation.
1. Q: Does OEM & ODM order available?
A: Yes, customer's Logo or design is available;
2. Q: What is the product warranty?
A: One year warranty offered for Kingtone products.
3. Q: How long can I get the products?
A: Normally 10-15 days for production, depends on order quantity.
4. Q: What is the delivery method?
A: Multiple delivery method for selection, by air, land, sea or expression courier.
5. Q: What type of system can you support?
A. Single-band repeaters of LTE/GSM/CDMA/PCS/DCS/WCDMA
B. Dual-band repeater of GSM/DCS; GSM/WCDMA; CDMA/PCS;
C. Tri-band repeater of GSM/DCS/WCDMA
D,Trunk Amplifier
E. All kind of Antenna/Splitter/Connector/Cable
For more details of Multi-band Industrial Wireless GSM 900 1800 2100 Triband Repeater,welcome you to contact us now!
|
