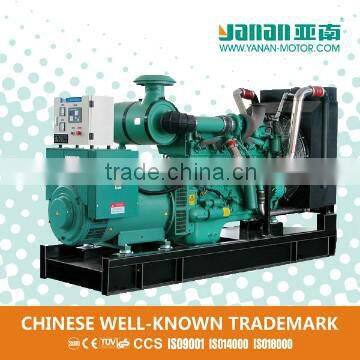

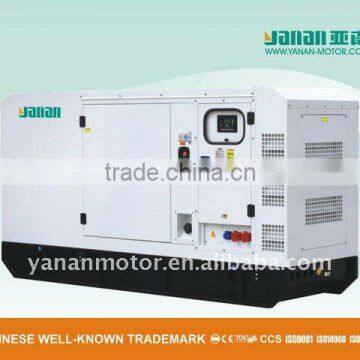

Yanan Water-cooled Diesel Generator Set
One of the largest scales and most comprehensive manufacturer for alternator, generators, electric motors and water pumps in China.
Our Advantages:
1. Reliable Performance:
Reliable Performance is the major advantage of YANAN products, and this reliability is based on the outstanding design in every aspect and strict Q.C. System.
2. Customer First:
We devote ourselves to develop products to meet customers' requirements .Our engineer develop and design new products for customers.
3. Technical Support and Service
:our engineer team will solve your technical problems within 48 hours.
4. Strict test process before ex-factory :
Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.
5. Certification:
CE,ISO,UL,TUV,CCS,SONCAP etc.
1. Product Overview
1) Brand-new engine, start motor.
2) Brushless alternator, single bearing, flange connection, IP22, H class insulation , with AVR
3) Auto control panel with LCD display.
4) Engine mounted battery-charging alternator, Genset with battery charger of main supply.
5) Circuit Breaker, Exhaust Silencer
6) Copper Radiator for 40°C ambient temperature and double-deck cooling, with fan guard and front guard
7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable
8) Skid-mounted bottom 8 hours fuel tank.
9) External recessed emergency stop button for extra safety
10) Optional: Soundproof, ATS (automatic transfer switch), AMF panel, Trailer, Parallel system
YANAN BRAND PRODUCTS MAINLY INCLUDE:
1.Diesel generating sets:9-2500kva
2.Gas generator set:500-2500kva
3. CCHP
4. ATS
5. SWITCHGEAR
Yanan Brand Diesel generating sets with features of convenient configurations , simple installation, easy operation, excellent transient response ability, stable performance and high fuel efficiency, will meet the regulations of emission around the world.
We, Yanan ,will provide you the complete power system with one-step service, and offer you the excellent service which will increase the life of power system and reduce the cost of investment & maintenance.
We also provide A turkey project support from the global scope.
2. Engine Detail
| Diesel engine model | 6BT5.9-G2 |
Frequency |
60Hz |
| Phase | 3 |
| Voltage | 400v /440v |
| Speed | 1800rpm |
| Engine Characters | vertical Type 4-stroke,direct injestion |
| Bore(mm)*Stroke(mm) | 102*120 |
| Combustion | Direct injection |
| Cooling System | Radiator |
| Starting system | Electric |
Alternator Detail
| Model | SLG274C |
| Continuous output (kw/kva) | 94/118 |
| Soundproof type dimensions (L*W*H)mm | 2250*940*1450 |
| Fuel tank capacity (L) | 70 |
Packed & Delivery Time:
Package Detail: Packed in standard seaworthy packing such as air bubble plastic bag
Delivery Time Detail: within 10 days to 28 days (2 or 4 weeks)
To meet your need is our pleasure,please feel free to contact with us if some generators meet your demands!
