800mhz amplifier signal gsm repeater cell 850mhz
800mhz amplifier signal gsm repeater cell 850mhzis designed to solve problems of wak mobile signal, which is much cheaper than adding a new base station (BTS).Main operation of the repeaters are to receive lower-power signal from BTS via RF transmission and then transmit the amplified signal to the areas where network coverage is inadequate.And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.
Technical Specification:
Item |
800mhz amplifier signal gsm repeater cell 850mhz |
||
Frequency Range |
Uplink |
890-915MHz / 1710-1785MHz |
|
Downlink |
935-960MHz / 1805-1880MHz |
||
|
Output Power |
Uplink |
+33dBm |
|
Downlink |
+40dBm |
||
Working Bandwidth |
Various bandwidth is available upon request |
||
Gain |
Min. 90dB |
||
Gain Control Range |
31dB (1dB Step) |
||
VSWR |
< 1.5 |
||
Ripple in Band |
Max +/- 1.5dB |
||
|
Spurious Emissions |
9KHz-1GHz |
Max -36dBm |
|
1GHz-12.75GHz |
Max -30dBm |
||
ACPR |
≤-45dBc |
||
≤-55dBc | |||
RF Connector |
N-type Female |
||
I/O Impedance |
50 ohm |
||
Noise Figure |
Max 5dB |
||
Group Time Delay |
Max 5µS |
||
Temperature Range |
-25 degree Celsius to +55 degree Celsius |
||
Relative Humidity |
Max 95% |
||
MTBF |
Min. 100000 hrs |
||
Power Supply |
DC -48V / AC220V (+/-15%), 50Hz |
||
UPS Backup Power Supply (Optional) |
6 hours / 8 hours |
||
Power Consumption |
Max 250W |
||
NMS Monitor Function |
Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power, Gain, Uplink ATT, Downlink ATT and etc. |
||
Remote Control Module (Optional) |
RS232 or RJ45 + Wireless Modem + Chargeable Li-ion Battery |
||
800mhz amplifier signal gsm repeater cell 850mhz
Features:
1,Output Power +30dBm - +43dBm for large coverage application;
2,High working gain as Min. 95dB;
3,Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink;
4,RS232 ports provide links to laptop for local setting and monitoring by built-in web interface;
5,Built-in wireless modem (Option) for remote monitoring by SMS or GPRS;
6,Details repeater parameters and status can be monitoring by Control Panel, such as temperature, output power level, gain, ATT, return loss, VSWR etc;
7,Support upgrading firmware remotely by GPRS;
8,High gain linear power amplifier technique with reliable performance;
9,Compact size and light weight, easy to install on wall or pole;

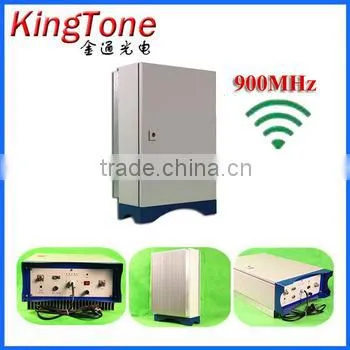

Detailed Images:
800mhz amplifier signal gsm repeater cell 850mhz
| -- 800mhz amplifier signal gsm repeater cell 850mhz-- |
| -- 800mhz amplifier signal gsm repeater cell 850mhz-- |
| -- 800mhz amplifier signal gsm repeater cell 850mhz-- |
| -- 800mhz amplifier signal gsm repeater cell 850mhz -- |
Typical Application:
China Amplificador Repetidor de Sinal Celular 850 900 1800MHz Repetidor Celular Gsm to expand signal coverage of fill signal blind area where signal is weak or unavailable.
Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.
Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Packing Lots etc.
It is mainly applicable to such case:
2) Installation kit 1PC
3) User manual 1PC

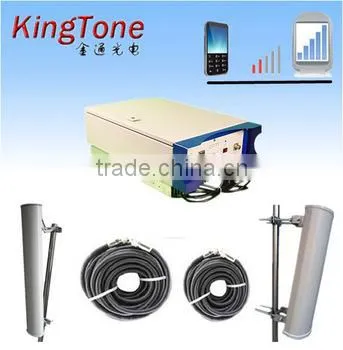

Recommended Accessories
1) Donor antenna: Outdoor Panel Antenna ( 12dBi, 824-960Mhz )
2) Service antenna: Omni Ceiling Antenna ( 3dBi,824-960MHz)
3) 1/2" RF cable with connecter ( Cable length optional)
4) Splitter, coupler
| MOQ: | 1 unit |
| Loading Port: | Xiamen, Shanghai, Guangzhou, Shenzhen |
Delivery Date |
within 10-15 days |
| Payment Method | T/T, L/C, PayPal, Western Union, Cash, Escrow |
| OEM & ODM | Customized service available |
| Packaging | Each one in box / carton packaging |
| Delivery Method | By Air, Land, Sea or By Expression Courier, such as DHL, FEDEX, TNT, UPS, EMS etc. |
Since 2006, Kingtone has been developing and manufacturing Repeaters included CDMA Repeater, GSM Repeater 900 1800,DCS Repeater, PCS Repeater, UMTS(W-CDMA) Repeater, Tetra Repeater, iDEN Repeater, Wimax Repeater and 4G LTE Repeater etc. Moreover, Kingtone Repeater have different types included Full Band-selective Repeater, Channel-selective Repeater, Frequency-shifting Repeater, Fiber-optical Repeater, Trunk-amplifier etc. The repeaters can be Single-band Repeater, Dual-band Repeater and Tri-band Repeater etc. The Multiple Bands for different Mobile Operators.
As well as the repeater, the passive circuits such as Power Splitters, Directinal Couplers, POI, Connectors, Antennas etc. are in operation.
At Present, Kingtone exhibited the highest quality products and enterprise’s comprehensive strength. And Kingtone continues to strengthen technological innovation on repeater products and will launch the new products on the market soon.
With your supports and new requirements which can make us improve our service, innovative our technology and consummate the products.
OEM & ODM are welcome!
OEM & ODM are welcome!
FAQ
1. Q: Does OEM & ODM order available?
A: Yes, customer's Logo or design is available;
2. Q: What is the product warranty?
A: One year warranty offered for Kingtone products.
3. Q: How long can I get the products?
A: Normally 10-15 days for production, depends on order quantity.
4. Q: What is the delivery method?
A: Multiple delivery method for selection, by air, land, sea or expression courier.
5. Q: What type of system can you support?
A: System like TETRA, CDMA, GSM, DCS, 3G, 4G, details showed as below:
Product range: GSM / CDMA / DCS / WCDMA / TETRA / LTE Wireless Full Band Repeater, Fiber Optic Repeater, Frequency Shifting Repeater, Digital / Analog Repeater, Trunk Amplifier |
Support System |
Frequency Range |
Output Power |
GSM900MHZ |
890-915MHz/935-960MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
DCS1800MHz |
1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
PCS1900MHz |
1895-1910MHz/1975-1990MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA450MHz |
450-457.5MHz/460-467.5MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA800MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA1900MHz |
1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS2100MHz |
1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM900/1800MHZ |
890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W |
GSM850/1900MHZ |
824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W |
GSM900/UMTS2100 |
890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W |
Wa are repeater manufacturer in China for more than 10 years experience. We can do as below for your best reference:
1, According to different operators's system / frequency,, the repeater can be customized:
2g 3g 4g GSM900 Repeater,
2g 3g 4g CDMA800 Repeater
2g 4g DCS/LTE1800 Repeater,
2g PCS1900 Repeater
UMTS/WCDMA2100 Repeater ,
4G LTE700 2300 2600 repeater
iDEN Repeater / Tetra Repeater / ICS Repeater / UHF Repeater / FM Radio Repeater
2. According to different project, applications, the repeater can be:
Wireless Band Selective Repeater,
Channel Selective Repeater, Digital channel selective repeater
Frequency Shifting Repeater
Fiber Optical Repeater, Digital Fiber Optical Repeater
Trunk Amplifier
Indoor Signal Booster (DAS BDA)
3,According to different clients's request, the repeater can be:
Single Band Repeater,
Dual Band Repeater,
Tri-band Repeater;
Quad band Repeater
4, According to different coverage areas, the repeater can be:
Low power repeater: 15dBm, 17dBm, 20dBm, 23dBm etc.
Medium Power repeater: 2W(33dBm) . 5W (37dBm),
High Power repeater: 10W (40dBm), 20W(43dBm) 30W (46dBm)
Due to the requirement from different countries and different telecom operators, we advise you discuss with us first before placing orders, We would like to provide our best solutions for you!
OEM &ODM are accepted! Welcome to further discuss~
