Specifications
15 years specializing in the production, excellent design, high standards of product quality and good service.Product overview:

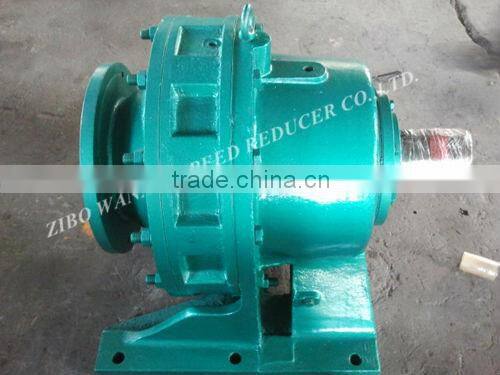

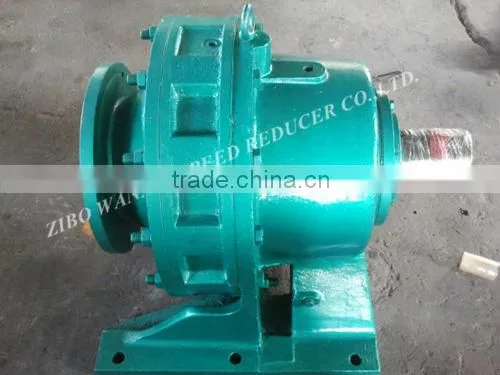

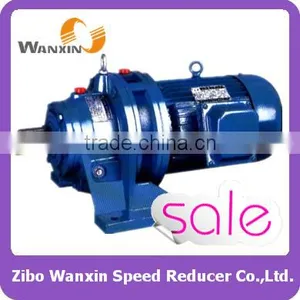

BWD (with motor) cycloid reducer in few teeth difference planetary transmission principle, a mechanical gearing cycloidal gear to realize deceleration.
The machine is divided into horizontal, vertical, biaxial and direct connection, assembly, is the preferred equipment in metallurgy, mining, construction, chemical, textile, light industry and other industries.
Product features:
1, cycloid reducer big reduction ratio, high efficiency: a reduction gear ratio is 9~87, the two-stage reduction gear ratio is 121 ~ 5133, multistage combination can reach tens of thousands, and the needle tooth meshing line type rolling friction, the meshing surface no relative sliding, so a reduction efficiency of 94%.
2, pin wheel reducer smooth running, low noise: the teeth contact at the same time when in operation, the coincidence degree high, stable running, strong overload capacity, low vibration and noise, a variety of models, small noise.
3, the use of reliable, long life: because the main part is made of high carbon alloy steel quenching (HRC58-62), and then grinding, and cycloid gear and pin gear set mesh transfer to the pin gear form rolling friction pair, friction coefficient is small, so that the meshing zone no relative sliding, wear small, so durable.
4, compact structure, small volume: compared with other reducer with the power of the above weight, small volume 1/3, as is the planetary transmission, the input shaft and the output shaft in the same axis, in order to obtain the smallest possible size.
Technical parameters:
Power: 0.37KW ~ 55KW
Torque: 150N · m and 20000N · M
Transmission ratio: single stage: 9-87
2-stages: 121-7569
3-stages : 2057-658503
Models:
Welcome to request catalog and more parameters from us.

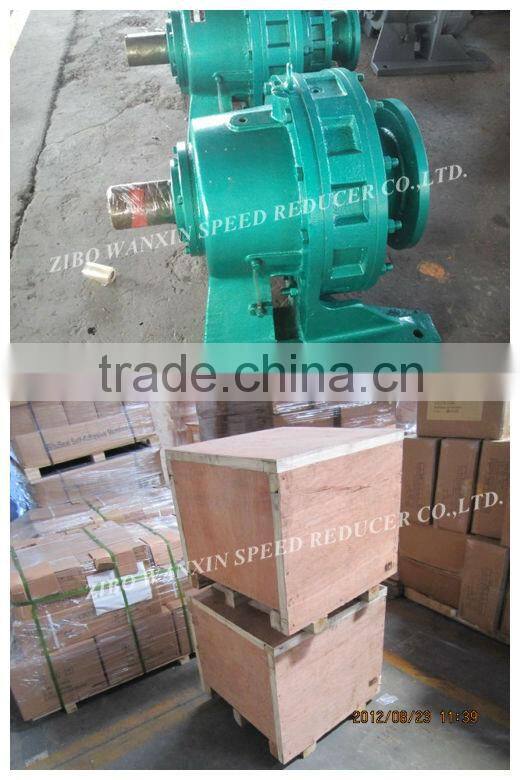

Package type:
Wooden case
Factory general:
ZIBO WANXIN SPEED REDUCER CO.,LTD. , with 15 YEARS of reducers production, powerful technical force, and complete inspection measures, quality Management System is in conformity with GB/T19001-2000-ISO9001:2000 standard.
We promise:
We will be excellent quality, patient services, and for your sake production speed, to return you to our trust and support.
