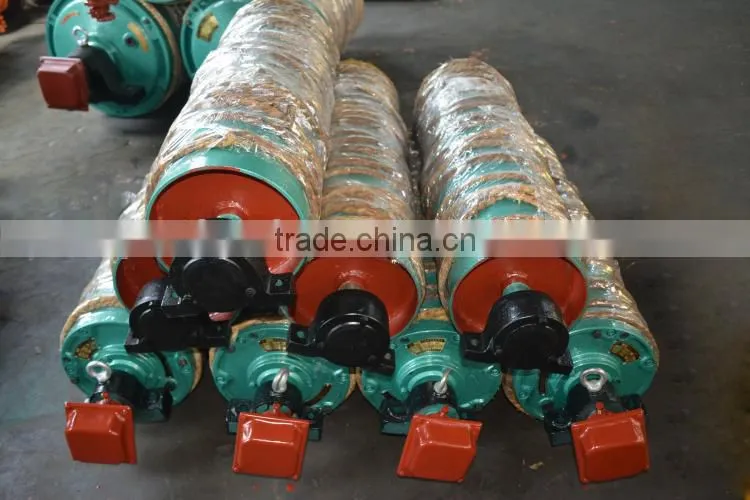

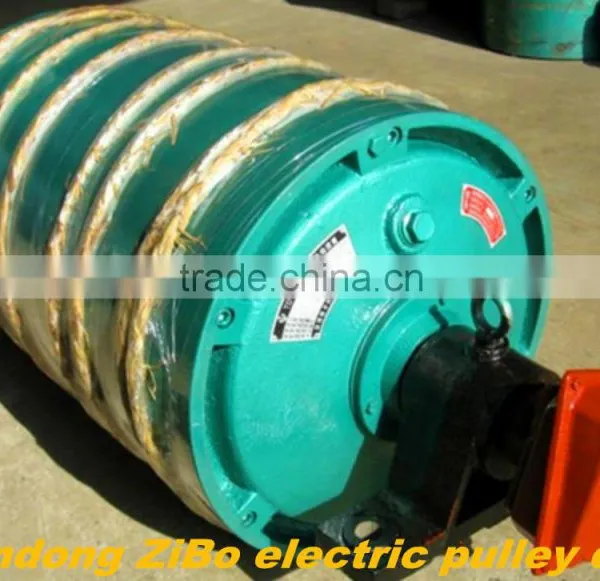

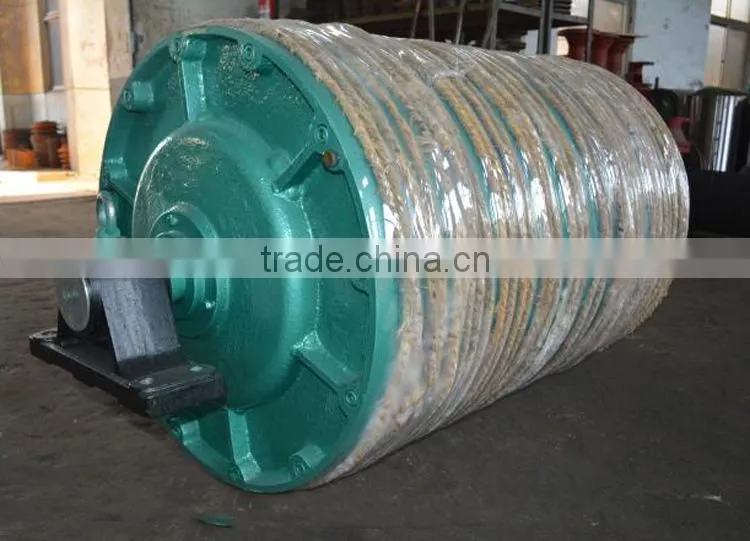

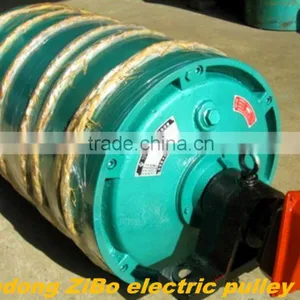

Help CenterTDY75 Motorized Roller Pulley Oil-cooled Electric Drum Pulley
Related Products
-
QY Series Crane Gearbox Speed Reducer Crane Hoist Gear BoxUS$ 450 - 2,000MOQ: 1 Set -
Belt Conveyor Drive Roller Pulley Drum for Mining Cement ConveyorUS$ 120 - 3,000MOQ: 1 Set
-
Electric Belt Conveyor Drive Pulley DrumUS$ 120 - 3,000MOQ: 1 Set
-
Conveyor Pulley Roller Rubber Lagging DrumUS$ 120 - 3,000MOQ: 1 Set
-
Conveyor Tail Bend PulleyUS$ 120 - 3,000MOQ: 1 Set
This type pulley drum is the general drive device for DT, DT Ⅱ fixed belt conveyor, its internal structure is fixed axis double gear transmission, widely used. Compared with the speed reducer, it has neat appearance, high efficiency. It could work under the dust, wet muddy conditions. According to the requirement of customer, it can be made into three reduction transmission (0.08-0.63 m/s of low speed).
According to the conditions of application, can meet the following requirement:
A.Assembled with a backstop device, ensure no-return rotation, prevent slipping when stopping the conveyor belt.
B.Roller is convered with layer of herringbone, diamond and other decorative pattern , in order to improve the capacity of the traction belt.
Working conditions:
1. The working temperature is from -15 ℃ to 40 ℃;
2. The height is not more than 1000 meters above sea level,
3. The temperature of the conveying material should be less than 60 ℃;
4. Voltage 380 v, frequency 50 hz.
| Diameter of drum | 320,400,500,630,800,1000(mm) |
| Type | TYD75 |
| Belt width | 500, 650, 800, 1000, 1200, 1400(mm) |
| Power | 1.5, 2.2, 3, 4, 5.5, 7.5, 11, 15, 18.5, 22, 30, 37, 45 |
| Velocity of pulley surface | 0.8 ~ 4.0 m/s |
| Surface | smooth steel surface, rubber surface |
| Application | used in coal mine, steel industry, cement industry and so on. |
| Service life | more than 30000 hours |
1,We are ready to provide you with technical advices and support.
2,Before product acceptance, we will answer all of your questions in a timely manner, provide technical support.
3,Our technical services group will provide technical support for products repair and maintenance.
4,Our commitment is to create even more value for you, keep a close contaction relationship with our customers.
Fifteen years' hard-working has accomplished our leadership in power transmission industry. We have a most experienced worker group in our company. We own the most advanced processing equipment and testing equipment. Our product has been exported to Europe, Southeast Asia, the Middle East, Africa, South America and many other countries and regions. They are widely used in metallurgy, mining, petrochemical, tobacco, ceramics, rubber, food, beverages, transportation and other industries. Our products have the excellent quality of high stability , the advanced performance and competitive prices. The most powerful design group is working for you.
