Kingtone mobile signal booster 3G signal repeater 10km wireless repeater booster 5watts repetidor rf repeater with low price
Kingtone mobile signal booster 3G signal repeater 10km wireless repeater booster 5watts repetidor rf repeater with low price
Main Features:
1.High linearity PA
2.High system gain
3.Intelligent ALC technology
4.Full duplex and high isolation from uplink to downlink
5.Automatic opearation convenient operation
6.Integrated technique with reliable performance.
7.Bandwidth can be configured from 0.2-25MHz in work band.
8.Local and remote monitoring (optional)with automatic fault alarm & remote control
9.Weatherproof design for all-weather installation.

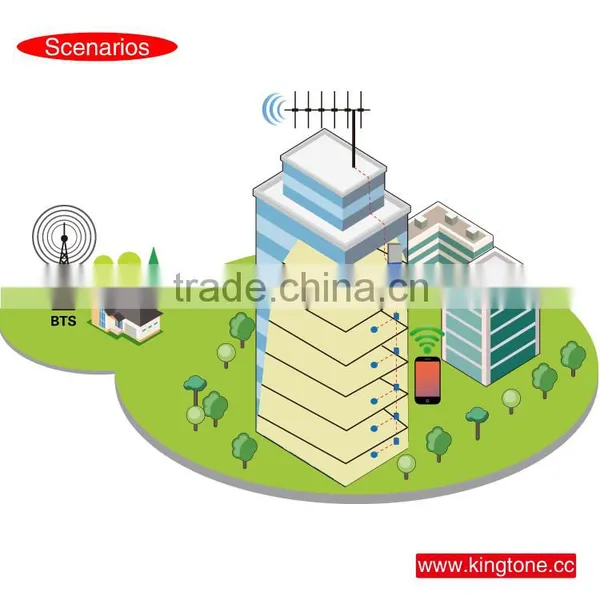

Application:
To expand signal coverage of fill signal blind area where signal is weak or unavailable.
Outdoor:Airports,Tourism Regions,Golf Courses,Tunnels,Factories,Mining Districts,Villages etc.
Indoor:Hotels,Exhibition Centers,Basements,Shoppingg Malls,Offices,Parking lot etc.
It is mainly applicable to such case:
The repeater can find an instalation place which can receive pure BTS signal at strong enough level as the Rx level in repeater site should be more than -70dBm.
And can meet the requirement of antenna isolation to avoid self-oscillation.
Kingtone mobile signal booster 3G signal repeater 10km wireless repeater booster 5watts repetidor rf repeater with low price
Items |
Testing Condition |
Specification |
|||
Uplink |
Downlink |
||||
Working Frequency(MHz) |
Nominal Frequency |
1920 – 1980MHz |
2110 - 2170MHz |
||
Gain(dB) |
Nominal Output Power-5dB |
95±3 |
|||
Output Power (dBm) |
GSM modulating signal |
33 |
40 |
||
ALC (dBm) |
Input Signal add 20dB |
Po≤±1 |
|||
Noise Figure (dB) |
Working in-band(Max. Gain) |
≤5 |
|||
Ripple in-band (dB) |
Nominal Output Power -5dB |
≤2.0 (3.84MHz) |
|||
Time Delay (us) |
Working in-band |
≤5 |
|||
EVM(%) |
Working in-band |
≤12.5 |
|||
PCDE (dB) |
Working in-band |
≤35 |
|||
ACLR(dBc) |
±5MHz |
Working in-band |
≥-45 |
||
±10MHz |
Working in-band |
≥-50 |
|||
Gain Adjustment Step (dB) |
Nominal Output Power -5dB |
1dB |
|||
Gain Adjustment Range(dB) |
Nominal Output Power -5dB |
≥30 |
|||
Gain Adjustable Linear(dB) |
10dB |
Nominal Output Power -5dB |
±1.0 |
||
20dB |
Nominal Output Power -5dB |
±1.0 |
|||
30dB |
Nominal Output Power -5dB |
±1.5 |
|||
Spurious Emission(dBm) |
9kHz-1GHz |
BW:30KHz |
≤-36 |
≤-36 |
|
1GHz-12.75GHz |
BW:30KHz |
≤-30 |
≤-30 |
||
VSWR |
BS/MS Port |
1.5 |
|||
I/O Port |
N-Female |
||||
Impedance |
50ohm |
||||
Operating Temperature |
-25°C ~+55°C |
||||
Relative Humidity |
Max. 95% |
||||
MTBF |
Min. 100000 hours |
||||
Power Supply |
DC-48V/AC220V(50Hz)/AC110V(60Hz)( ±15%) |
||||
Remote Monitoring Function |
Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power |
||||
Remote Control Module |
RS232 or RJ45 + Wireless Modem + Chargeable Li-ion Battery |
||||
Kingtone mobile signal booster 3G signal repeater 10km wireless repeater booster 5watts repetidor rf repeater with low price
Kingtone mobile signal booster 3G signal repeater 10km wireless repeater booster 5watts repetidor rf repeater with low price
1.New products:ICS Repeater;IMSi Catcher
2.Hot Products:Wireless band selective repeater; Fiber Optic Repeater...
Kingtone mobile signal booster 3G signal repeater 10km wireless repeater booster 5watts repetidor rf repeater with low price
