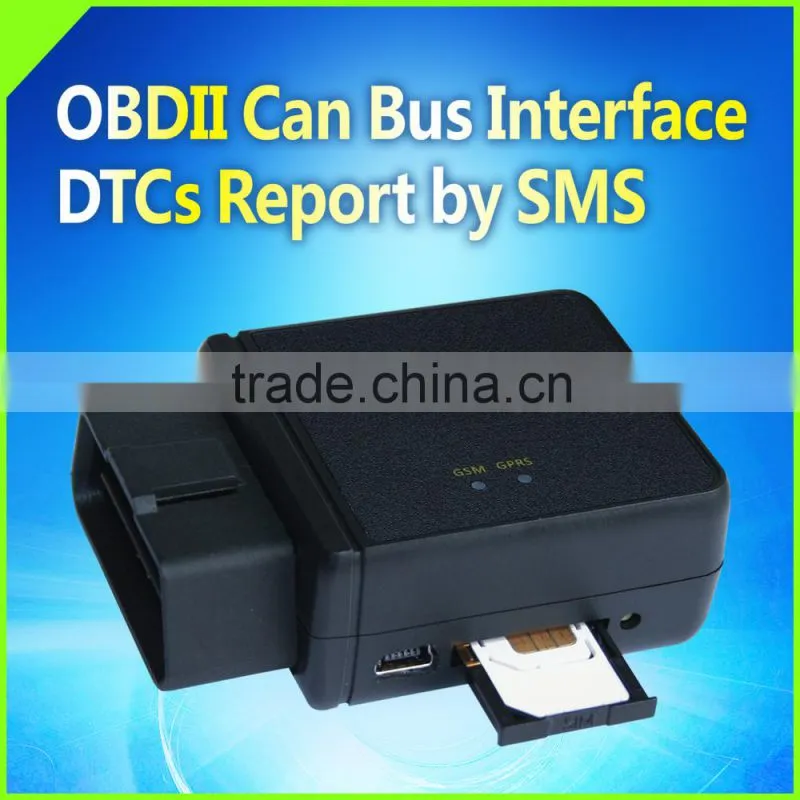

obd2 sim card gps tracker with diagnostic function

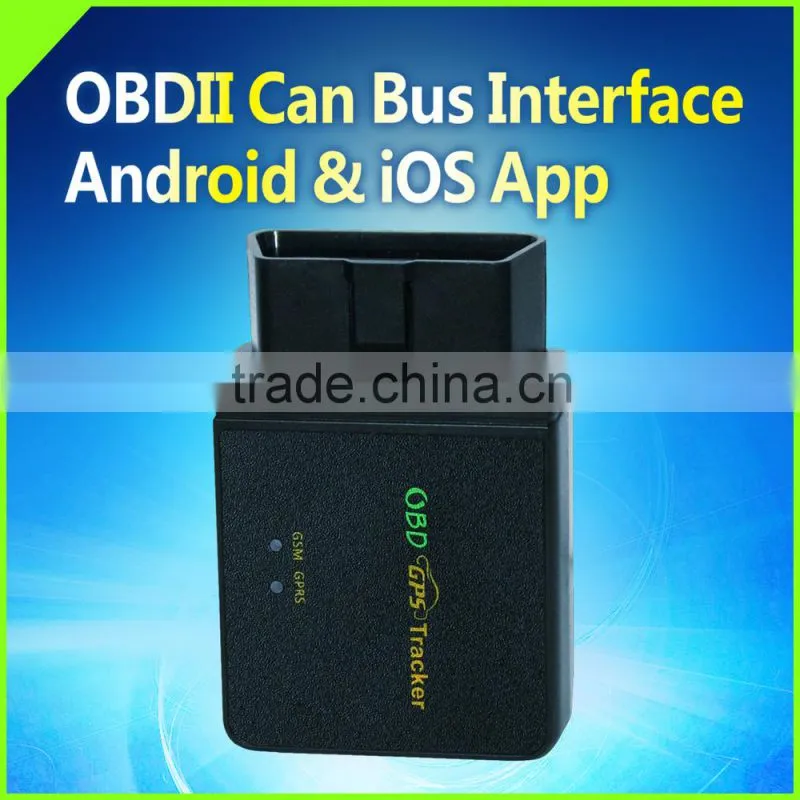

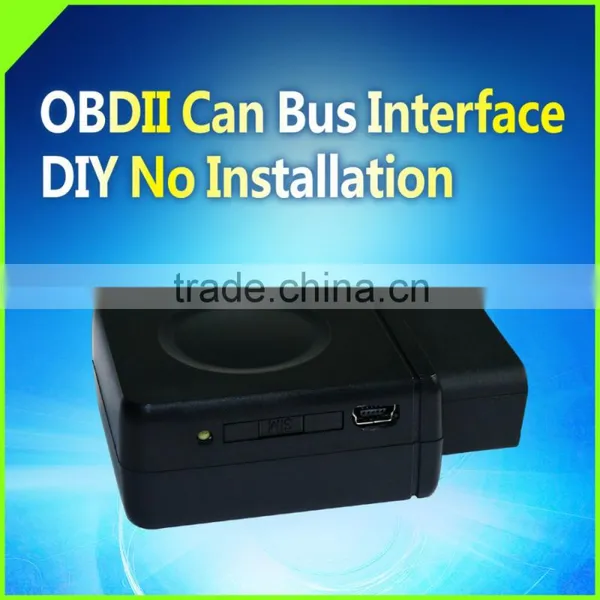

- OBD II interface, DIY no installation

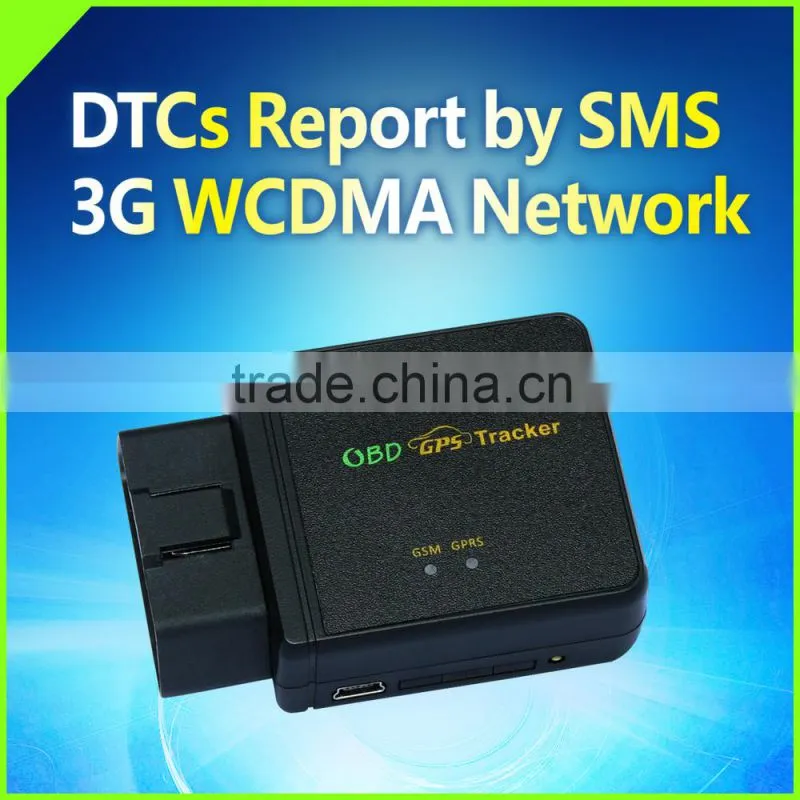

- Online diagnostic, SMS reply car DTC & car status

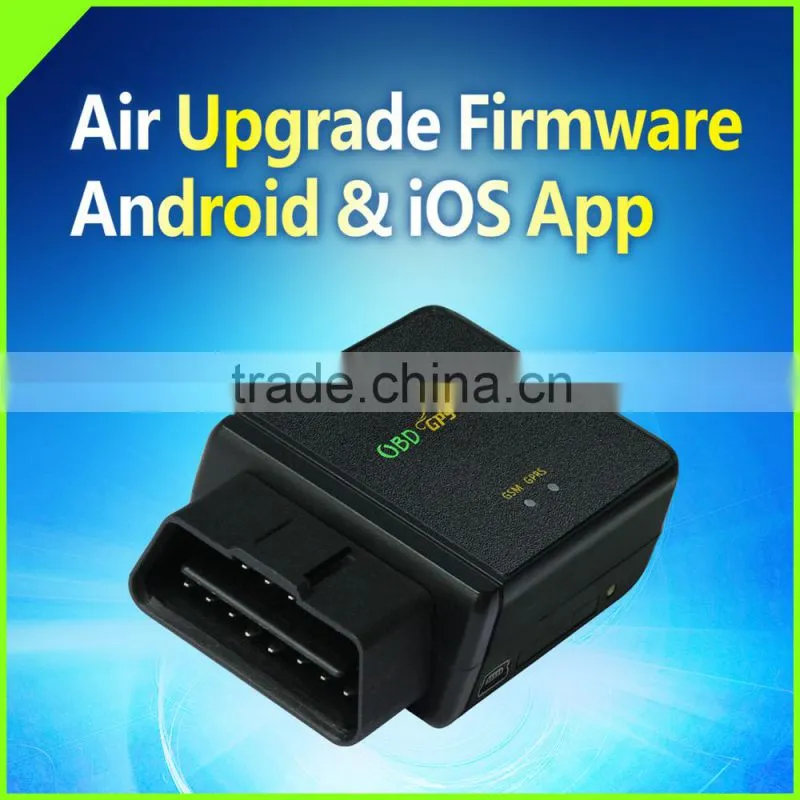

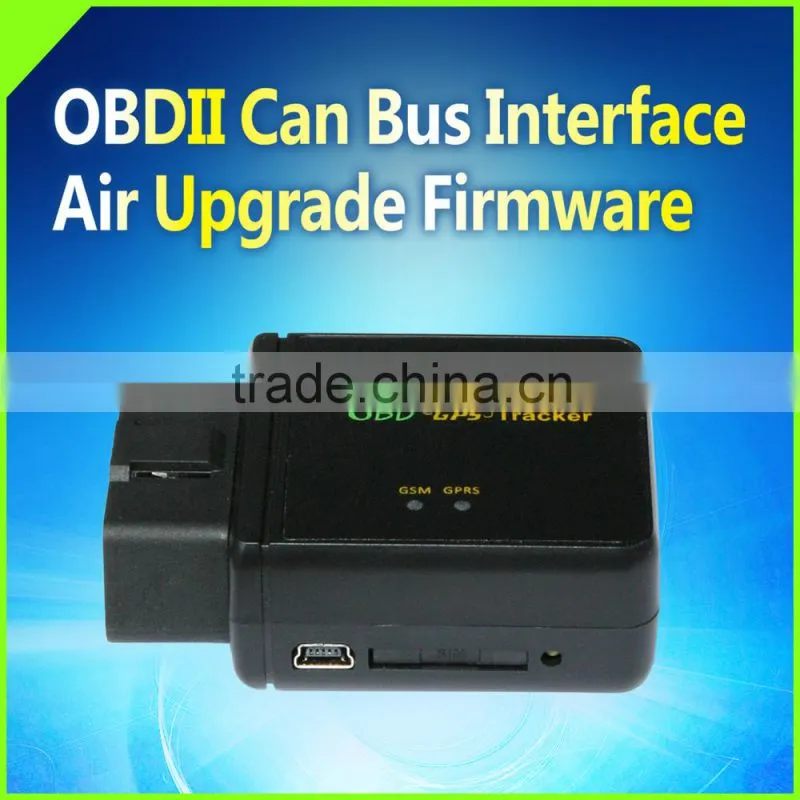

- Online software GPRS air upgrade
- Auto download & configure APN & GPRS, Also can be set by SMS
- Tracker SIM card money balance SMS checking
- Built in microphone for listen sound in car
- Cell ID locate (base station locate) without GPS
- Built in memory to record track without GSM network
- Working Method: GPS located + upload with GPRS GSM network
- Upload current location to internet server
- Built in GSM & GPS high sensitive antenna
- Built in rechargeable battery for power down alarm & tracker removed
- Shock alarm (calling alarm & SMS sending) can be used as car alarm
- Power down alarm & shock alarm can be sent by SMS or calling
- Wide working voltage (9-45V), Car,& truck all can be used
- Sending SMS to set GPS tracker, easy to use
- GPS operating need password to protect user privacy
- Use high sensitivity GSM & GPS module
- Stop uploading after stop moving 2 minutes to save car battery life
- Built in move sensor, begin uploading immediately if car begin to move
- Device can be located by SMS or calling without platform server
- If the object enters no GPS area, it will report the last position tracked
- Upload IP address can be set by SMS
- Platform & tracker manual can be read & download on platform
- Tracker working status & setting can be check by SMS
- Life time free platform Service charge (Our free platform )
- Distributor can apply charging GPS tracking service with our assistance
- Muli-Level user for Agent / distributor / fleet / single user etc.
- Personal domain name & login page with customer logo can be applied
- Open GPRS protocol to client for adding protocol to platform
- Support iPhone & Android App / WeChat / SMS / Calling locate
- Platform user password can be changed by user to protect user privacy
- Over speed alarm / Geo-fence break alarm can be set on platform
- Running report can be read & export by month and day
- Compatible with IE / Fire fox / Chrome / Safari, not necessary download software
- History tracking data keep 6-12 months
- Suit for cars / bus / truck / taxi / rent cars etc.
- Tracking platform: www.999gps.net, Demo user:123456,Password:123456
- OBD II interface, DIY no installation
- Online diagnostic, SMS reply car DTC & car status
- Online software GPRS air upgrade
- Auto download & configure APN & GPRS
- Tracker SIM card money balance SMS checking
- Built in microphone for listen sound in car
- Cell ID locate (base station locate) without GPS
- Built in memory to record track without GSM network
- Shock alarm (calling alarm & SMS sending) can be used as car alarm
- Support iPhone & Android App locate / WeChat locate / SMS locate
- Life time no platform Service charge (Our free tracking platform)
Main Dimension: 70mm*47mm*24mm
Main weight: 55g
Package: Color box
Package Dimension: 130mm*92mm*58mm Weight: 0.30kg
GSM Module |
SIMCOM |
GPS Module |
u-Blox or MTK |
GSM Frequency |
850/900/1800/1900Mhz (4 Band) |
GPS channel |
24 channels |
GSM / GPS Antenna |
Built in |
Locate precision |
10-20 Meters |
GPS Cold Start Time |
36 seconds |
GPS Hot Start Time |
1 second |
Working Voltage |
9-40V DC |
Recharging Current |
< 5V/100mA |
Standby Current |
< 10 mA |
Uploading Current |
<100mA / 12V |
Battery |
180mAh |
Working Temperature |
-20 0C to +55 0C |
Absolute Temperature |
-35 0C to +70 0C |
Storage Temperature |
-40 0C to +80 0C |

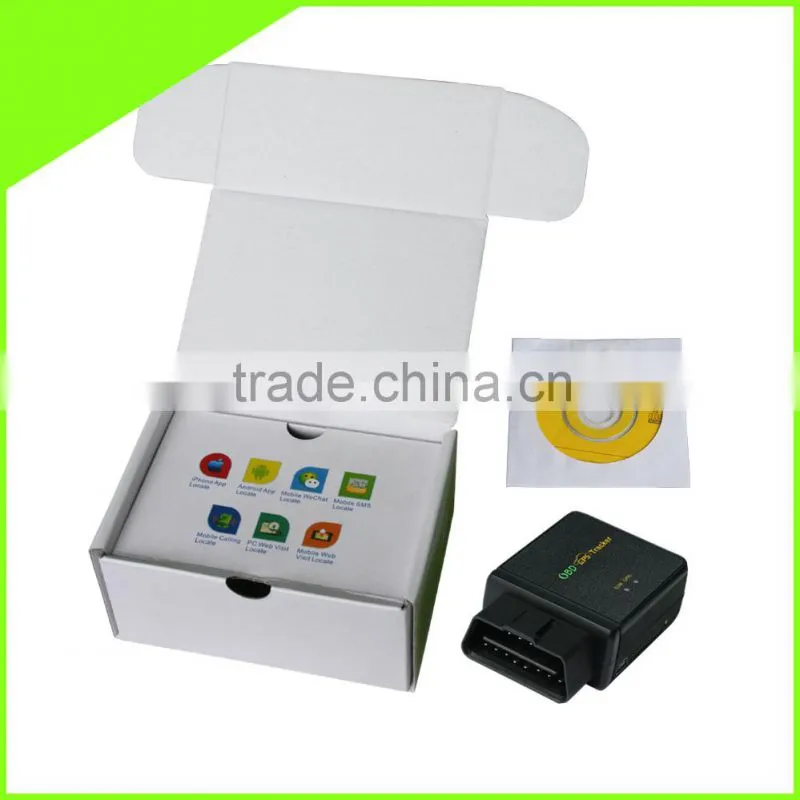

1 main unit, 1 tracker manual(CD or Print), 1 platform manual (CD or Print).
Free APP download
General app download link :
Iphone app download link: Android app download link:
/us/app/gpstrack1/ /d/gpstrack_en.apk
obd2 sim card gps tracker with diagnostic function obd2 sim card gps tracker with diagnostic function obd2 sim card gps tracker with diagnostic function
