latest technology tmt bar rolling machine

Technical project brief introduction

-- Production line with annual capacity: According to your demand,100,000.00MT at least, automatic continuous rolling mill applied.

-- Billet size: 150*150*12000mm

-- Product specifications: Ø8-Ø32mm, 12000mm length rebar

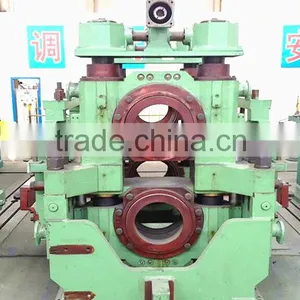

-- Roughing rolling mill stands: Ø550 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands.

-- Intermediate rolling mill stands: Ø420 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands.

-- Finishing rolling mill stands: Ø320 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands. 3 of the rolling mill stands are horizontal/vertical interchangeable rolling mill stands.

-- Rolling speed: 12-18meters/second.

1. Product

Material: carbon steel, structure steel, low alloy steel

Product specification: bar/rebar/wire rod Ø 6 to Ø 32 mm

2. Raw material

The production line is supposed to use continuous casting billet with size of 150*150*12000mm The allowable tolerance for section dimension of billet should be in accordance with the regulation of YB-2011-83.

3. Process layout

Roughing mill stands Ø550 X 6 (H/V) No.1 to No.6 mill stands -- Intermediate mill stands Ø420 X 6 (H/V) No.7 to No. 12 mill stands -- Finishing mill stands Ø320 X 6 (H/V) No.13 to No.18 mill stands, all mill stands driven by DC motor and continuous rolling method applied. Rolling mill No.14, 16 and 18 are Ø320 H/V interchangeable rolling mill stands

4. Process flow

Company brief introduction

Machinery Manufacturering and Supply

high speed wire rod rolling mill,

high speed deformed rebar rolling mill,

roughing rolling mills, intermediate rolling mill, pre-finishing rolling mills and finishing rolling mills,

spare parts ( roller box, gearbox reduction, coil laying head, vertical and horizontal loopers, flying shears, chopping shears and gripping shears )required in rolling mill production line.

Design, manufacture,install, debug, after sales service overseas as customers’ request

•   We customize the products according to the customers’ requirements.
•   If you are not sure about the exact product you want,we can give you some advices according to your factory’s area, annual capacity, raw material and your finished products.
•  We provide the methods of the maintenance of products.
•  Engineers are available to service machinery overseas.

Q: Are you a manufacturer or trading company?

A: Xi'an Weikeduo Electrical & Mechanical Equipment Co., Ltd. is a  ISO 9001:2008certified manufacturer  engaged for the last 20 Years in  Manufacturing and Supply of Complete Steel Rolling Mills in the Country as well as export in   Nigeria, Thailand, Indonesia, Vietnam , Myanmar and  Middle East countries,  and also in certain African Countries.

Q: Where is your factory located? How can I visit there?

A: Our factory is located in Xi’an City, Shaanxi Province,China.

All our clients, from home or abroad, are warmly welcome to visit us!

Q: How does your factory do regarding quality control?

A: Quality is priority.

Our enterprise owns perfect quality guarantee system and an excellent quality management team, in 2001, our factory passed the ISO9001 quality system certificate.

Weikeduo’s quality policy:

Leading technology   Quality-oriented

Customers first       Continuous Improvement

Q: Why choose us?

A: Xian Weikeduo Electric & Mechanical Equipments Co., Ltd is the high speed rolling mill leader, with the experienced staff team and own technique patents;

Our company has been certified by ISO9001:2008 and SGS;

Our company registered the brand name "Hangji" in 2008, since then, HangJi brand rolling mills have been exported to Nigeria, Thailand, Indonesia, Vietnam , Myanmar and so on .

We are willing to cooperate with friends in the industry all over the world !

Please tell us some details as follows, so we can suggest you the suitable machine and the layout.

• What's the raw material and it's size? (width,thickness and length )
• What's the finished product and it's size?
• What's the annual capacity of your plan?

Please let us know if here any question.

Looking forward to hearing from you.
