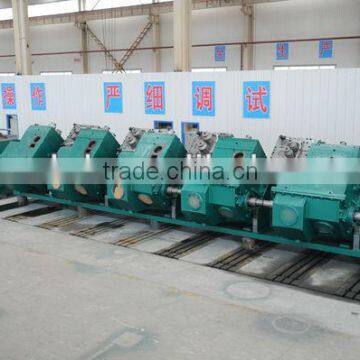

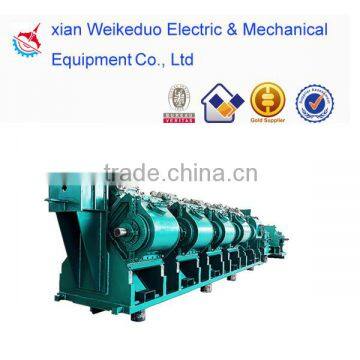

Steel bar mill
Main parameters:
Rolling speed:max. 90m/s or 135m/s( two speed design)
Weight of a coil: 1-2.5T
Capacity:300,000-800,000TPA
Design feature
Arrangement of mills: |
Continuous rolling line Alternatively arranged H-V mills for pre-finishing mills Top 45°crossing high speed rolling mill monoblock |
Rolling speed: |
90-135 m/s |
Weight of a coil: |
1-2.5 T |
Production Capacity: |
350,000-800,000TPA |
Specifications:
Place of Origin : |
Xian, Shaanxi province, China (Mainland) |
Brand Name : |
Hangji |
Model Number : |
hangji90/hangji135 |
Type : |
Hot Rolling Mill |
Rolling speed : |
Max 135m/s |
Place of Origin : |
China |
weight of coil : |
1-2.5T |
Type : |
Rolling Mill |
Processing Type : |
Other |
Packaging Details : |
Duly packed in ship-worthy packages / containers. |
Delivery Time : |
based on discussion between buyer and us |
Supply Ability : |
20 Set/Sets per Year based on client's requirement |
5. Delivery and payment
FOB price: |
FOB USD 3000~1000000 / Set |
Min order: |
1 Set/Sets based on client's requirement |
Loading port: |
Tianjin port or according to negoiation |
payment methods: |
L/C,T/T, Escrow |
Technical project brief introduction
-- Production line with annual capacity: According to your demand,100,000.00MT at least, automatic continuous rolling mill applied.
-- Billet size: 150*150*12000mm
-- Product specifications: Ø8-Ø32mm, 12000mm length rebar
-- Roughing rolling mill stands: Ø550 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands.
-- Intermediate rolling mill stands: Ø420 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands.
-- Finishing rolling mill stands: Ø320 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands. 3 of the rolling mill stands are horizontal/vertical interchangeable rolling mill stands.
-- Rolling speed: 12-18meters/second.
1. Product
Material: carbon steel, structure steel, low alloy steel
Product specification: bar/rebar/wire rod Ø 6 to Ø 32 mm
2. Raw material
The production line is supposed to use continuous casting billet with size of 150*150*12000mm The allowable tolerance for section dimension of billet should be in accordance with the regulation of YB-2011-83.
3. Process layout
Roughing mill stands Ø550 X 6 (H/V) No.1 to No.6 mill stands -- Intermediate mill stands Ø420 X 6 (H/V) No.7 to No. 12 mill stands -- Finishing mill stands Ø320 X 6 (H/V) No.13 to No.18 mill stands, all mill stands driven by DC motor and continuous rolling method applied. Rolling mill No.14, 16 and 18 are Ø320 H/V interchangeable rolling mill stands
4. Process flow
Company brief introduction
Machinery Manufacturering and Supply
Our services for you :
ü We customize the products according to customers’ requirements.
ü If you are not sure about the exact product you want,
we can give you some advices, according to your factory’s area, annual capacity, raw material, your finished products.
ü We provide the methods of the maintenance of products.
ü Engineers are available to service machinery overseas.
By work together, we can add value to your business and help to give you the advantage in your market.
Please contact us freely, if here anything we can do for you.
Looking forward to hearing from you.
Manufacturer: Xi'an Weikeduo Electrical & Mechanical Equipment Co., Ltd.
Add: No. 18, Jinggao South Rd., Jingwei New Town, Economic And Technology District, xi’an city, Shaanxi province, China
Tel: 0086 29 68736112 Mobile: 0086 13759969683
Fax: 0086 29 68822012
Skype: Alma Yangting
Wechat: 1106211363
