LGT6-12 Wire Rod Straightening & Cutting Machine, Straightening and Cutting Machine (Factory)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Straightener & Cutter
Use:
Bar
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wire Rod Straightening & Cutting Machine, Straightening and Cutting MachineNegotiableMOQ: 1 Set -
Mechanical Rebar Straightening & Cutting Machine, Straightening and Cutting Machine (GT4-14)NegotiableMOQ: 1 Set
-
Mechanical Rebar Straightening & Cutting Machine, Bar Straightening and Cutting MachineNegotiableMOQ: 1 Set
-
Mechanical Rebar Straightening & Cutting Machine, Bar Straightening and Cutting Machine (GT4-14)NegotiableMOQ: 1 Set
-
Mechanical Rebar Straightening & Cutting Machine, Straightening and Cutting MachineNegotiableMOQ: 1 Set
Condition
New
Type
Other, Straightener & Cutter
Use
Bar
Place of Origin
Beijing, China
Brand Name
OCEPO
Model Number
LGT6-12
Voltage
380V
Power(W)
50Hz
Dimension(L*W*H)
9860*1010*1365mm
Weight
1420 kgs
Certification
ISO
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Wire Rod Straightening and Cutting Machine:1.Straightening Deformed Bar Dia.:6-12mm
2.Straightening Speed:0.5 ~ 0.9m/s
LGT6-12 Wire Rod Straightening & Cutting Machine ( For Deformed Rebar and Round Rebar):
Parameter:
| Dia. of Straightening Deformed Rebar | Φ6-Φ12mm | |
| Straightening Speed | 500 ~ 900m/s | |
| Auto Cutting Length | 300-8000mm | |
| Error of Auto Cutting Length | <20mm | |
| Quantity of Cutter | 3 sets | |
| Electromotor for Cutting | Model | Y132M1-6 |
| Rated Power | 4.0Kw | |
| Rated Rotational Speed | 960r/min | |
| Electromotor for Straightening | Rated Rotational Speed | 1440r/min |
| model | Y132S-4 | |
| Rated power | 7.5Kw | |
| Rated Voltage | 380V | |
| Rated Frequency | 50Hz | |
| External dimensions | 9860 × 1010 × 1365mm | |
| Net weight | 1420 Kg | |

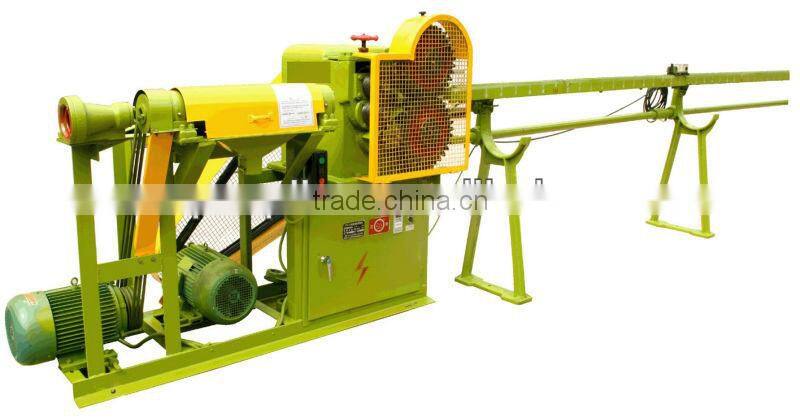

Photo:
Structure:

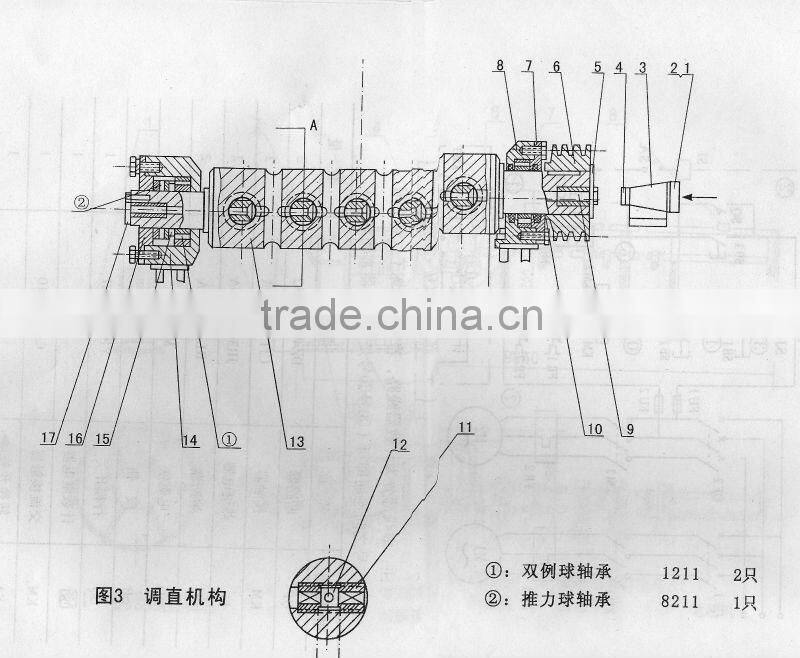

Straightening Structure:

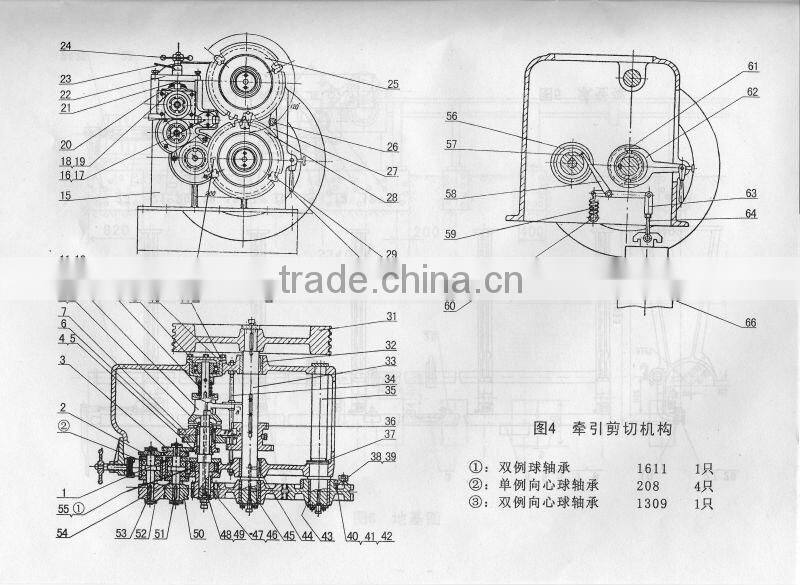

Cutting Structure:
