Wire Rod Finish Rolling Mill and China Supplier Hot Rolling Mill

Wire Rod Finish Rolling Mill and China Supplier Hot Rolling Mill thumbnail-1
Wire Rod Finish Rolling Mill and China Supplier Hot Rolling Mill thumbnail-2
Wire Rod Finish Rolling Mill and China Supplier Hot Rolling Mill thumbnail-3
Wire Rod Finish Rolling Mill and China Supplier Hot Rolling Mill thumbnail-4

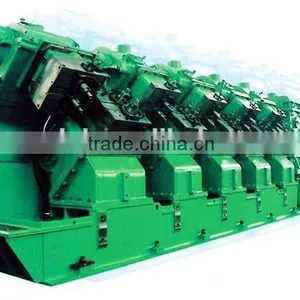

Wire Rod Finish Rolling Mill and China Supplier Hot Rolling Mill thumbnail-5
Wire Rod Finish Rolling Mill and China Supplier Hot Rolling Mill thumbnail-6
Wire Rod Finish Rolling Mill and China Supplier Hot Rolling Mill photo-1

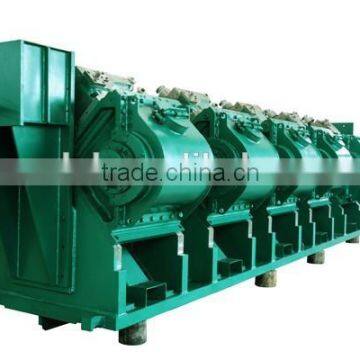

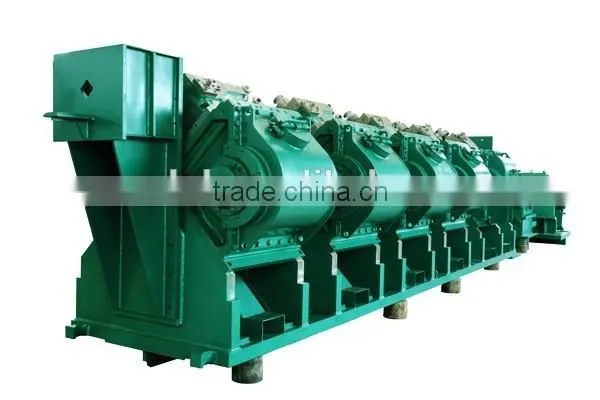

Wire Rod Finish Rolling Mill and China Supplier Hot Rolling Mill photo-2

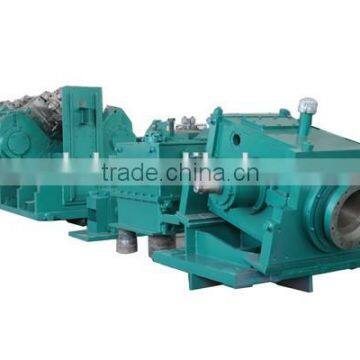

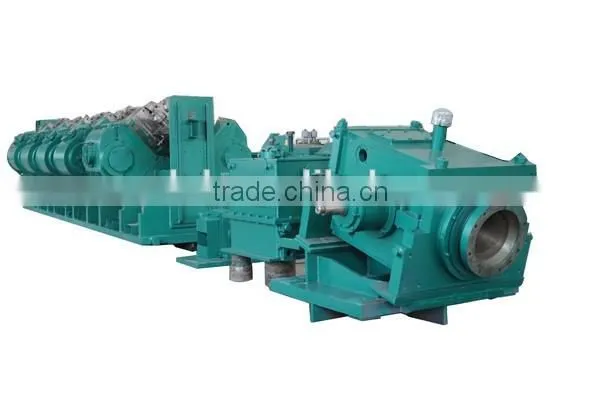

Wire Rod Finish Rolling Mill and China Supplier Hot Rolling Mill photo-3

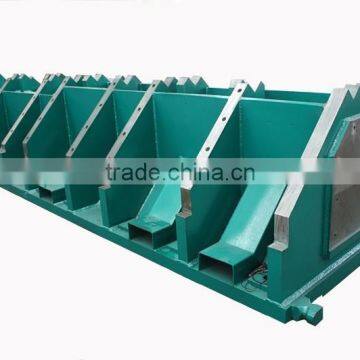

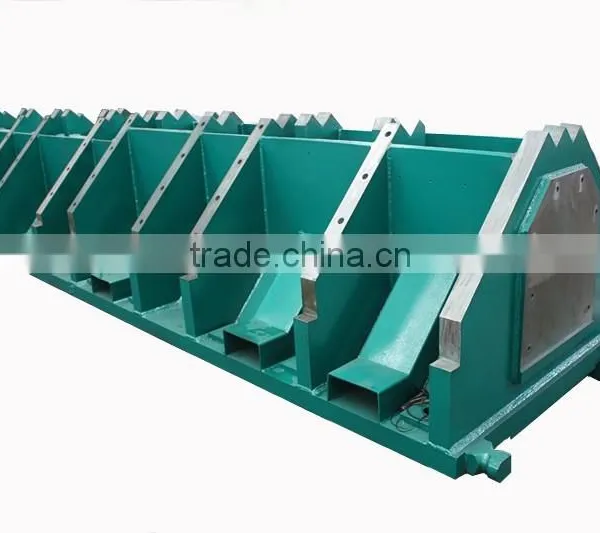

Wire Rod Finish Rolling Mill and China Supplier Hot Rolling Mill photo-4

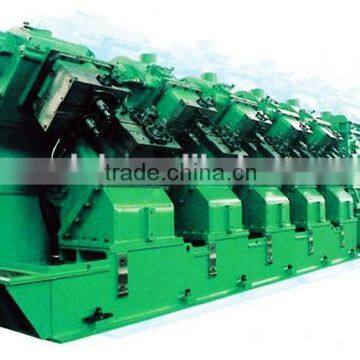

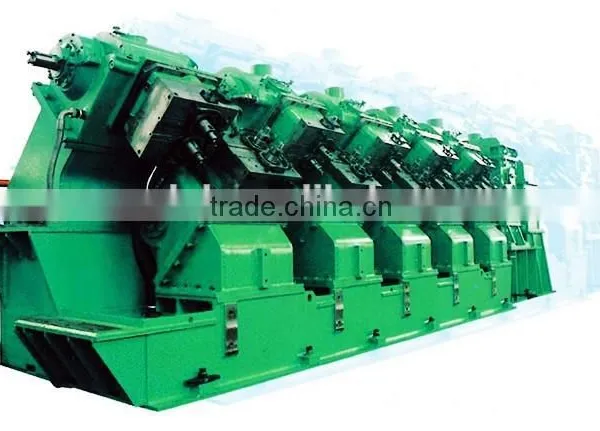

Wire Rod Finish Rolling Mill and China Supplier Hot Rolling Mill photo-5

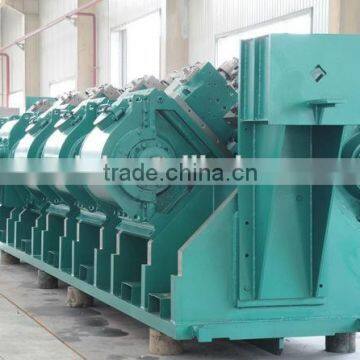

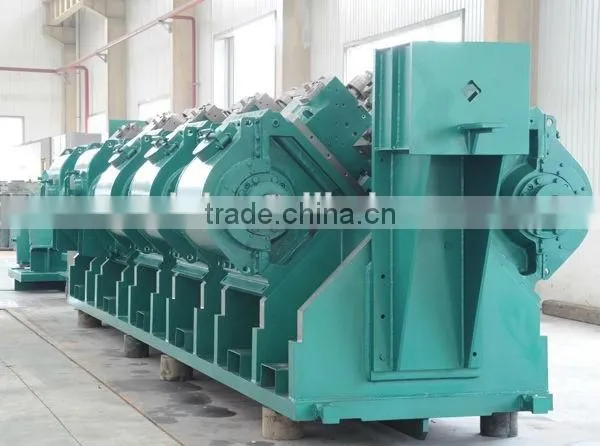

Wire Rod Finish Rolling Mill and China Supplier Hot Rolling Mill photo-6
US$ 1,000,000 - 2,000,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hot Rolling Mill
Place of Origin:
Shaanxi, China
Contact Supplier Request Quote Chat Now
Xi'an Weikeduo Electrical & Mechanical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Hot Rolling Mill
Place of Origin Shaanxi, China
Brand Name Hangji
Model Number 285
Voltage 380-440v
Power(W) depend on
Dimension(L*W*H) depend on
Weight depend on
Certification ISO9001,BV,SGS
Warranty 1-3 YEARS
After-sales Service Provided Engineers available to service machinery overseas

Wire rod finish rolling mill and china supplier hot rolling mill



Quality assurance



 WKD gurantees that all the goods supplied are completely new, technically advanced, high quality and the design, materials and manufacturing process are defectless, they conform to the technical performance required by the customer and can run safely.



 WKD gurantees that the gurantee period of the goods supplied is 12 months after the date of signing the certificate of goods acceptance.



 WKD gurantees that the goods supplied meet the requirements for the quality and technical performace specified during the gurantee period, if it is due to the responsibility of WKD that the goods supplied do not confirm to the requirements for the specified quality and technical performance, the buyer has the right to lodge the claim.



 WKD gurantees that the technical documentation supplied is correct, complete and clear and conforms to the requirements for the design, inspection, installation, adjustment and maintance of the goods.





Product Overviews

Technical project brief introduction



-- Production line with annual capacity: According to your demand,100,000.00MT at least, automatic continuous rolling mill applied.

-- Billet size: 150*150*12000mm

-- Product specifications: Ø8-Ø32mm, 12000mm length rebar

-- Roughing rolling mill stands: Ø550 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands.

-- Intermediate rolling mill stands: Ø420 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands.

-- Finishing rolling mill stands: Ø320 x6 short stressed rolling mill in Horizontal/vertical arrangement. 6 stands. 3 of the rolling mill stands are horizontal/vertical interchangeable rolling mill stands.

-- Rolling speed: 12-18meters/second.



1. Product

Material: carbon steel, structure steel, low alloy steel

Product specification: bar/rebar/wire rod Ø 6 to Ø 32 mm



2. Raw material

The production line is supposed to use continuous casting billet with size of 150*150*12000mm The allowable tolerance for section dimension of billet should be in accordance with the regulation of YB-2011-83.



3. Process layout

Roughing mill stands Ø550 X 6 (H/V) No.1 to No.6 mill stands -- Intermediate mill stands Ø420 X 6 (H/V) No.7 to No. 12 mill stands -- Finishing mill stands Ø320 X 6 (H/V) No.13 to No.18 mill stands, all mill stands driven by DC motor and continuous rolling method applied. Rolling mill No.14, 16 and 18 are Ø320 H/V interchangeable rolling mill stands



4. Process flow

wire rod finish rolling mill and china supplier hot rolling millwire rod finish rolling mill and china supplier hot rolling mill

Company brief introduction

wire rod finish rolling mill and china supplier hot rolling millwire rod finish rolling mill and china supplier hot rolling mill

Machinery Manufacturering and Supply

wire rod finish rolling mill and china supplier hot rolling millwire rod finish rolling mill and china supplier hot rolling millwire rod finish rolling mill and china supplier hot rolling millwire rod finish rolling mill and china supplier hot rolling millwire rod finish rolling mill and china supplier hot rolling millwire rod finish rolling mill and china supplier hot rolling millwire rod finish rolling mill and china supplier hot rolling millwire rod finish rolling mill and china supplier hot rolling millwire rod finish rolling mill and china supplier hot rolling millwire rod finish rolling mill and china supplier hot rolling millwire rod finish rolling mill and china supplier hot rolling mill

Our services for you :

ü  We customize the products according to customers’ requirements.

ü  If you are not sure about the exact product you want,

we can give you some advices, according to your factory’s area, annual capacity, raw material, your finished products.

ü  We provide the methods of the maintenance of products.

ü  Engineers are available to service machinery overseas.



By work together, we can add value to your business and help to give you the advantage in your market.



Please contact us freely, if here anything we can do for you.

Looking forward to hearing from you.

Manufacturer: Xi'an Weikeduo Electrical & Mechanical Equipment Co., Ltd.

Add: No. 18, Jinggao South Rd., Jingwei New Town, Economic And Technology      District, xi’an city, Shaanxi province, China

Tel: 0086 29 68736112             Mobile: 0086 13759969683

Fax: 0086 29 68822012

Skype: Alma Yangting

Wechat: 1106211363
