Magnetic Gps Tracking Device for People

Magnetic Gps Tracking Device for People thumbnail-1
Magnetic Gps Tracking Device for People thumbnail-2
Magnetic Gps Tracking Device for People thumbnail-3
Magnetic Gps Tracking Device for People thumbnail-4
Magnetic Gps Tracking Device for People thumbnail-5
Magnetic Gps Tracking Device for People thumbnail-6
Magnetic Gps Tracking Device for People photo-1
Magnetic Gps Tracking Device for People photo-2
Magnetic Gps Tracking Device for People photo-3
Magnetic Gps Tracking Device for People photo-4
Magnetic Gps Tracking Device for People photo-5
Magnetic Gps Tracking Device for People photo-6
US$ 35 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Gps Tracker
Use:
Automotive
Screen Size:
Other, No screen
Contact Supplier Request Quote Chat Now
Shenzhen Carscop Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Tracker
Use Automotive
Screen Size Other, No screen
Function Other, gps tracker
Place of Origin Guangdong, China
Brand Name CARSCOP
Model Number CCTR-809
Warranty 12 Months
Detailed Images


- 3-5 years working time (Every 24 hours auto ON/OFF & locate once)
- Auto ON/OFF & locate interval time can be changed by user SMS
- Special for rent vehicle / machine / instrument tracking
- DIY no installation (No wire / only battery power supply)

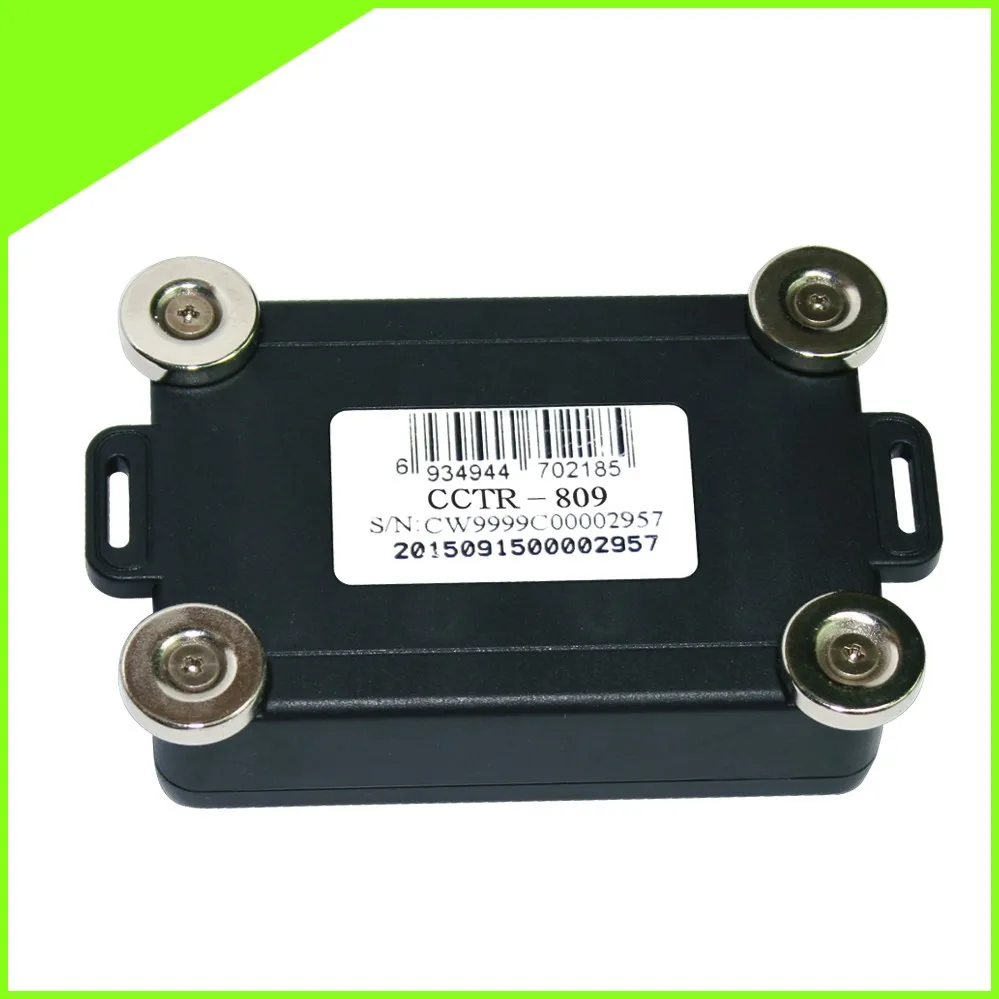

- Easy adsorbed on the metal with its strong 4 magnet pins
- Water-proof make it can be used in open air place


- Extra low standby (sleep) current (Lower than 1 uA)

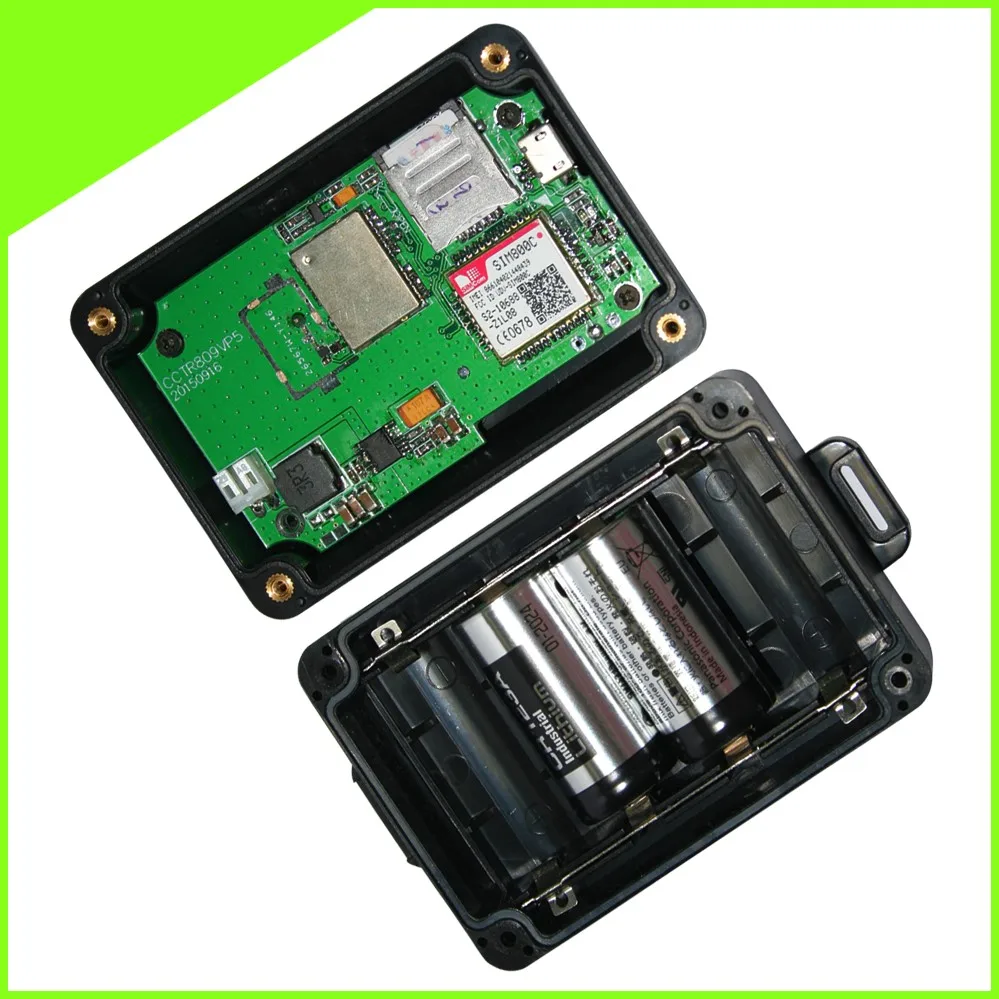

- High capacity Li battery (6000mAH/3V, 4 x CR123A)
- Low self-discharging Li battery (4 x CR123A , 2%/Year)
- Geo-fence alarm can be noticed by sms or calling
- Device can not be detected by instrument (Normally sleep)
- Software GPRS air upgrade
- Auto download & configure APN & GPRS, Also can be set by SMS


- Multi working & report mode can be controlled by SMS
- Universal 4 band module & u-Blox (A-GPS) GPS module
- A-GPS (GSM Network Auxiliary Locate) make fast locate
- GSM and GPS antenna are embedded in the tracker
- 3 Authorized phone number can be set by SMS
- Auto send battery low information to authorized phone by

  SMS
- PC or mobile phone all can be used to check location or

   tracking
- Upload web or IP can be set by SMS


- Uploading tracking is controlled by timing
- Open GPRS protocol to client for adding protocol to

  platform
- GPRS protocol can be changed to work with client

  platform
- Visit website can track the car or display the history

  tracking
- Platform support iPhone & Android App locate / SMS

  locate
- History tracking can be saved on server over 6-12 months
- Life time free platform service charge (Our HK Server)

- World wide fast visiting high speed HongKong server
- Easy to use for tracking the rent asset, equipment, machine, vehicle etc.



Product Description

Product Application

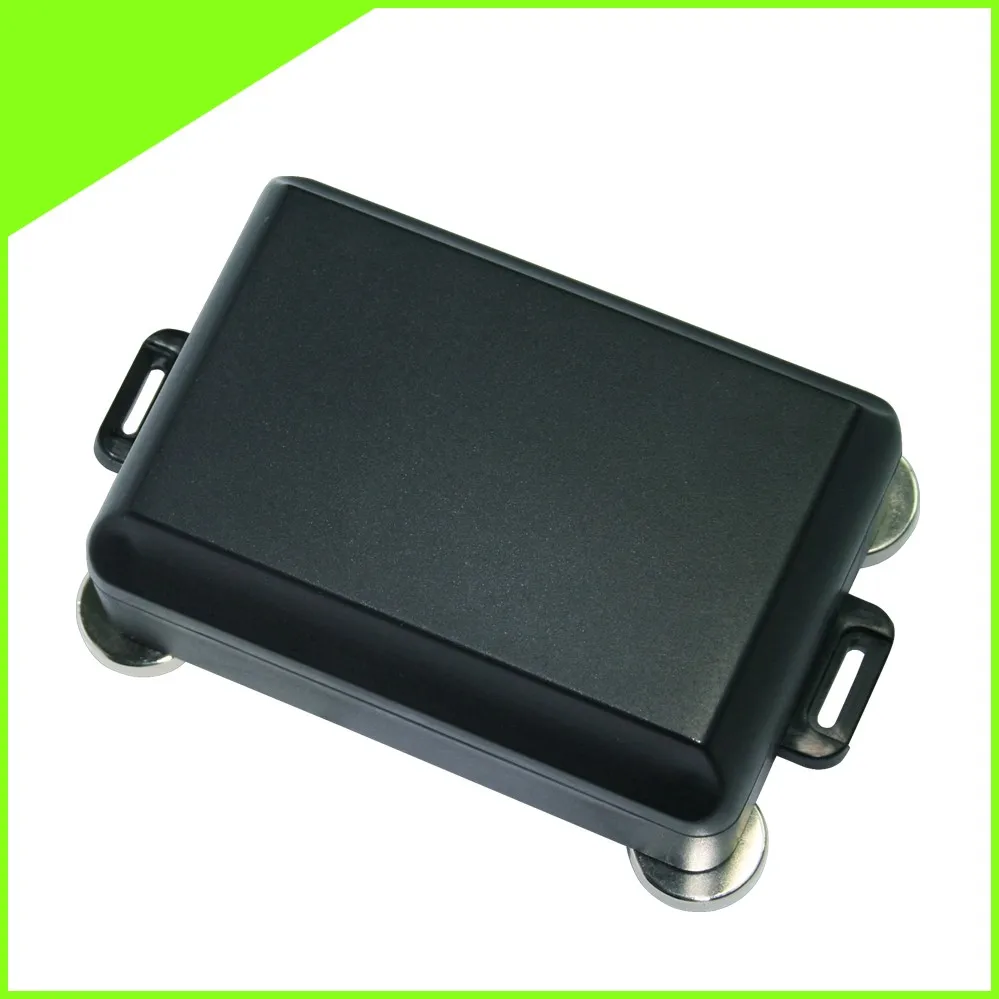

       This product CCTR-809  is with GPS module and GSM module, it use internal high capacity battery, it is not necessary external power supply, it will weak up every day by setting time interval(normally every day 1-2 times), it receive GPS Location (outdoor,10-20m precision) & LBS location (indoor,50-500m precision) and upload the location to internet server, and then sleep automatically, user login server with given user name & password can locate the tracker. If the tracker break the setting geo-fence, it will send sms to notice owner, the working time can reach 3-5 years, it is water-proof with strong magnet, specially suit for rent machine, vehicle, instrument, engineer sets tracking.

GSM Module
SIMCOM
GPS Module
U-Blox
GSM Frequency
850/900/1800/1900 MHz
GSM / GPSAntenna
Built in
Uploading Current
<150mA / 3V
Locate precision
5-10 Meters
GPS channel
24 channels
GPS Hot StartTime
1 second
Standby Current
< 1 uA
GPS Cold StartTime
36 seconds
Battery
6000mAh
Working Voltage
3V DC
WorkingTemperature
-20 ℃ to +55 ℃
StorageTemperature
-40 ℃ to +80 ℃

Primary Competitive Advantages:

- 3-5 years working time (Every 24 hours auto ON/OFF & locate once)
- Auto ON/OFF & locate interval time can be changed by user SMS
- Special for rent vehicle / machine / instrument tracking
- DIY no installation (No wire / only battery power supply)
- Easy adsorbed on the metal with its strong 4 magnet pins
- Water-proof make it can be used in open air place
- Extra low standby (sleep) current (Lower than 1 uA)
- Geo-fence alarm can be noticed by sms or calling
- Device can not be detected by instrument (Normally sleep)

Packing

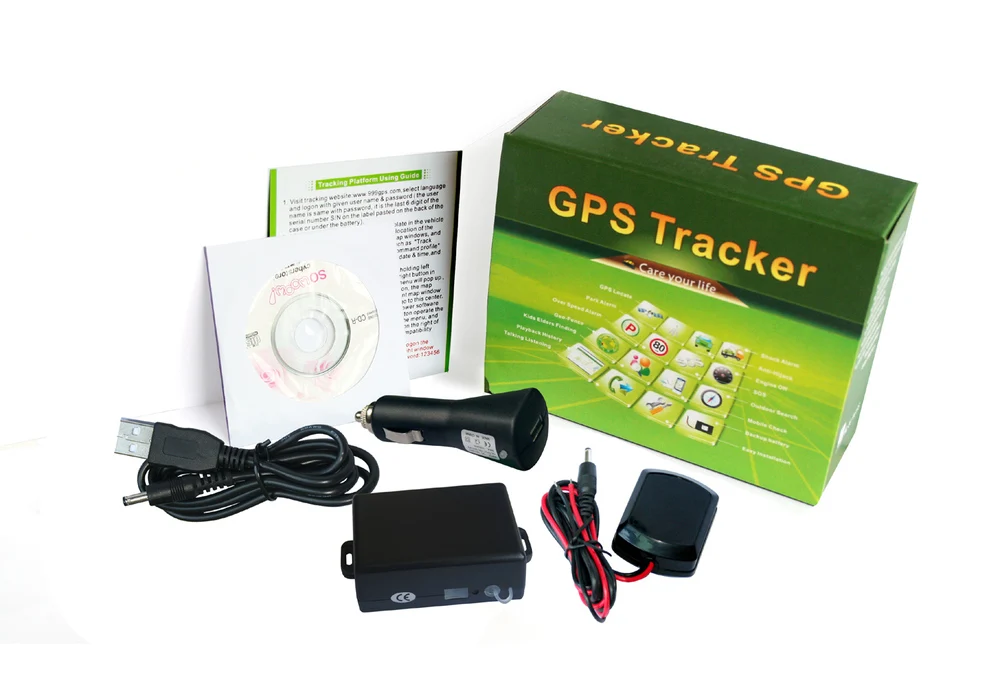

1 Main unit , CR123A battery X 4, 1 manual (CD or Print).

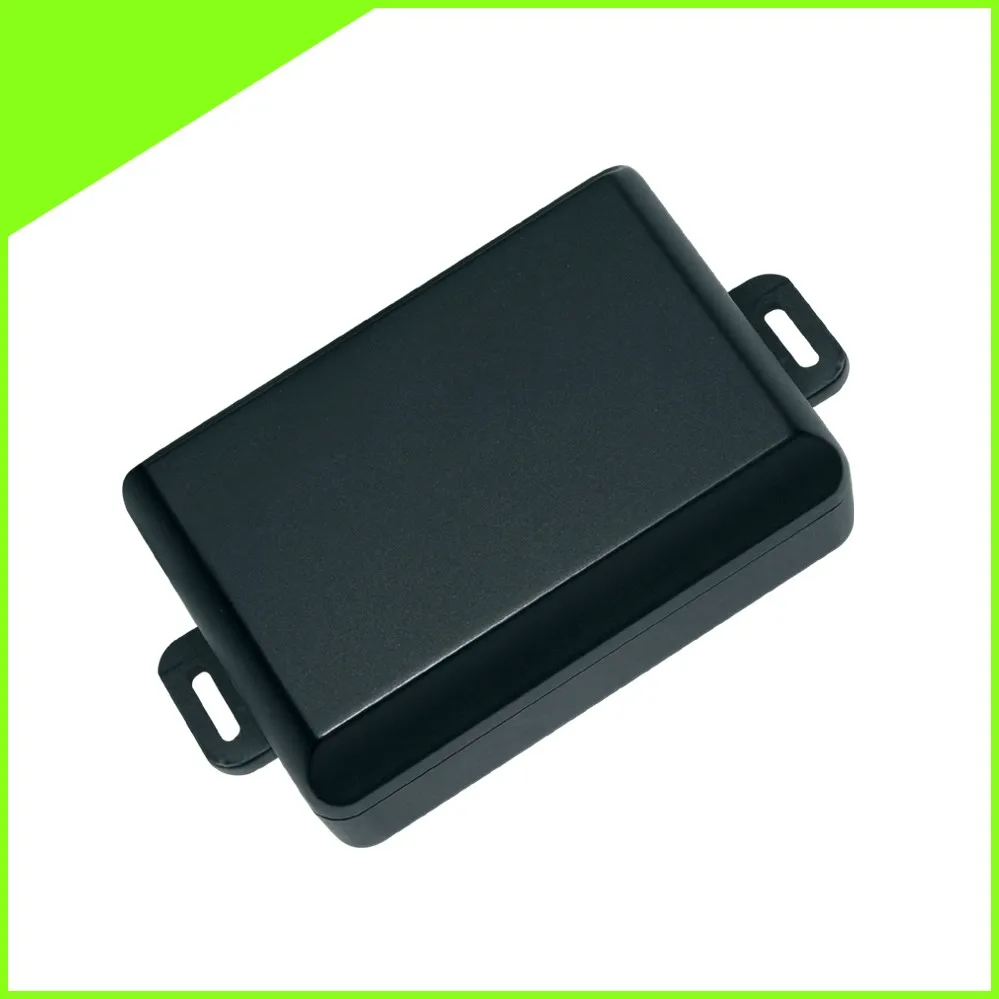

Main Dimension: 77mm*53mm*29mm
Main weight: 90g
Package: color box
Package Dimension: 130mm*200mm*46mm

Weight: 0.33kg
Quantity Per Carton: 40set
Carton Dimension: 490mm*440mm*290mm

Weight: 14.5kg

Application
Hot products
Certifications
Company Information

       Shenzhen CARSCOP electronics co, Ltd. is a professional company that develop and manufacture GPS tracker and tracking system & remote start car alarm system, it was found in April 2001. We are a senior member of SHENZHEN SAFETY & SECURITY INDUSTRY ASSOCIATION, we are a senior member of CHINA AUTO FITTING INDUSTRY FEDERATION, also we are one of the founder member of CHINA AUTO PERFORMANCE UNION, And we have been assessed and found to meet the requirement of the ISO9001:2008 quality management system. Our products have the CHINA CCC certificate, and the export products have passed the FCC and CE proved. Also we manufacture product for Europe with RoHS process.
