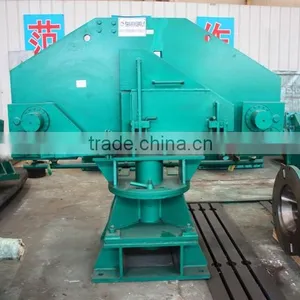

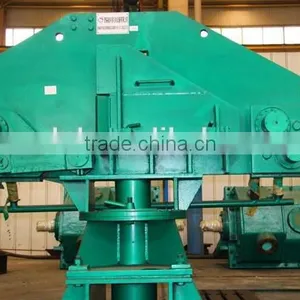

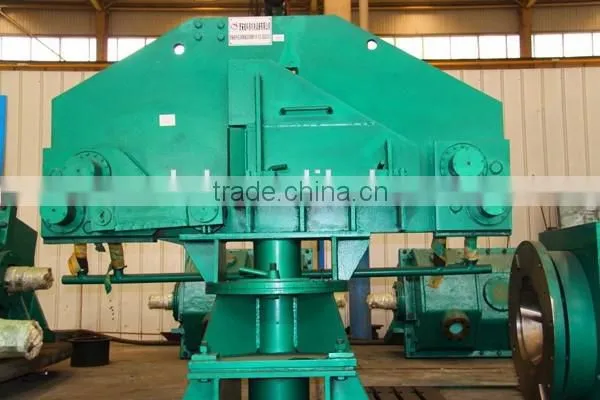

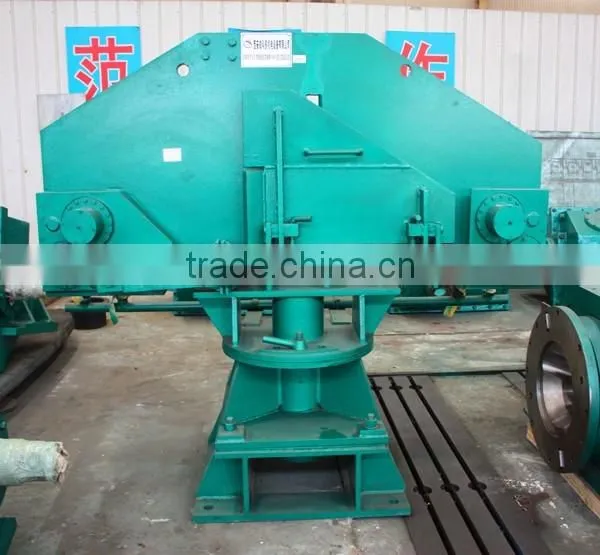

Loops for the high speed wire rod mill line
The effect of Vertical loop:
wire-rod has the problem of the dynamic tension fluctuation caused by interference when it is in the process of rolling, so it lead to the fluctuation of the dimension of the rolling element, vertical loop can eliminate part of the tension fluctuation to make sure the precision of the equipments.
1. The structure of Vertical loop:
Vertical loop is composed of sets of roll(it is pushed by cylinder), back-up roll and loop groove. The sets of roll used to form cover. Side-wall is used to support the element to form the loop. Loop adopt the central pole mount, which is easy to turn on and adjust the mill guide and guard
The diameter of sets of roll cylinder is Φ160mm; distance is 200mm.
The working altitude of loop is 100mm higher than the rolling centre line.
The highest altitude of loop is 400mm higher than the rolling centre line.
2, Lubrication and pneumatic:
The transmission parts of loop adopt glycerol manual lubrication.
The air used in loop and rear brakes is unified offered by workshop, the pressure to compressed air is around0.4~0.6Mpa.
The effect of Side loop:
wire-rod has the problem of the dynamic tension fluctuation caused by interference when it is in the process of rolling, so it lead to the fluctuation of the dimension of the rolling element, side loop can eliminate part of the tension fluctuation to make sure the precision of the equipments.
1.The structure of side loop:
Side loop is composed by cylinder, sets of roll, loop platform, turning roll and loop scanner. Cylinder push the sets of roll. Sets of roll is mainly combined by the roll on the rocker. When the sets of roll is in the location of retraction, roll fully withdraw the rolling line, the tip of roller can directly get into the finishing mill through loop platform. When the sets of roll turn to the extended position, it forward to the rolling line and push the rolling element to loop platform, then the loop is formed.
The diameter of sets of roll cylinder is Φ130mm; distance is 254mm.
The working altitude of loop is 300mm.
The highest altitude of loop is 700mm.
2.Lubrication and pneumatic:
The transmission parts of loop adapt glycerol manual lubrication.
The air used in loop and rear brakes is unified offered by workshop, the pressure to compressed air is around0.4~0.6Mpa.
Machinery and equipment we can service for you:
² high speed wire rod rolling mills,
² high speed rebar,round bar rolling mills,
² roughing rolling mills, intermediate rolling mills, pre-finishing rolling mills ,finishing rolling mills, flying shear,cooling water box,cooling plate,laying head,air cooling line,set volume stand,PF plant, packing apparatus and so on.
² spare parts required in rolling mill production line.
1.Leader of the steel rolling mill field
2.SGS,ISO9001
3.warranty
Process flow:
Q: Are you a manufacturer or trading company?
A: Xi'an Weikeduo Electrical & Mechanical Equipment Co., Ltd. is a ISO 9001:2008certified manufacturer engaged for the last 20 Years in Manufacturing and Supply of Complete Steel Rolling Mills in the Country as well as export in Nigeria, Thailand, Indonesia, Vietnam , Myanmar and Middle East countries, and also in certain African Countries.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xi’an City, Shaanxi Province,China.
All our clients, from home or abroad, are warmly welcome to visit us!
Q: How does your factory do regarding quality control?
A: Quality is priority.
Our enterprise owns perfect quality guarantee system and an excellent quality management team, in 2001, our factory passed the ISO9001 quality system certificate.
Weikeduo’s quality policy:
Leading technology Quality-oriented
Customers first Continuous Improvement
Q: Why choose us?
A: Xian Weikeduo Electric & Mechanical Equipments Co., Ltd is the high speed rolling mill leader, with the experienced staff team and own technique patents;
Our company has been certified by ISO9001:2008 and SGS;
Our company registered the brand name "Hangji" in 2008, since then, HangJi brand rolling mills have been exported to Nigeria, Thailand, Indonesia, Vietnam , Myanmar and so on .
We are willing to cooperate with friends in the industry all over the world !
Please tell us some details as follows, so we can suggest you the suitable machine and the layout.
- What's the raw material and it's size? (width,thickness and length )
- What's the finished product and it's size?
- What's the annual capacity of your plan?
Please let us know if here any question.
Looking forward to hearing from you.
