Track switcher & the collecting device equipment in the steel production line
Machinery and equipment we can service for you:
² high speed wire rod rolling mills,
² high speed rebar,round bar rolling mills,
² roughing rolling mills, intermediate rolling mills, pre-finishing rolling mills ,finishing rolling mills, flying shear,cooling water box,cooling plate,laying head,air cooling line,set volume stand,PF plant, packing apparatus and so on.
² spare parts required in rolling mill production line.
1.Leader of the steel rolling mill field
2.SGS,ISO9001
3.warranty
Process flow:
The effect of track switcher

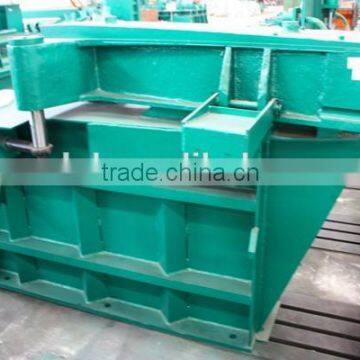

1. Track switcher is behind the 3# flying shear, being composed by upper and lower switchable groove, the finished product will be switched to the finishing mill through the lower groove and the waste will be switched to the collecting device through the upper groove. The upper groove is connected with snap shear while the lower groove is connected with finishing mill.

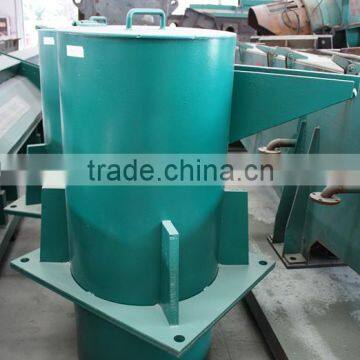

2. The collecting device is composed by two waste boxes and one chute and located beneath the track switcher and snap shear to collect the waste processed by flying shear and snap shear.
Main technical performance
Diameter of the rolling parts |
φ13.5~16mm |
Waste length to be collected |
700mm |
Waste length after being snapped |
300mm |
Specification of track switcher cylinder |
φ200/50×100 |
Structure and operation
The switch of the upper groove and lower groove is realized through the left and right movement of the track switcher driven by a cylinder, when the track switcher is in the upper position, it is “the position for steel to feed in”, the lower position is for waste to get off. When flying shear is cutting the head of the steel, track switcher is in the condition to let the steel to get in, then, the lower groove forward the rolling part to other shears, when the rolling parts get into the finishing mill, railroad switch turn to the position to let the waste get off in case any failure occurs and forward the rolling element behind the former into the snap shear. If the rolling part gets into the bar mill and things goes well, track switcher turns to the position to let the steel get in to wait the next rolling parts.
Lubrication and pneumatic:
Glycerol manual lubrication is applied for transmission parts of track switcher.
The air used in brakes is supplied by workshop, the pressure of compressed air is 0.4~0.6Mpa.
high speed wire rod rolling mills,
high speed deformed rebar rolling mills,
roughing rolling mills, intermediate rolling mills, pre-finishing rolling mills and finishing rolling mills,
spare parts ( roller box, gearbox reduction, coil laying head, vertical and horizontal loopers, flying shears, chopping shears and gripping shears )required in rolling mill production line.
design, manufacture ,install, debug, after sales service overseas as customers’ request
ü We customize the products according to the customers’ requirements.
ü If you are not sure about the exact product you want,we can give you some advices according to your factory’s area, annual capacity, raw material and your finished products.
ü We provide the methods of the maintenance of products.
ü Engineers are available to service machinery overseas.
