Specifications
Brand-name PartsCountry of Origin
manufacturer
Experienced engineers available to service machinery overseas

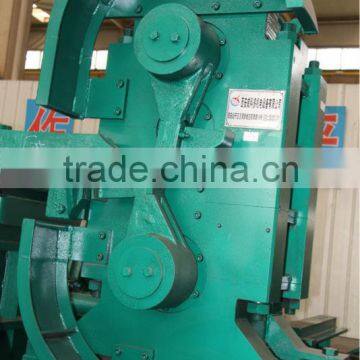

Hangji brand metal cutting machine flying shear
The function of the flying shear
1, As the head and rear part of the rolling parts have some defect or the temperature of steel is too low, the flying shear need to cut the head and rear to insure the quality of the rolling parts before it gets into the finishing mill.
2, The flying shear will cut the rolling parts immediately if any failure occurs to the finishing mill, then the switch will turn the parts to snap shear to snap.
Main technical performance of the flying shear
Steel to be processed |
Carbon steel, low alloy steel |
Material diameter |
dia12.7—dia18 |
Rolling speed |
7-12m/s |
Cutting temperature |
850°C |
Product length |
150~230mm |
Rotary sword diameter |
800mm |
Motor power |
112KW |
Motor speed |
255-465r/min |
the flying shear equipment composition and structural characteristics.
Flying shear is composed by transmission equipment, cutting support base and upper & lower spindle. Rotary tool rest has installed backsword, two spindles which are parallel with start-stop work system. Tool rest makes one revolution to finish one cutting period. Motor drive the spindle through reduction gears and make the upper, lower spindle rotated through the gear.
The lower spindle is connected with transmission equipments. Motor adapt separately ventilated machine and equipped speed measuring motor to measure the speed of the direct motor. Safety gear coupling is installed between the motor and reduction gears to insure the safety to use the equipment.
Cutting support base is a welded case with four-layers, it has four gear rolls inside, including upper, lower spindle and the others are transition gear rolls
Upper spindle has optical-electricityencoder to control the start-stop position of the shear blade in the processing of the cutting.
Machinery and equipment we can service for you:
² high speed wire rod rolling mills,
² high speed deformed rebar rolling mills,
² roughing rolling mills, intermediate rolling mills, pre-finishing rolling mills and finishing rolling mills,
² spare parts required in rolling mill production line.
1.Leader of the steel rolling mill field
2.SGS,ISO9001
3.warranty

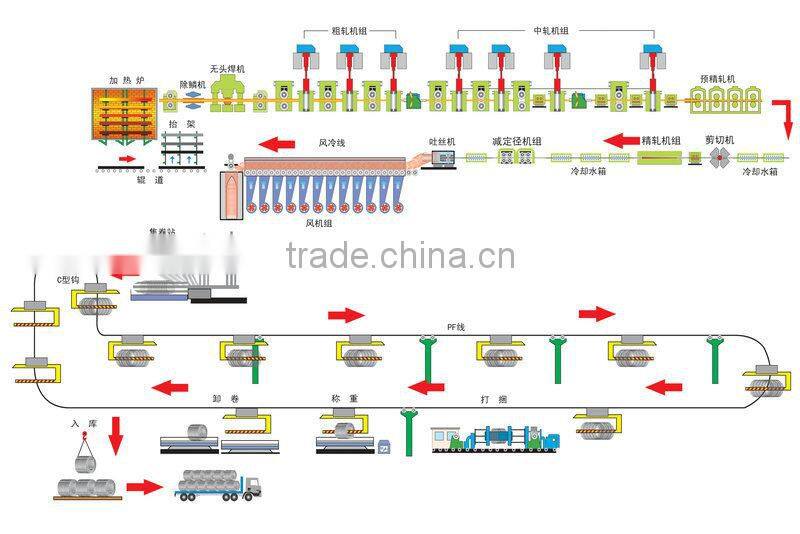

Process flow:
Packaging: seaworthy packing or as customers’ different request according to practicality.
Shipping: sea, highroad or air transport as different needs
high speed wire rod rolling mills,
high speed deformed rebar rolling mills,
roughing rolling mills, intermediate rolling mills, pre-finishing rolling mills and finishing rolling mills,
spare parts ( roller box, gearbox reduction, coil laying head, vertical and horizontal loopers, flying shears, chopping shears and gripping shears )required in rolling mill production line.
design, manufacture ,install, debug, after sales service overseas as customers’ request
ü We customize the products according to the customers’ requirements.
ü If you are not sure about the exact product you want,we can give you some advices according to your factory’s area, annual capacity, raw material and your finished products.
ü We provide the methods of the maintenance of products.
ü Engineers are available to service machinery overseas.
Company certificates:
Our Brand: “Hangji”
Manufacturer: Xi'an Weikeduo Electrical & Mechanical Equipment Co., Ltd.
Add: No. 18, Jinggao South Rd., Jingwei New Town, Economic And Technology District web:/cn/index.asp
http://xawkd.en.china.cn/
we are willing to cooperate with friends in the industry all over the world !
Please tell me some details as follows, so I can suggest you the suitable machine and the layout.
- What's the raw material and what's the size of it? (width and thickness)
- What's the finished product and what's the size of it? (width and thickness)
- What's the annual capacity of your plan?
I really appreciate it if you spend a few minutes answering those questions. We look forward to hearing from you.
