Home > Chemicals > Inorganic Fiber > Ceramic Fiber > Factory Direct Supply Ceramic Fiber

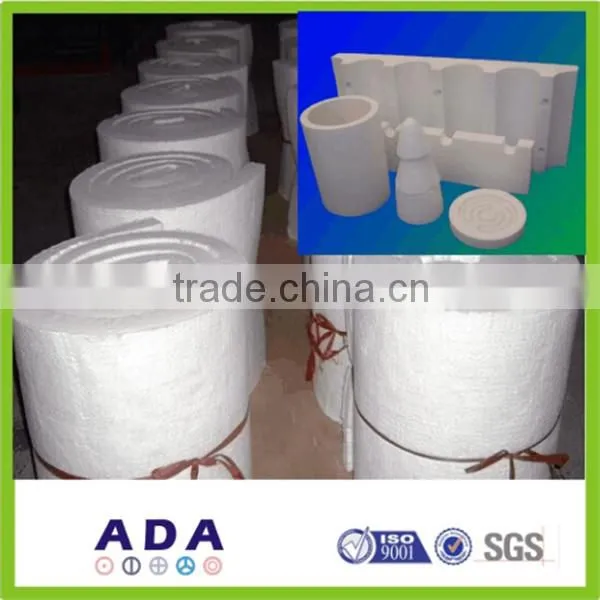

Factory Direct Supply Ceramic Fiber

Factory Direct Supply Ceramic Fiber thumbnail-1
Factory Direct Supply Ceramic Fiber photo-1
US$ 0.5 - 2 MOQ: 1000 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
ADA
Model Number:
1260
Contact Supplier Request Quote Chat Now
Zibo City Linzi Yixiang Chemical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name ADA
Model Number 1260
Application Heat Insulation
Grade ST (Standard)
Dimensions By customer Request
Working Temperature 1260C
Fiber Diameter 3-5um
Thermal Conductivity 0.085-0.18w/m.k
Shrinkage (1800℉, 3h) -3



                             High quality ceramic fiber product series





Factory direct supply ceramic fiber



1. Product Series:



Product Type

Size

Ceramic fiber yarns

From 425tex-1000tex  (2ply-6ply)

Ceramic fiber ropes

Size from 6m-50mm

Ceramic fiber tape

Size from 10-300mm width thickness 1.5-6mm

Ceramic fiber cloth

1.5mm-6mm ( thickness)

1m -1.2m (width )

Ceramic fiber blanket

Density: 64~160kg/m3
Thickness: 13/25/38/50mm

Unshaped refractory products

According to customer’s requirements





2. Product Advantages:

1). Low thermal conductivity, low heat storage

2). Excellent thermal stability and thermal shock resistance

3). Excellent tensile strength

4). Excellent thermal insulation, fire-proof and sound absorption



3. Main Applications:

1). Industrial furnace, heating devices, high temperature pipe wall linings

2). High tempeture boilers, steam turbine and Nuclear power thermal insulation

3). Chemical industrial high-temperature reaction equipment and heating equipment wall linings

4). High building fireproof and thermal insulation

5). Furnace door and roof thermal insulation

6). High temperature filter materials



4. Technical Index:



Type

Common

Standard

High Purity

High Aluminium

Zirconia

Classification temperature (°C)

1100

1260

1260

1360

1400

Working Temperature (°C)

< 1000

1050

1100

1260

1350

Color

White

Pure white

Pure white

Pure white

Pure white

Density (kg/m3)

96/128/160

96/128/160

96/128/160

128/160

128/160

Shrinkage on heating (%)

(24 hours, density as 128/m3)

-4
(1000°C)

-3
(1000°C)

-3
(1100°C)

-3
(1250°C)

-3
(1350°C)

Thermal conductivity by different temperature (w/m.k) (density as 128kg/m3)

0.09(400°C)
0.16(800°C)

0.09(400°C)
0.16(800°C)

0.09(400°C)

0.16(800°C)
0.20(1000°C)

0.12(600°C)
0.20(1000°C)

0.16(800°C)
0.20(1000°C)

Tensile strength (MPa)
(density as 128kg/m3)

0.04

0.04

0.04

0.04

0.04

Chemical composition

 (%)

AL2O3

44

46

47-49

52-55

39-40

AL2O3+SiO2

96

97

99

99

-

AL2O3+SiO2+ZrO2

-

-

-

-

99

ZrO2

-

-

-

-

15-17

Fe2O3

<1.2

<1.0

0.2

0.2

0.2

Na2O+K2O

≤0.5

≤0.5

0.2

0.2

0.2

Size  (mm)

 14400/7200/4500/3600×1220/610×6-50; Other sizes can be available.





5. Storage and Transportation:

1). For carton with inner plastic bags
Carton size:460*460*620mm, 1*20FCL load 225cartons,
2). For woven bags with inner plastic bags
1*FCL load 225 bags





Factory direct supply ceramic fiberFactory direct supply ceramic fiber
