Help CenterKDC-A11 Push Power Switch Use for Home Appliance
Related Products
-
6 Pin Push on Push off Switch KDC-A04US$ 0.099 - 0.12MOQ: 5000 Pieces -
10A High Current Push Power Switch KDC-A04-2-KUS$ 0.2 - 0.25MOQ: 2000 Pieces
-
4 Pin PCB Self-locking Button Switch KDC-A04-2US$ 0.155 - 0.188MOQ: 5000 Pieces
-
STB/DVD/VCD SPST Power Switch KDC-A04-1US$ 0.088 - 0.111MOQ: 6000 Pieces
-
4 Pin TV Push Button Switch KDC-A04-2-25US$ 0.12 - 0.18MOQ: 5000 Pieces
Yueqing Sao Paulo Electronics Co., Ltd. (formerly Yueqing the anchor Electronic Industry Co. Ltd.) was established in 1984. The Company registered trademarks for the "Golden Spear", "SPL Sao Paulo" licensing, professional production: the power switch, touch switches, power outlets, interface, connectors, audio and video input and output sockets and other products, specializing in the production of the plot 20 years essence, a large-scale production base. Products are widely used in imaging, audio communications, computers, multimedia, video, air conditioning, refrigeration and other electronics, electrical equipment.
1.KDC-A11 push power switch Technial data
Item |
Specification |
Note |
|
Environmental Conditions |
Temperature |
-25~+85°C |
|
Relative Humidity |
≤95%(40°C) |
||
Type |
KDC-A11 series |
8A/128A |
|
Rated Voltage |
250V~ |
|
|
Contact Resistance |
≥30MΩ |
|
|
Insulation Resistance |
≥100MΩ |
DC 500V |
|
|
Voltage-Proof
|
Terminal to Terminal |
≥1500V~ |
0.5mA |
Terminal to All Metal Frame |
≥5000V~ |
||
Operating force |
2~8N |
|
|
|
Robustness of actuation
|
perpendicular direction |
≥10N |
15 S |
Push force on operating direction |
≥50N |
1 min |
|
Push force on operating direction |
≥10N |
15S at off position |
|
Lifespan |
≥10000 times |
At Rated Voltage and Current |
|
Style of mounting hole |
3.2 or M3 |
Choices for users |
|
Distance between mounting holes |
20,25,30 |
||
Terminal |
Copper, |
||

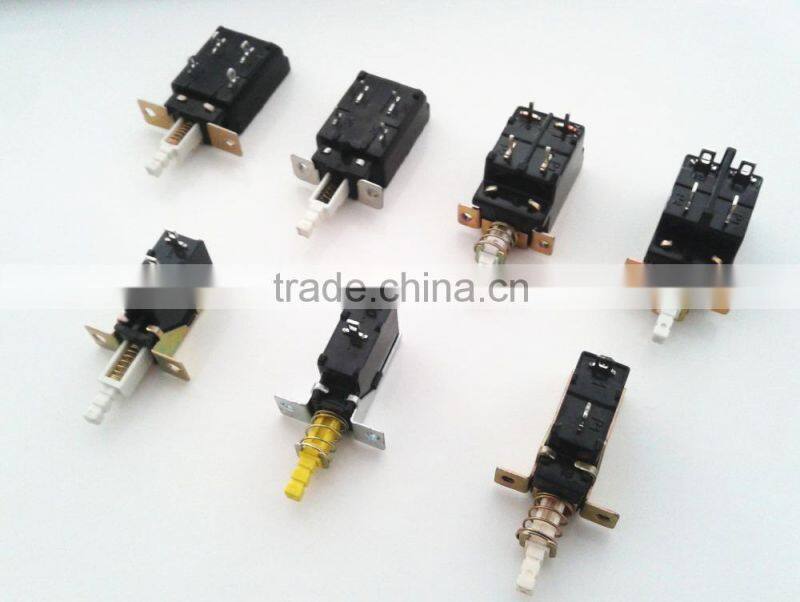

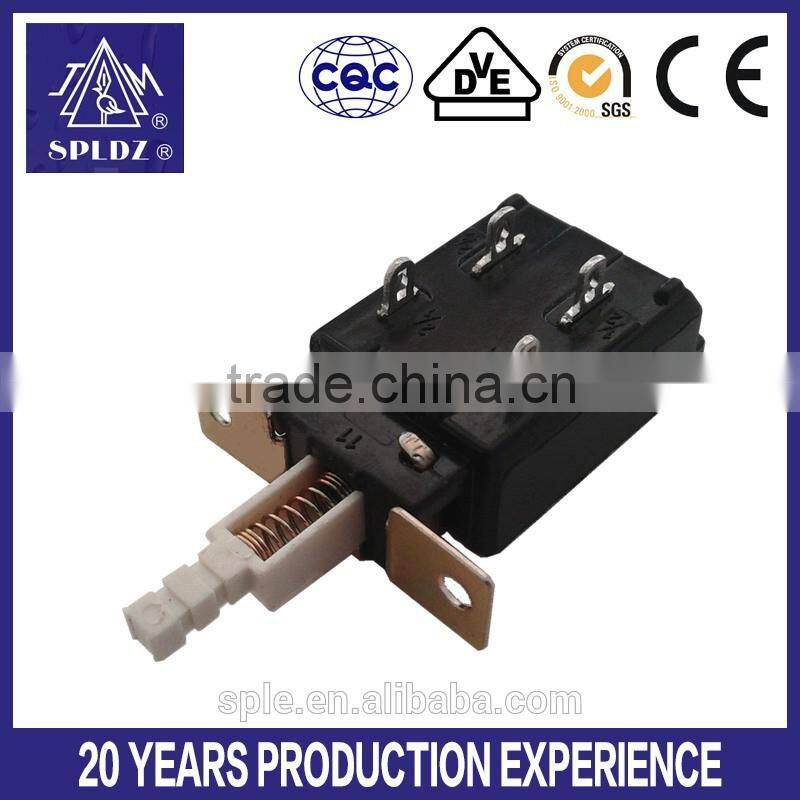

2.KDC-A11 photo

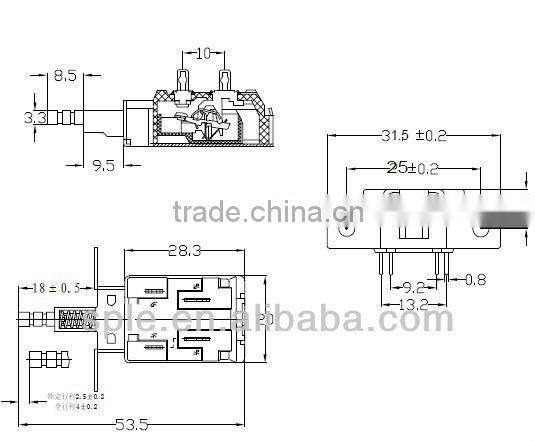

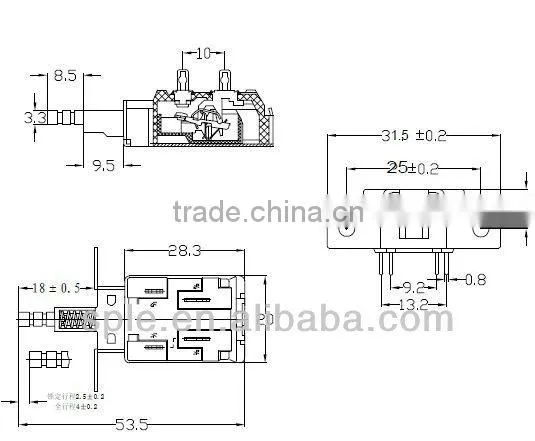

3.Drawing
4.Other KDC series power switch:
1000pcs/caton,blank carton,13KG
1.How can I contact you?
You can contact us by Trademanager cnsple and send email to Jimmy @sple.cn,We will quote within 12 hours after we get your inquiry.
2 Can I get some samples?
Yes, sample order is available for quality check and market test, and it will be freight collect payment.If simple sample , we will not charge cost; If OEM/ODM samples, we will charge for the sample cost.
3. What’s your payment term?
We usually accept T/T before ship as the main payment term, and other payment can also be negotiated.
4.Do you have the products in stock?
No, all products will be newly produced according to your order.
5.What about the lead time for mass production?
It's about 10-30 days after the deposit.
6.What is your main products?
Our main products including power switch,rocker switch,tact switch,push switch,rca jack connector,terminal block
7.Do you received OEM/ODM?
YES.We have more than 10years OEM experience.
8.If you can't find the products from our web, pls send us an inquiry to us,even if we can't make ,we know china market very well ,and can help you to find the same product with good quality and low price.
