Specifications
1.FY1203000 12V 3A Interchangeable Power Adapter2. 100% full-load burning test
3.UL,CE,FCC,TUV,GS
4.Output voltage:DC12V 3a

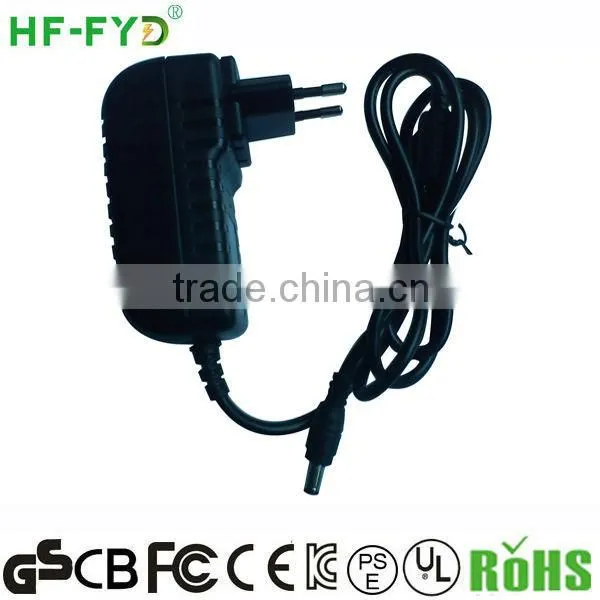

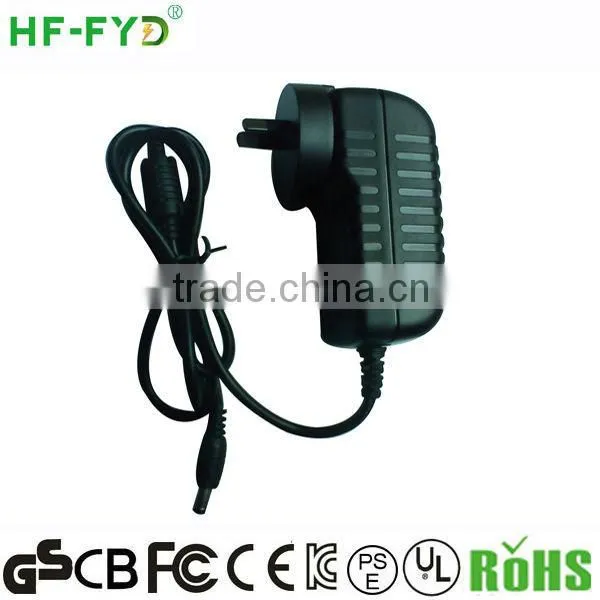

FY1203000 12V 3A Interchangeable Power Adapter
Dear Sir or Madam ,
This is Hera Cao .If you are interested at our products ,please kindly E-MAIL me or call me if you can .My mobile is 86 150 1363 3484
Looking forward to your any inquires !
Specification
1 Input voltage: AC 100-240V
2 Output voltage: DC 12V
3 Output current: 3A
Protection
1 Over voltage protection
2 Over current protection
3 Over load protection
4 Short circuit protection
Environment requirements
1 Operating temperature: -10-35 C Celcius
2 Storage temperature: -20--70 C Celcius
3 Storage humidity: 5%-90%
Advantage
1 Soft-start can reduce the AC input impact efficiency
2 Wiht short ciucuit and over load protection
3 Compact size, light weight
4 100% full-load burning test
AC Input Voltage.............96~264V AC 47~63 Hz
Inrush Current..............<50A(AC 240V at 25°C)
input Current Limiting..............<2.5A(under min AC input and full load)
Efficiency..............>80%
DC Voltage Regulation
DC Output Current
Output Ripple & Noise............120mVp-p@25 °C
Output Dynamic Load Response
Overshoot at turn-on/ turn-off.............<10%
SCP...........<0.1 ohms
OCPlimits..........10A
Hold up time...........>5mS(100Vac/47Hz),>10mS(110/220Vacc/50/60Hz)
Start up time..........<3S(100Vac/47Hz),<2S(110/220Vac/50/60Hz)
Working temp...........0°C~ 40°C
Storage temp Range..........-10°C~ +85°C
Working humidity..........25%~90% relative humidity (Non- condensing)
Storage humidity Range..........10%~90% relative humidity (Non- condensing)
MTBF............ 50K hours (25°C , Full load and rated voltage input)
Output voltage and current
Conduction and Eradiate
Output voltage and current:12V 5A(full load)
Input voltage:100V ac 60HZ
Circumstance:25C@75%RH
FY1203000 12V 3A Interchangeable Power Adapter
Dear Sir or Madam ,
This is Hera Cao .If you are interested at our products ,please kindly E-MAIL me or call me if you can .My mobile is 86 150 1363 3484
Looking forward to your any inquires !
