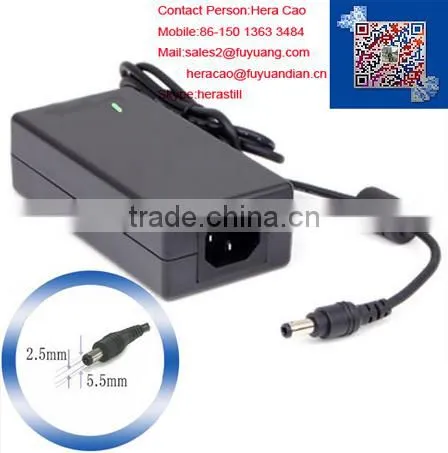

FY1204000 12V 4A Cctv Adapter

FY1204000 12V 4A Cctv Adapter thumbnail-1
FY1204000 12V 4A Cctv Adapter photo-1
US$ 2 - 6 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HF-FYD
Model Number:
FY1204000
Contact Supplier Request Quote Chat Now
Shenzhen Fuyuandian Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HF-FYD
Model Number FY1204000
Output Type DC
Connection Desktop

Specifications

1 FY1204000 12V 4A cctv adapter
2.100% full-load burning test
3.With CE,FCC,CCC,SAA,PSE,KC,CB,GS,C-TICKetc
4.High quality

FY1204000  12V 4A cctv adapter

Dear Sir or Madam ,



This is Hera Cao .If you are interested at our products ,please kindly E-MAIL me or call me if you can .My mobile is 86 150 1363 3484



Looking forward to your any inquires !



Application



Widely used in the cctv,electronic digital, communication, security, lighting, medical, etc.



Specification



Input Frequency 47-63Hz
Input Voltage AC 110V or AC240V
Operation Temperature 0°C ~ +40°C
Vibration Input Voltage Range AC95V-265V
Input Rated Current 0.4-0.6AMP
Storage humidity 5-90%RH
Efficiency >85%(TYP)
Output Current 4AMP
Output Voltage 12V
Overload Protection YES
Short Circuit Protection YES
Storage temperature -20°C ~ +80°C
Line Regulation <1%
Load Regulation <5%
Warranty 2 years



Description



1.All range voltage input.

2.High efficiency,low loss

3.Meet" European commission of energy"

4.Built in EMC/EMI filter.

5.You can choose the output voltage/current arbitrarily.

Electric performance

1.Output power(max):90-120W

2.Input voltage:90-264Vac

3.Input current(max):1.0A

4.Input frequency:47-63HZ

5.Depletion(no load):<0.3W min

6.Efficieny(max):85%

7.Output voltage:DC12V

8.Output current:4A

9.Short circuit protection:can continuous(auto recover)

Environmental and reliability

Operating temperature:0-40°C

Operating humidity:10-90%RH

Storage temperature:-20-+80°C

Storage humidity:5-90%RH

 FY1204000 12V 4A cctv adapter

Protection



1.Over current protection

2.Over power protection

3.Over voltage protection



Advantage


1.2 years warranty
2.100% frull-load burning test
3.With CE,FCC,RoHS,etc


After service


This product can be repair within one year for any defects or irregularities caused by the factory.



Remarks


Indooruse only
Usein dry environment
Donot open the charger if not professional person

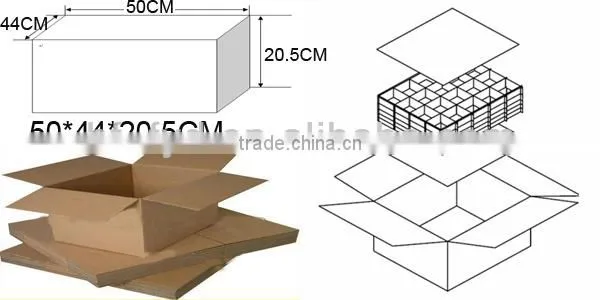

Packing



1.Inner package:PEbag,white box or as your demand
2.Outer package:Carton or according your requirement



AC Input



AC Input Voltage.............96~264V AC 47~63 Hz

Inrush Current..............<50A(AC 240V  at 25°C)

input Current Limiting..............<2.5A(under min AC input and full load)

Efficiency..............>80%



DC Output



DC Voltage Regulation



Parameter

Line Regulation

load Regulation

Cross Regulation

V1:12V

 ±5.0%

 ±5.0%

 N/A



DC Output Current



Parameter

Min Current

Rate Current

unit

V1:12V

 0.1

 4

A



Output Ripple & Noise............120mVp-p@25 °C



Output Dynamic Load Response



Dynamic Load

 DC Voltage Regulation

50%~100%~50%

 ±10%



Overshoot at turn-on/ turn-off.............<10%



Protection Function



SCP...........<0.1 ohms

OCPlimits..........8 A



Timing



Hold up time...........>5mS(100Vac/47Hz),>10mS(110/220Vacc/50/60Hz)

Start up time..........<3S(100Vac/47Hz),<2S(110/220Vac/50/60Hz)



Environment Requirement



Working temp...........0°C~ 40°C

Storage temp Range..........-10°C~ +85°C

Working humidity..........25%~90% relative humidity (Non- condensing)

Storage humidity Range..........10%~90% relative humidity (Non- condensing)

MTBF............ 50K hours (25°C , Full load and rated voltage input)

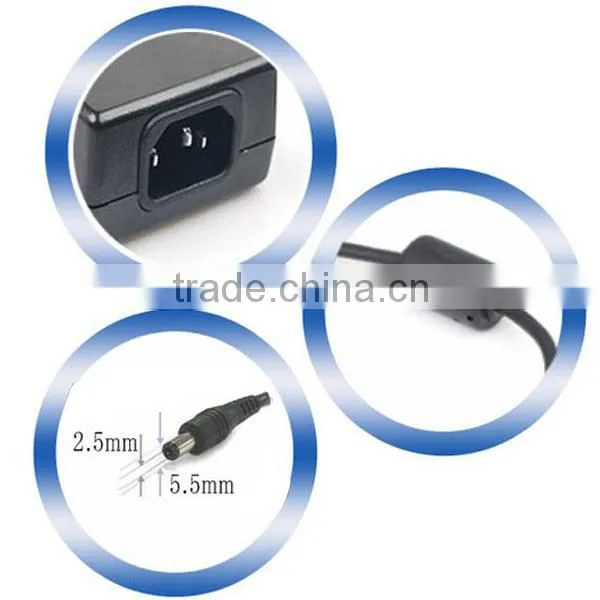

FY1204000 12V 4A cctv adapterFY1204000 12V 4A cctv adapter

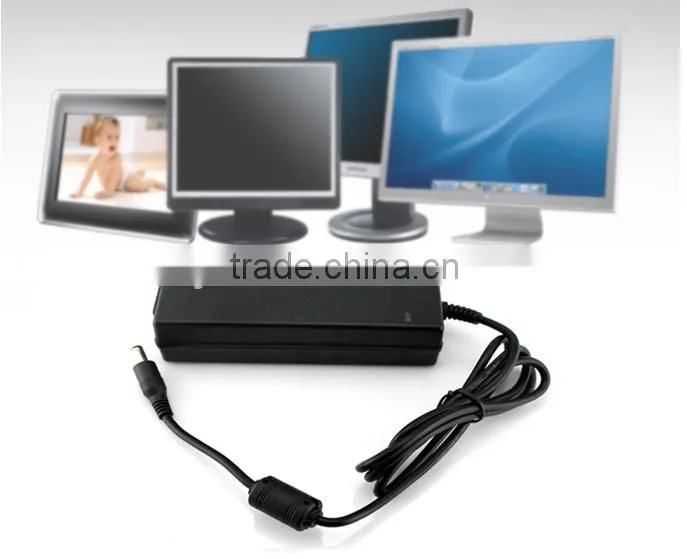

 FY1204000 12V 4A cctv adapter

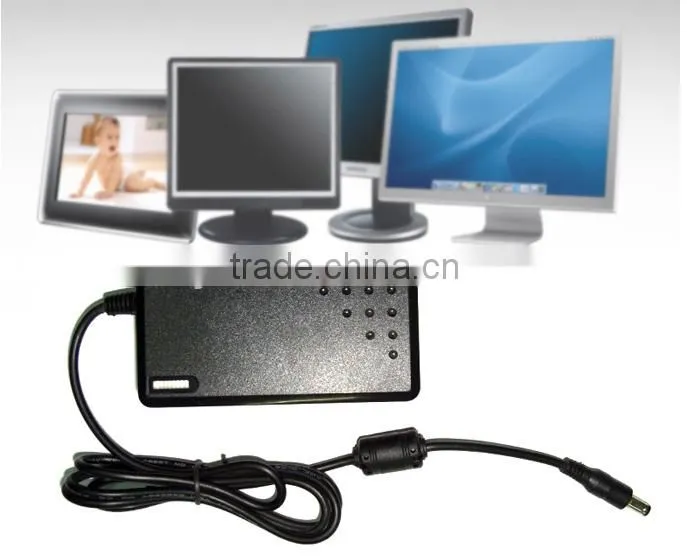

FY1204000 12V 4A cctv adapter

FY1204000 12V 4A cctv adapter

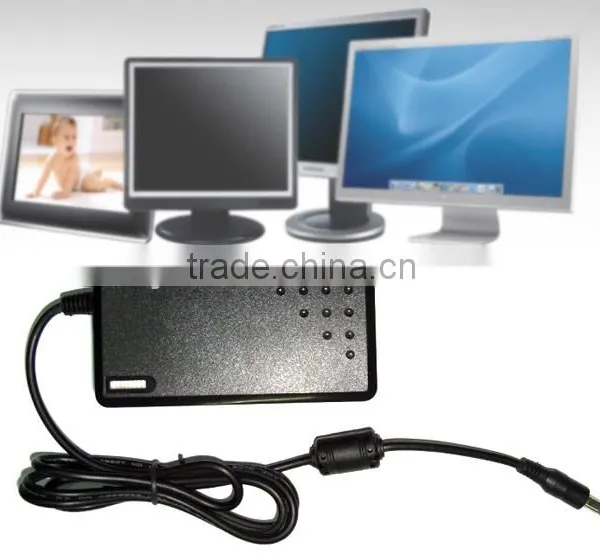

FY1204000 12V 4A adapter for LCD advertising player



Dear Sir or Madam ,







This is Hera Cao .If you are interested at our products ,please kindly E-MAIL me or call me if you can .My mobile is 86 150 1363 3484







Looking forward to your any inquires !
