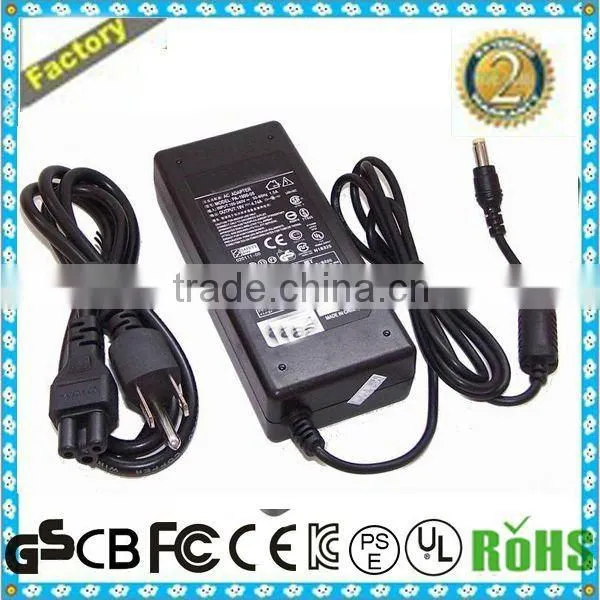

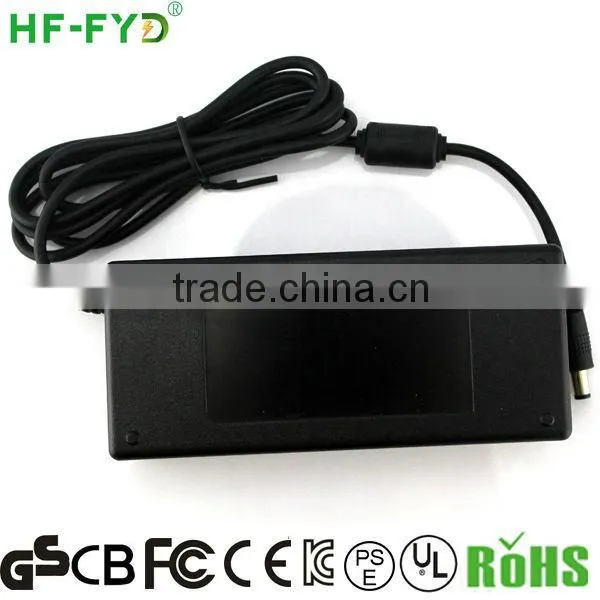

Smps 24v 3a

Smps 24v 3a thumbnail-1
Smps 24v 3a photo-1
US$ 1 - 10 MOQ: 300 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HF-FYD
Model Number:
FY2403000
Contact Supplier Request Quote Chat Now
Shenzhen Fuyuandian Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HF-FYD
Model Number FY2403000
Output Power 1 - 50W
Output Type Single
Input Voltage 110V
Output Voltage 24V
Output Frequency 43-67HZ
Output Current 3A

Specifications

1 smps 24v 3a
2. 100% full-load burning tests
3. UL,CE,FCC
4. Input votlage:AC110-240v

 smps 24v 3a


Specification



1 Input voltage: AC 100-240V

2 Output voltage: DC 24V

3 Output current: 3A



Protection



1 Over voltage protection

2 Over current protection

3 Over load protection

4 Short circuit protection



Environment requirements



1 Operating temperature: -10-35  C Celcius

2 Storage temperature: -20--70  C Celcius

3 Storage humidity: 5%-90%



Advantage



1 Soft-start can reduce the AC input impact efficiency

2 Wiht short ciucuit and over load protection

3 Compact size, light weight

4 100% full-load burning test



AC Input

AC Input Voltage.............90~264V AC 47~63 Hz

Inrush Current..............<50A(AC 240V  at 25°C)

input Current Limiting..............<2.5A(under min AC input and full load)

Efficiency..............>80%



DC Output

DC Voltage Regulation

Parameter

Line Regulation

load Regulation

Cross Regulation

V1:24V

 ±5.0%

 ±5.0%

 N/A



DC Output Current

Parameter

Min Current

Rate Current

unit

V1:24V

 0.1

 3.0

A



Output Ripple & Noise............240mVp-p@25 °C



Output Dynamic Load Response

Dynamic Load

 DC Voltage Regulation

50%~100%~50%

 ±10%



Overshoot at turn-on/ turn-off.............<10%



Protection Function

SCP...........<0.1 ohms

OCPlimits..........8A



Working temp...........0°C~ 40°C

Storage temp Range..........-10°C~ +85°C

Working humidity..........25%~90% relative humidity (Non- condensing)

Storage humidity Range..........10%~90% relative humidity (Non- condensing)

MTBF............ 50K hours (25°C , Full load and rated voltage input)





Product Size(Unit:cm) :133*50*31((L*W*H)



smps 24v 3a

smps 24v 3a

smps 24v 3a

smps 24v 3a
