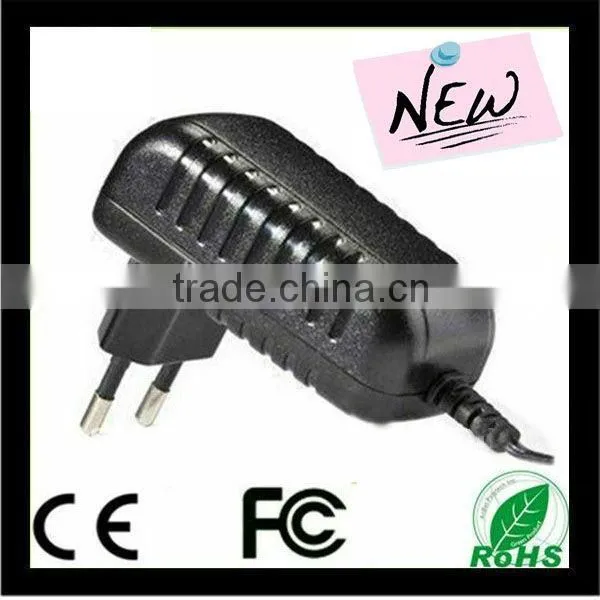

FY1202500 ac dc Adapter 110 - 240v to 12v 2.5a

FY1202500 ac dc Adapter 110 - 240v to 12v 2.5a thumbnail-1
FY1202500 ac dc Adapter 110 - 240v to 12v 2.5a photo-1
US$ 1 - 10 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HF-FYD
Model Number:
FY1202500
Contact Supplier Request Quote Chat Now
Shenzhen Fuyuandian Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HF-FYD
Model Number FY1202500
Output Type AC
Connection Desktop

Specifications

1 FY1202500 ac dc adapter 110 - 240v to 12v 2.5a
2.I/P:AC110-240V
3.100% full-load burning test
4.2 years

 FY1202500 ac dc adapter 110 - 240v to 12v 2.5a



Dear Sir or Madam ,







This is Hera Cao .If you are interested at our products ,please kindly E-MAIL me or call me if you can .My mobile is 86 150 1363 3484







Looking forward to your any inquires !



Description



Output max power:5-120W

 All range voltage input

High efficiency,low loss

European commission of energy

Built in EMC/EMI filter

You can chose the output voltage/current arbitrarily

Main application in polymer, lithium iron phosphate, iron manganese etc of lithium battery.



Electric performance



Input voltage:AC 110-240V

Output voltage:DC 12V

Output current:2.5A

Input current(max):0.36A

Input frequency:47-63HZ

Depletion(no load):<0.3W min

Efficiency(max):85%



Protection



Over current protection

Over power protection

Over voltage protection



Environmental and reliability



Operating temperature:0-40C

Operating humidity:10-90%RH

Storage temperature:-20-+80C

Storage humidity:5-90%RH

Leakage current:0.25mA max



Features:



Using advanced and reliable switching power supply circuit,  with EMC, EMI anti-interference circuit, with over voltage, over current short circuit multiple protection function, output ripple is small, Little power consumption, low calorific value, For four hours strictly 100% aging, quality is guaranteed.



Application:



Small volume, easy to carry purpose: it is used for LED lights, network peripheral equipment, web server, digital photo frame; the security products (monitor head. Monitor.) the communication products (telephone, HUB, router), electronic games, etc



AC Input



AC Input Voltage.............100~240V AC 47~63 Hz

Inrush Current..............<30A(AC 240V  at 25°C)

input Current Limiting..............<2.5A(under min AC input and full load)

Efficiency..............>80%



DC Output



DC Voltage Regulation



Parameter

Line Regulation

load Regulation

Cross Regulation

V1:12V

 ±5.0%

 ±5.0%

 N/A



DC Output Current



Parameter

Min Current

Rate Current

unit

V1:12V

 0.1

2.5

A



Output Ripple & Noise.............180mVp-p@ 25 degrees C

Output Dynamic Load Response



Dynamic Load

 DC Voltage Regulation



50%~100%~50%

 ±10%

Overshoot at turn-on/ turn-off.............<10%



Protection Function



SCP...........<0.1 ohms

OCPlimits........2A



Timing



Hold up time...........>5mS(100Vac/47Hz),>10mS(110/220Vacc/50/60Hz)

Start up time..........<3S(100Vac/47Hz),<2S(110/220Vac/50/60Hz)



Environment Requirement



Working temp...........0°C~ 40°C

Storage temp Range..........-10°C~ +85°C

Working humidity..........25%~90% relative humidity (Non- condensing)

Storage humidity Range..........10%~90% relative humidity (Non- condensing)

MTBF............ 50K hours (25°C , Full load and rated voltage input)



Product Safety Requirement



Standards............Meet IEC60950-1standard requirement

Leakage Current.............not exceed 0.25mA at 220Vac/50Hz

Insulation Resistance...........≥50MΩ ,500VDC



Dielectric Strength Testing



100%Hi-pot  test



Item

Specification

Remark

 Primary to Secondary

1.5KVac

<5mA

No arcing

No broken

  Primary to P.G

N/A

N/A




FY1202500 ac dc adapter 110 - 240v to 12v 2.5a



Caution



1.Risk of electric shock dry location use only

2.Do not open the adapter if not professional person.



Usaged guide



1.Insert the AC adapter prongs fully into the wall outlet.

2.Remove the AC adapter from the wall outlet when it it fully charged or not in use .



After service



This product can be repair within one year for any defects or irregularities caused by the factory.



FY1202500 ac dc adapter 110 - 240v to 12v 2.5aFY1202500 ac dc adapter 110 - 240v to 12v 2.5a

FY1202500 ac dc adapter 110 - 240v to 12v 2.5a

 FY1202500 ac dc adapter 110 - 240v to 12v 2.5a



Dear Sir or Madam ,



This is Hera Cao .If you are interested at our products ,please kindly E-MAIL me or call me if you can .My mobile is 86 150 1363 3484



Looking forward to your any inquires !
