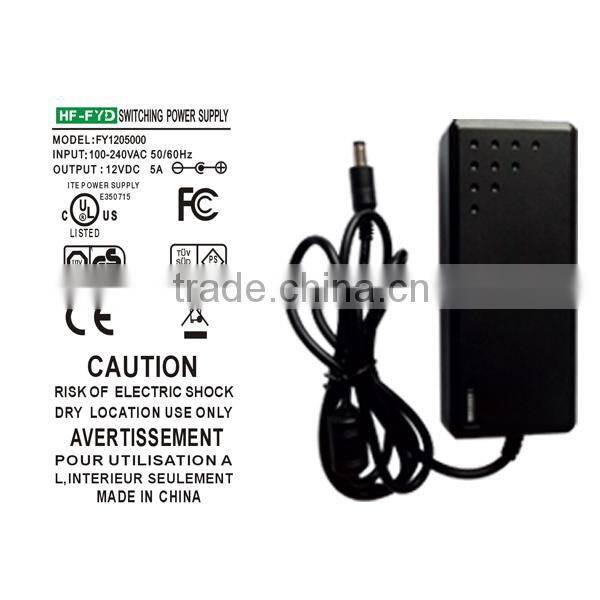

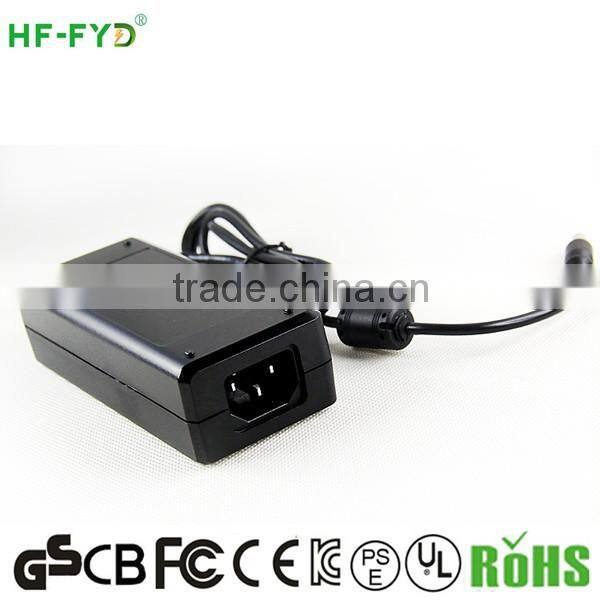

HF-FYD FY1205000 12V 5A Universal Power Adapter With UL1310 Certificate

Name: HF-FYD FY1205000 12V 5A Universal Power Adapter With UL1310 Certificate
Brand: HF-FYD
Availability: InStock

FOB Price

US$ 3 - 6.8 / Piece

5000 Pieces(Min. Order)

Port shezhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	HF-FYD
Model Number	FY1205000	Usage	Laptop
Output Type	DC	Connection	Desktop

Product Description

HF-FYD FYD1205000 12V 5A universal power adapter with UL1310 certificate

Application

Widely used in the electronic digital, communication, security, lighting, medical, led lighting, led display, etc

Electric Performance

v Power:60W

v Model:FY1205000

v Input voltage: AC 110-240V

v Universal input voltage

v Frequency: 47-63HZ

v Output voltage:DC 12V

v Output current:5A

v Color:Black or white

v Certification:CE,UL,SAA,CB,FCC,GS,KC,PSE,etc

v 2years warranty

v High quality,competitive price

v Punctual and Fast delivery

v Efficiency:85%

Input voltage

Minimum	Nominal	Maximum
100Vac	110Vac/220Vac	240Vac

Input Frequency

Minimum	Nominal	Maximum
47Hz	50Hz/60Hz	63Hz

Input Current Limiting

The input current should be less than 2.5A, under minimum AC input and full load.

Efficiency

The power supply efficiency shall be greater than 80% under rated input voltage. It will be measured at the typical load and maximum load.

DC Voltage Regulation

Parameter	Line Regulation	Load regulation	Cross regulation
V1:12V	±5.0%	±5.0%	N/A

DC Output Current

Parameter	Min Current	Rate Current	Max Current	Unit
V1:12V	0.1	5A	-	A

Output Ripple and Noise

Parameter

Max.

V1:12V

120mVp-p@25 degrees C

Dielectric Strength Testing

Item

Specification

Remark

Primary to Secondary

1.5KVac

<5mA

No arcing

No broken

Primary to P.G

N/A

Overshoot at turn-on/ turn-off

Any overshoot at turn on or turn off shall be less than 150% of rated output voltage.

Over Current Protection

The power supply shall meet the limitation requirement as below table without any damage, the unit shall recover and function automatically after the protection is removed.

Over Current Protection limits

Parameter	Max	Unit
V1:12.0V	7.5	A

Protection

² Over-voltage protection: 120%min

² Over-current protection: 120%min

² Short-circuit protection: automatic recovery

² over protection

² Load regulation: ±5%

Standard

Meet IEC60950-1 (information technology and similar electric apparatus -safety requirement) standard requirement.

Factory show:

Aging machine:

Production line:

wave soldering machie:

Welcome to your inquiry ,any questions feel free let me know !
