12V 5A 24V 2A switching power supply circuit

Specification

    Output power 120W

      Output vlotage:24V

      Output current: 2A

      Input voltage  100~240V

      Input current 1.0A

      Input frequency  47-63Hz

      Depletion   <0.3W min

      Efficiency  85%

Description

l       Output 120W

l       All range voltage input

l       High efficiency , low loss .

l       Meet “European commission of energy”

l       Built in EMC/EMI filter

l       You can choose the output voltage/current arbitrarily.

l       Mainly used in APPLE, BENQ, SONY, TOSHIBA, MITAC, LENOVO, IBM, FUJITSU, HP, DELL, ASUS, ACER, SAMSUNG

Environmental and reliability

l       Oprating temperature  0~40°C

l       Oprating humidity  10~90%RH

l       Storage temperature   -20~+80°C

l       Storage humidity   5~90%RH

l       Leakage current   0.25mA max

l       Withstanding voltage  3000Vac 1 minute 10mA max

l       Burn-in  100% full load,40±5°C,4Hrs

AC Input Voltage.............90~264V AC 47~63 Hz

Inrush Current..............<50A(AC 240V  at 25°C)

input Current Limiting..............<2.5A(under min AC input and full load)

Efficiency..............>80%

DC Voltage Regulation

DC Output Current

Output Ripple & Noise............120mVp-p@25 °C

Output Dynamic Load Response

Overshoot at turn-on/ turn-off.............<10%

SCP...........<0.1 ohms

OCPlimits..........10A

Hold up time...........>5mS(100Vac/47Hz),>10mS(110/220Vacc/50/60Hz)

Start up time..........<3S(100Vac/47Hz),<2S(110/220Vac/50/60Hz)

Working temp...........0°C~ 40°C

Storage temp Range..........-10°C~ +85°C

Working humidity..........25%~90% relative humidity (Non- condensing)

Storage humidity Range..........10%~90% relative humidity (Non- condensing)

MTBF............ 50K hours (25°C , Full load and rated voltage input)

Packing

1.Inner package:PE bag,white box, color box or blister package

2.Outer package:Carton or as your demand

3.50PCS/CT or as your demand

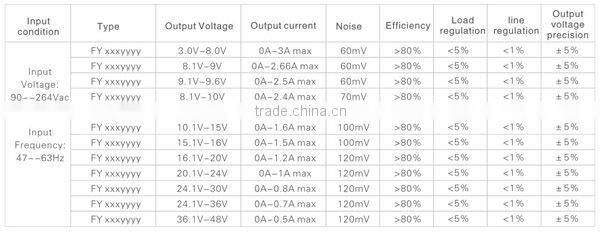

Output voltage and current

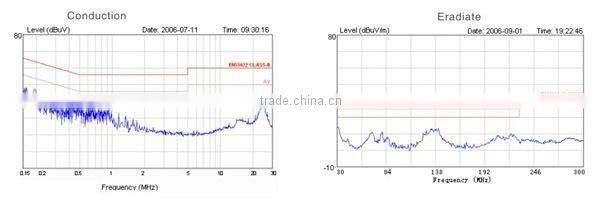

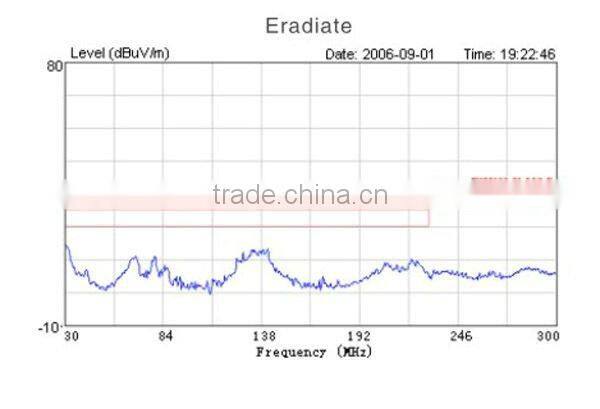

Conduction and Eradiate

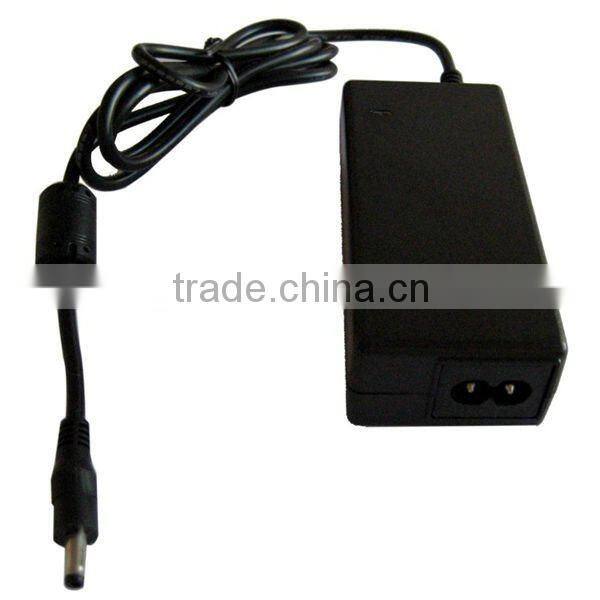

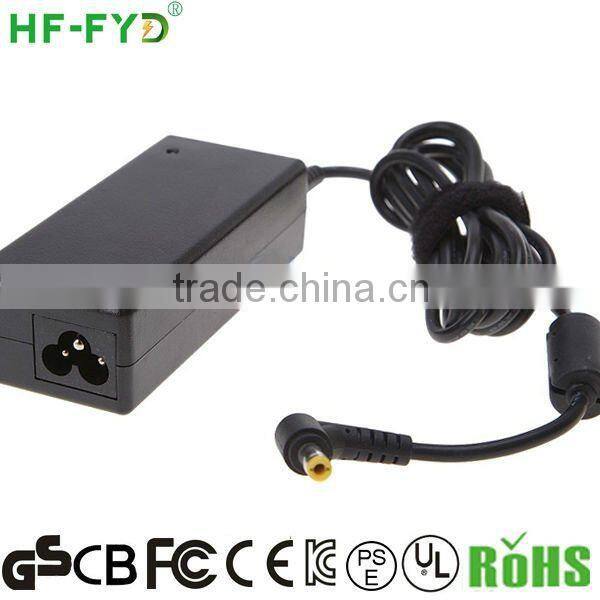

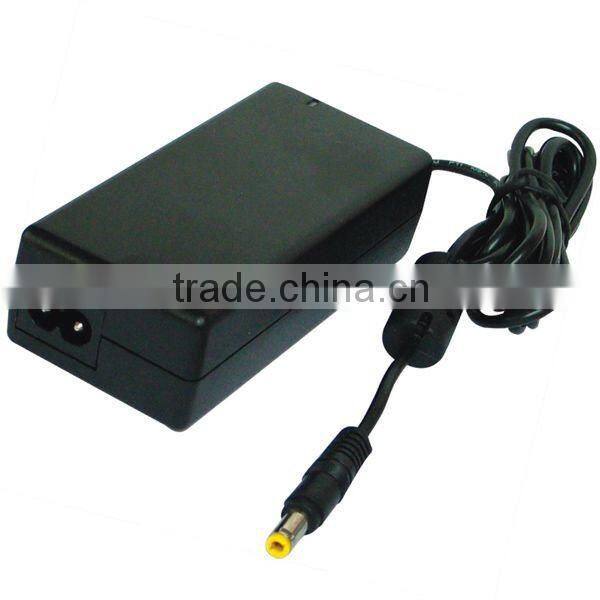

Details for the adapter
