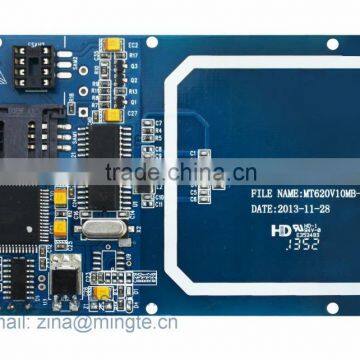

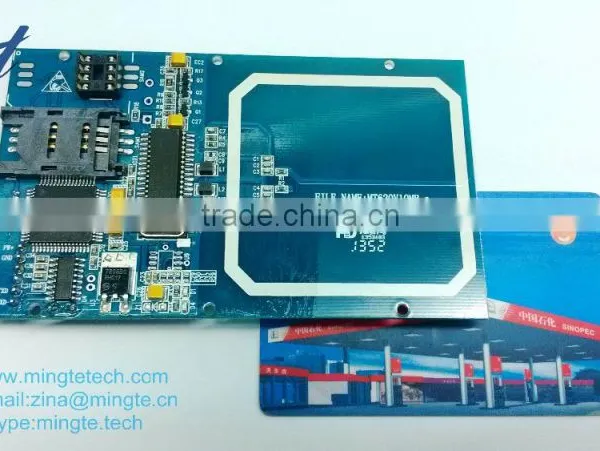

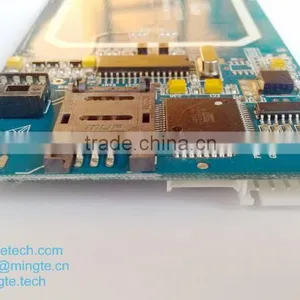

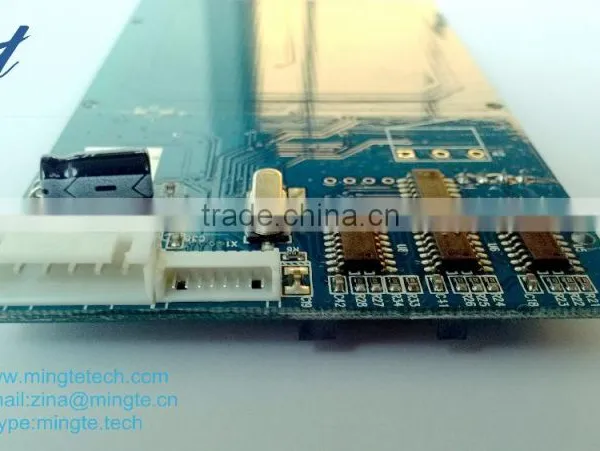

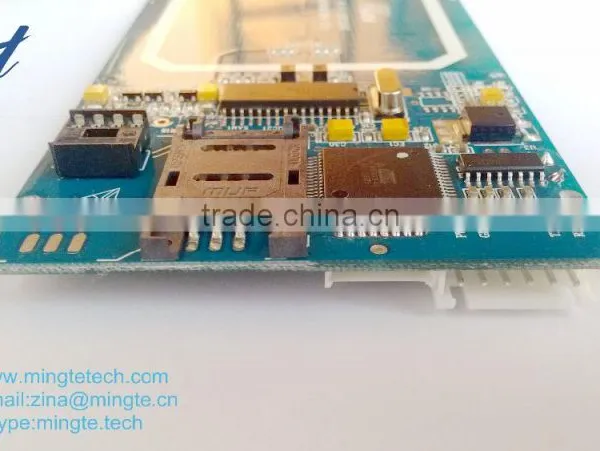

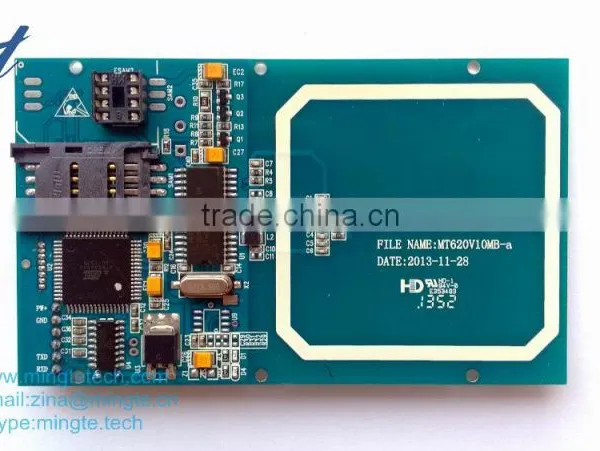

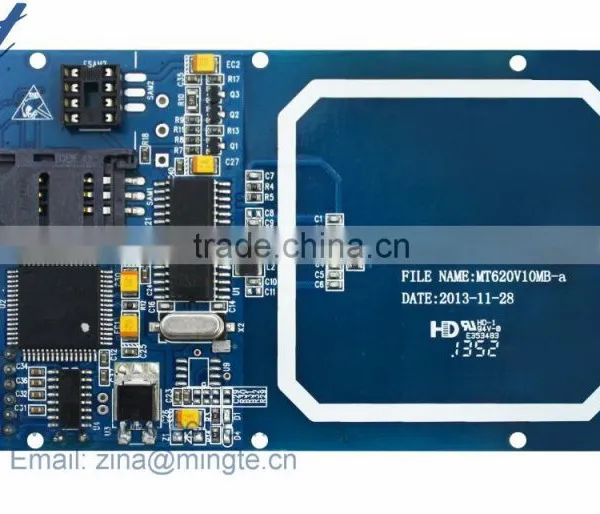

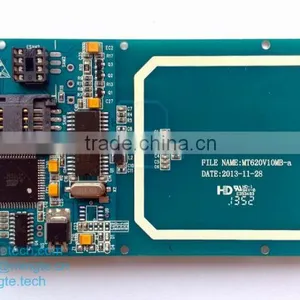

4-8cm Short Distance/range Rfid Reader for Contactless ic Card MT318-620
- Shen zhen/Guang zhou/Hong kong
- Credit Card
You May Like
-
4-8cm Short Distance/range Rfid Reader for Contactless ic Card MT318-625
-
4-8cm Short Distance/range Rfid Reader for Contactless ic Card MT318-626
-
4-8cm Short Distance/range Rfid Reader for Contactless ic Card MT318-628
-
4-8cm Short Distance/range Rfid Reader for Contactless ic Card MT318-622
-
ATM Vending Kiosk Self-service Machine Contactless Card Board Module for Mifare RFID Card MT318-620
-
ATM Vending Kiosk Self-service Machine Contactless Card Board Module for Mifare RFID Card MT318-622
Product Details
| Place of Origin | Guangdong, China | Brand Name | MT | |
| Model Number | MT318-620 |
Product Description
Features
1: Support contactless IC card (ISO14443 TYPE A & B)
2: Support PSAM & ESAM card (ISO7816), optional PSAM and ESAM
3: Supplied with 2 card slots (PSAM or ESAM)

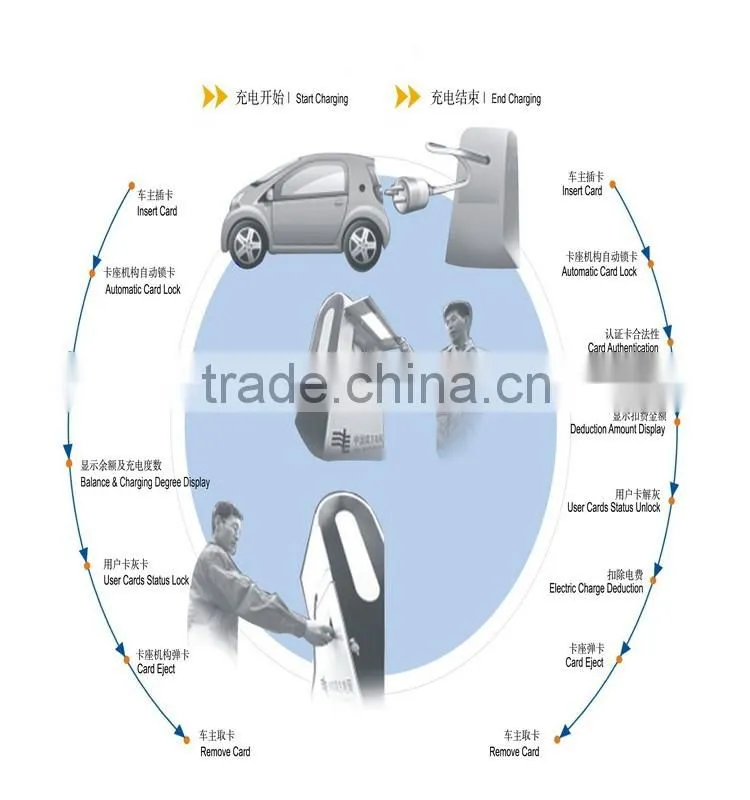

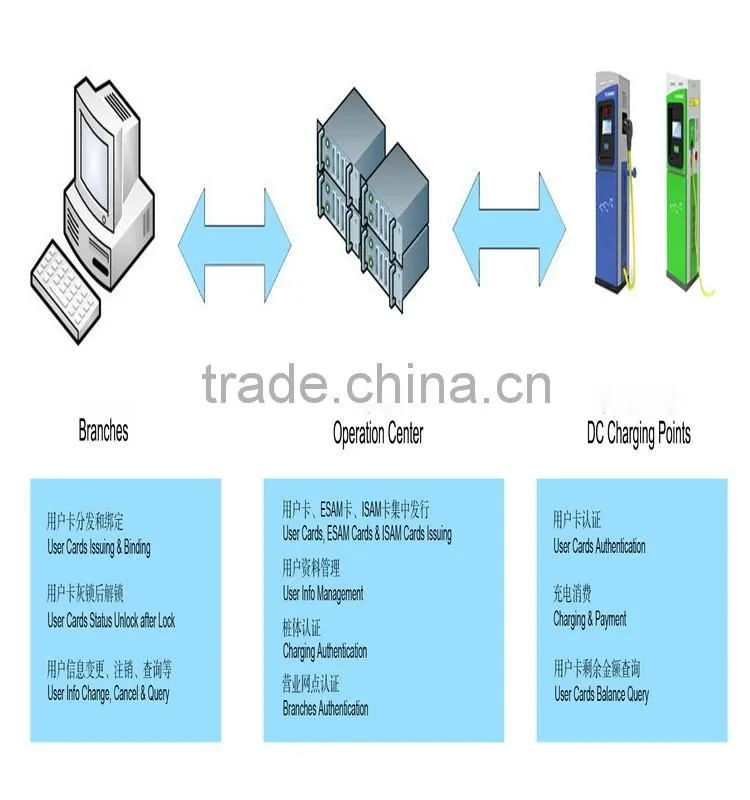

4: Customized for compatible with application flow of charging points from China Southern Power Grid or State Grid
5: Various corresponding and custom design
6: Software updated via RS232 supported
Applications

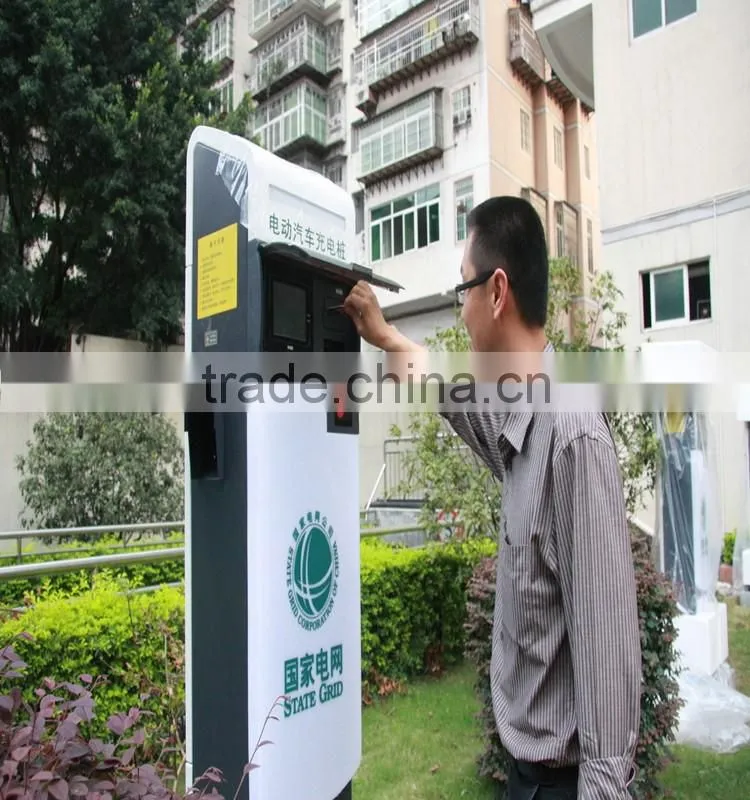

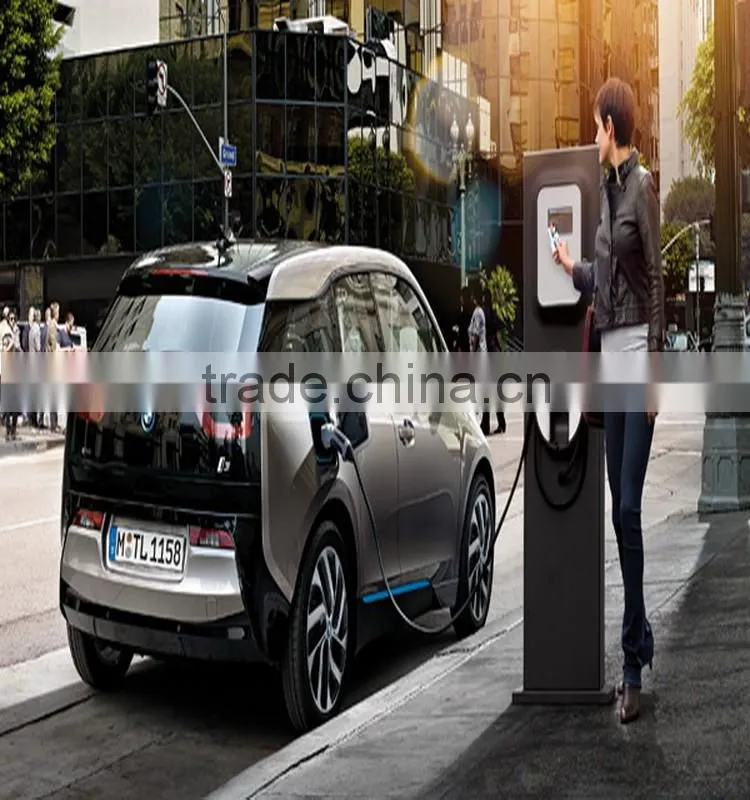

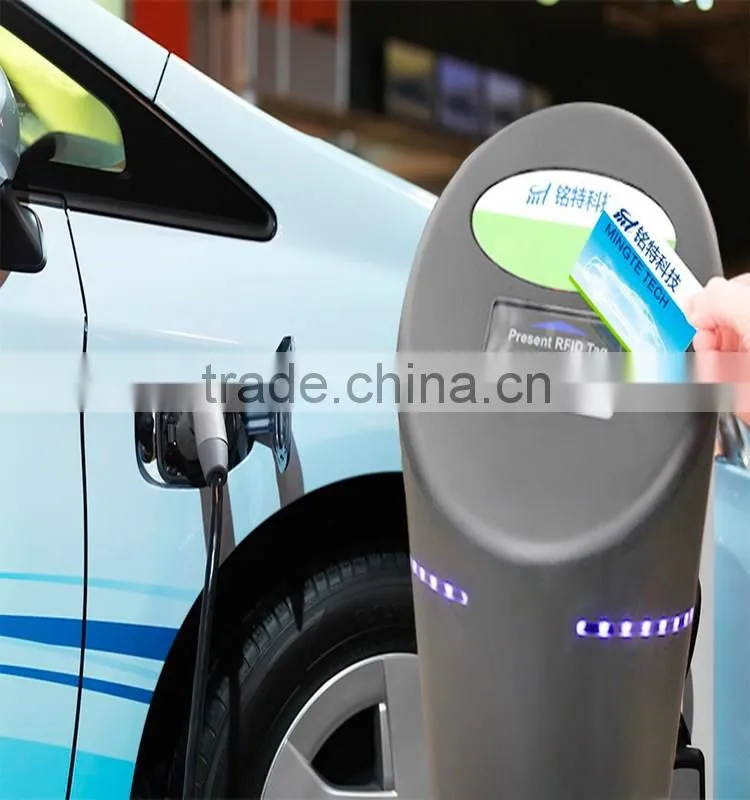

1:Electric Vehicle Charging Points/Piles & Stations, Fuel Dispensers, CNG Dispensers
2:ATMs, Kiosk Terminals, Payment Systems, Vending Machines, Gaming Machines, Parking Systems
3:POS Terminals, ID Terminals, Security and Access Control Terminals, Credit Authorization Terminals
Specifications(R: Read only, R/W: Read & Write)
CATEGORY | Contactless | |
CARD TYPE | Contactless IC Cards SIM Cards, PSAM Cards, ESAM Cards | |
CONTACTLESS CARD | ISO14443 Type A & B &Mifare | R/W |
IC CARD | SIM/PSAM/ESAM | R/W |
EMV | Level 1 Compliant | |
CARD READING DISTANCE | 4-8cm(Related to cards) | |
INTERFACE | RS-232 | |
POWER SUPPLY | DC9-18V ± 5% | |
CURRENT | Current: ≤60mA(12V) Max: ≤150mA(12V) | |
WORKING TEMPERATURE | -40-+65°C | |
WEIGHT | Approx 32g | |
Established in 2005, Shenzhen Mingte Tech Co., Ltd. is a leading and professional worldwide provider for Smart Card Readers, Card Collectors & Dispensers and Banknote Validators. Specializing in design, development, sales and manufacturing of Smart Card Readers, Card Collectors & Dispensers and Banknote Validators, MINGTE provides OEM and complete custom payment solution for every imaginable applications, including ATMs, CDMs, Kiosk Terminals, Payment Systems, Vending Machines, Fuel Dispensers, Gaming Machines, Electric Vehicle Charging Piles, POS Terminals, other ID Terminals, Parking Meters, Security & Access Control Terminals and Credit Authorization Terminals etc.
MINGTE offers a full line of Smart Card Readers, Bill Acceptors and Card Collectors & Dispensers with a variety of manual dip, manual swipe, motorized, standalone, contactless, mobile payment types and single feed bill acceptors. With 2 factories located in Shenzhen, China and experienced team in payment industry, MINGTE has a creative talent pool in both engineering and management. In its engineering team, more than 85% employees have almost 10 years’ experience in the field of smart card payment.
MINGTE has obtained various patents relating to smart card reader technologies, and passed various quality inspection tests from China Bank Card Test Center, EMV Consortium, and China Ministry of Information Industry.
Certificates:
Exhibitions:
MINGTE willing to show the perfect quality and reasonable price to all over the world, and that we participated in exhibitions for years, such as: Cards&Payments Middle East, IFA in German, TRUSTECH CARTES in France, Vend EXPO in Russia etc.
IN DUBAI IN FRANCE IN INDIA
Our Sales & After-sales Service:
1. MINGTE provide one-to-one custom solutions to overseas market with OEM&ODM;
2. Quality Assurance: We focus on every product in the factory strictly quality controlled;
3. Professional sales engineers stand by 24 hours waiting to serve you;
4. Material checking: strictly control of material, meet international requirement standards;
5. Semi-finished products inspection: product inspection before 100% finished;
6. Production line test: professional work team and engineer to run three times tests;
7.Finished product inspection: quality and property test before products are packed.
Payment & Shipping Service:
1. We accept Alipay, Western Union, TT, all major credit cards are accepted through secure payment processor ESCROW;
2. Shipping methods: Air, Sea, Express (DHL, FedEx, UPS, EMS, TNT and so on);
3. EXPRESS: around 3-7 working days to arrive;
4. INTERNATIONAL AIR MAIL: usually around 2-4 days to arrive, will also depend on which destination port;
5. By sea: depend on which destination port.
Please contact our sales for additional info.
