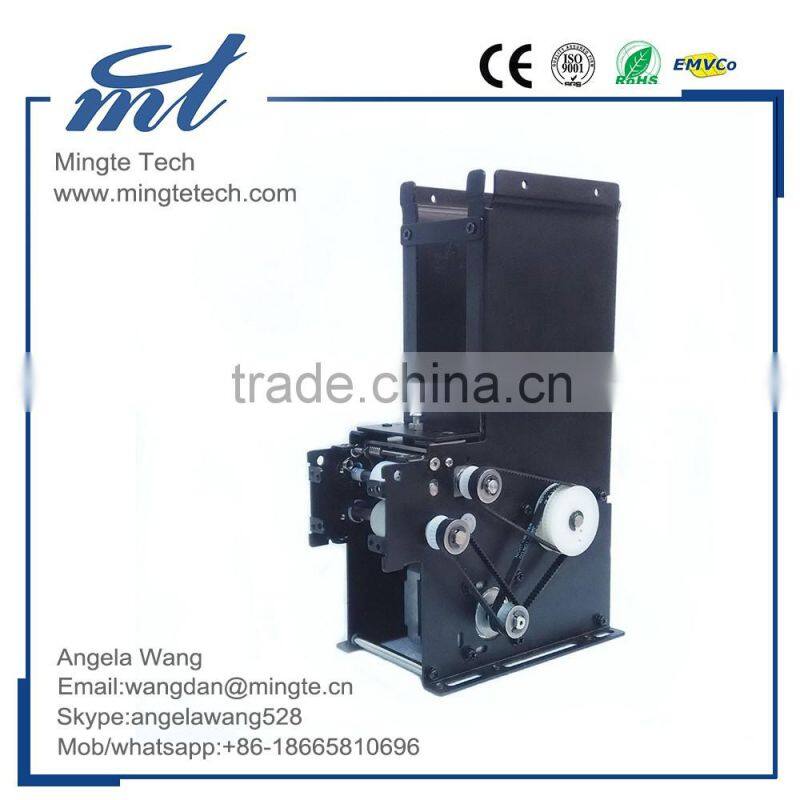

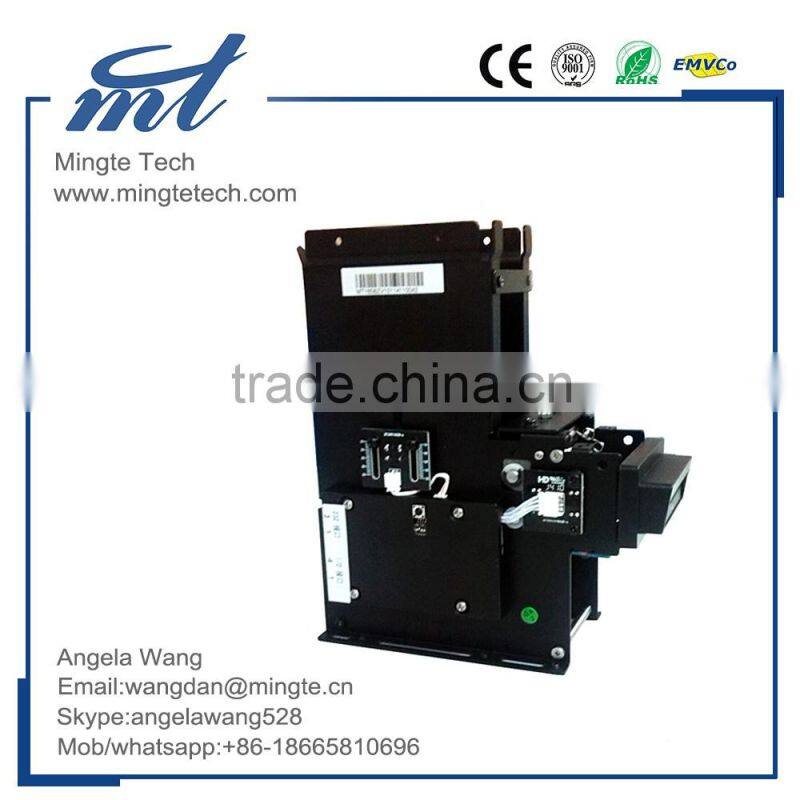

Ticket Vending System Card Dispenser for Kiosk Vending Machine
- Shenzhen/HongKong
- T/T Money Gram Credit Card
You May Like
-
Card Issuing Machine With Hopper Automatic Loan-application Read Write IC and RFIDcard RS232 Interface With Extention
-
Automatic Vending and Ticket Vending Card Dispenser and Issuing Machine
-
DC24V Highway Card Dispenser Card Issuing for Highway System
-
Highway Card Dispenser With Card Reading Writing Function
-
Kiosk Card Collector Machine MT163 Support Write and Read Smart Type A & B & Mifare Cards
-
Card Dispenser or Ticket Dispenser Automatic Card Issuing for Car Parking System
Product Details
| Place of Origin | Guangdong, China | Brand Name | MT | |
| Model Number | MT165 |
Product Description
Features
Compact, high reliability and durability
Support contactless IC card (ISO14443 TYPE A & B)-optional
Support S50 & S70 (Mifare) card (ISO14443 TYPE A & B) -optional
Customized, with stepper motors
Designed with shutter, dust and water proof
Adjustable card thickness
Extension stackable cards hopper capacity: 180pcs (card thickness: 0.8mm)
With card-low indication
With multi bezel (optional)
Variousinterface and custom design
Applications
ATMs, CDMs, Kiosk Terminals, Payment Systems, Vending Machines, Gaming Machines, Parking Systems
ID Terminals, Security and Access Control Terminals, Credit Authorization Terminals
Specifications(R: Read only, R/W: Read & Write)
CATEGORY | Card Dispensers | |
CARD TYPE | Contactless IC Cards(Optional) | |
CARD SPECIFICATIONS | Size: 54x86mm Thickness: 0.3-2.0mm | |
CONTACTLESS CARD | ISO14443 Type A & B & Mifare | R/W |
CARD DISPENSING SPEED | >1pcs/s | |
CARD HOPPER CAPACITY | 180pcs | |
LIFETIME | >2000000 Cycles | |
INTERFACE | RS-232/I/O TTL | |
POWER SUPPLY | DC 24V ± 5% | |
CURRENT | Max Current: 2A(24V) | |
WORKING TEMPERATURE | -40-+65°C | |
WEIGHT | Approx 1370g | |
REMARK | With shutter &multi bezel(optional) | |
