Specifications
Our pyrolysis plant can do itExtract high value oil from scrap rubber, waste tires and waste plastic
No pollution
Working process:
Firstly, the raw material is put into furnace,then seal the feed inlet system.
Secondly, burned the fuel material(coal,or wood,or natural gas ,oil ) in the combustion system. The reactor will slowly heat ,when the temperature reach around 250 degree celsius,it will produce oil gas, oil gas will be processed by our technology ,then gone to cooling system to cold liquid oil. The gas which can not be liquid under normal pressure ,which will be desinged to back to combustion system to instead the fuel material to burn the reactor .which can save energy very much. After finished oil produce ,the temperation of reacor will be down ,in same time ,carbon black will be discharged automatically.
Lastly, when the temperature fall to 100 degree celsius,worker could opened the door of reactor to discharge of steel wire, then can start to another batch working.
Features of automatic welding machine
Reactor directly decides the machine's safety and service life. It is made by welded steel plate. So the quality of welding will have a direct impact on safety and service life. Therefore, we use automatic welding machine, X rays detection and heating treatment which will not only guarantee the quality of welding but also greatly improve working efficiency.

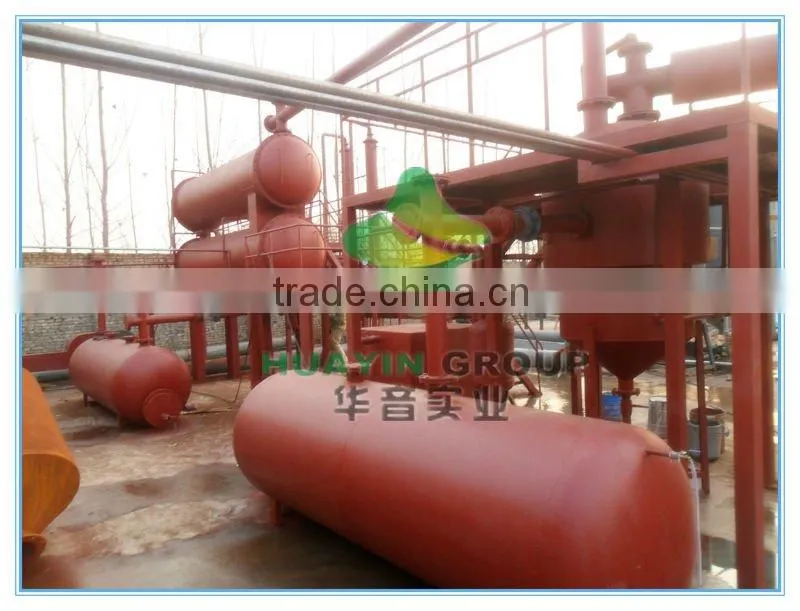

Cooling system
Cooling systems decides oil output. There are two steps for cooling. Cooling pipe is the first step. The second is condenser. We have three condensers. And there are 57 pipes in one condenser. Diameter is 48mm for one small pipe. The heat exchanging area is about 13square meters for one condenser. So the total cooling area is about 40 square meters, which will guarantee you a high oil yield.
