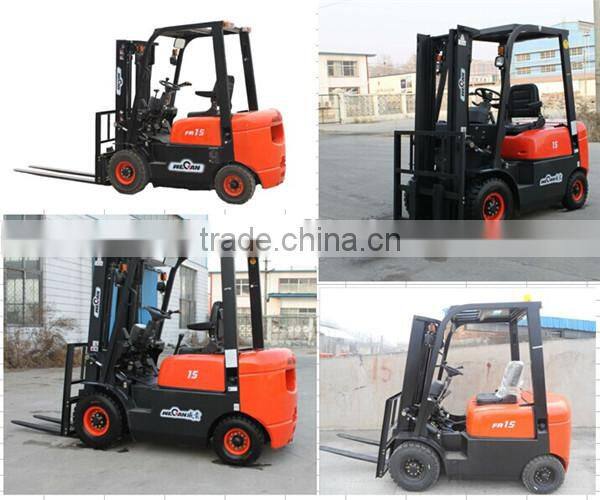

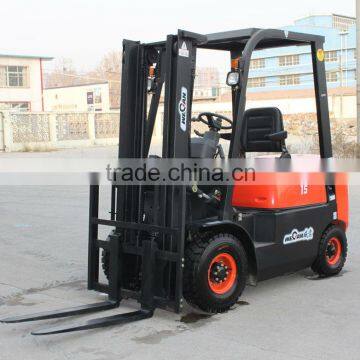

CE Approved Diesel Forklift for Sale

MODEL

CPC15FR

CPCD15FR

Load capacity

1500 kg

Load center

500 mm

Power type

Diesel

Max. lifting speeds(with load)

500 mm/s

Max. driving speeds(with/without load)

14.5-15 km/h

Max towering (with load)

14.4/8.4 kn

Grade ability(with load)

15/20%

Lifting height

3000 mm

Free lift

70 mm

Tilting angles(forward-backward)

6°/12°

Min. turning radius

2000 mm

Min. Right angle aisle width

1770 mm

Min. under-clearance

110 mm

Dimensions

Overall length(including fork)

3195 mm

Overall width

1085 mm

Overall height(mast lowered)

1995 mm

Overall height(mast extended)

4030 mm

Overall height to overhead guard

2085 mm

Fork overhang

430 mm

Wheel base

1450 mm

Tread

Front tread

890 mm

Rear tread

920 mm

Tire

Front tire

6.50-10-10

Rear tire

5.00-8-10

Total weight

2650 kg

Fork width

100 mm

Fork thickness

35 mm

Backrest height

1000 mm

Fork length

920 mm

Engine

Engine model

485

Rated power

30kw

Rotate speed at rated power

2600 rpm

Max. Torque

131 nm

Rotate speed at max. Torque

1700 rpm

Type of power shift

Clutch

Tor-con

Packing details

5PCS/20’CNT

10PCS/40’CNT
